Anchor Audio 915470 Bigfoot 2 System X4 - Anchor-Air / 4x Collar Wireless Microphones
1x Anchor Audio BIG2-XU4 - Bigfoot 2 Series Sound Systems
The Anchor Audio BIG2-XU4 Bigfoot 2 Series sound systems provide you with an array of easy to use portable sound systems and microphone kits. These speakers are perfect for portable sound and voice amplification during indoor/outdoor events, weddings, house of worship, large auditoriums, parades, and community celebrations.
4x Anchor Audio CM-LINK Collar Microphone
The CM-LINK is a collar microphone element that can be easily hidden underneath a collared shirt. It has a flexible design for microphone angle adjustment. The collar microphone has a 3.5 mm connector plug.

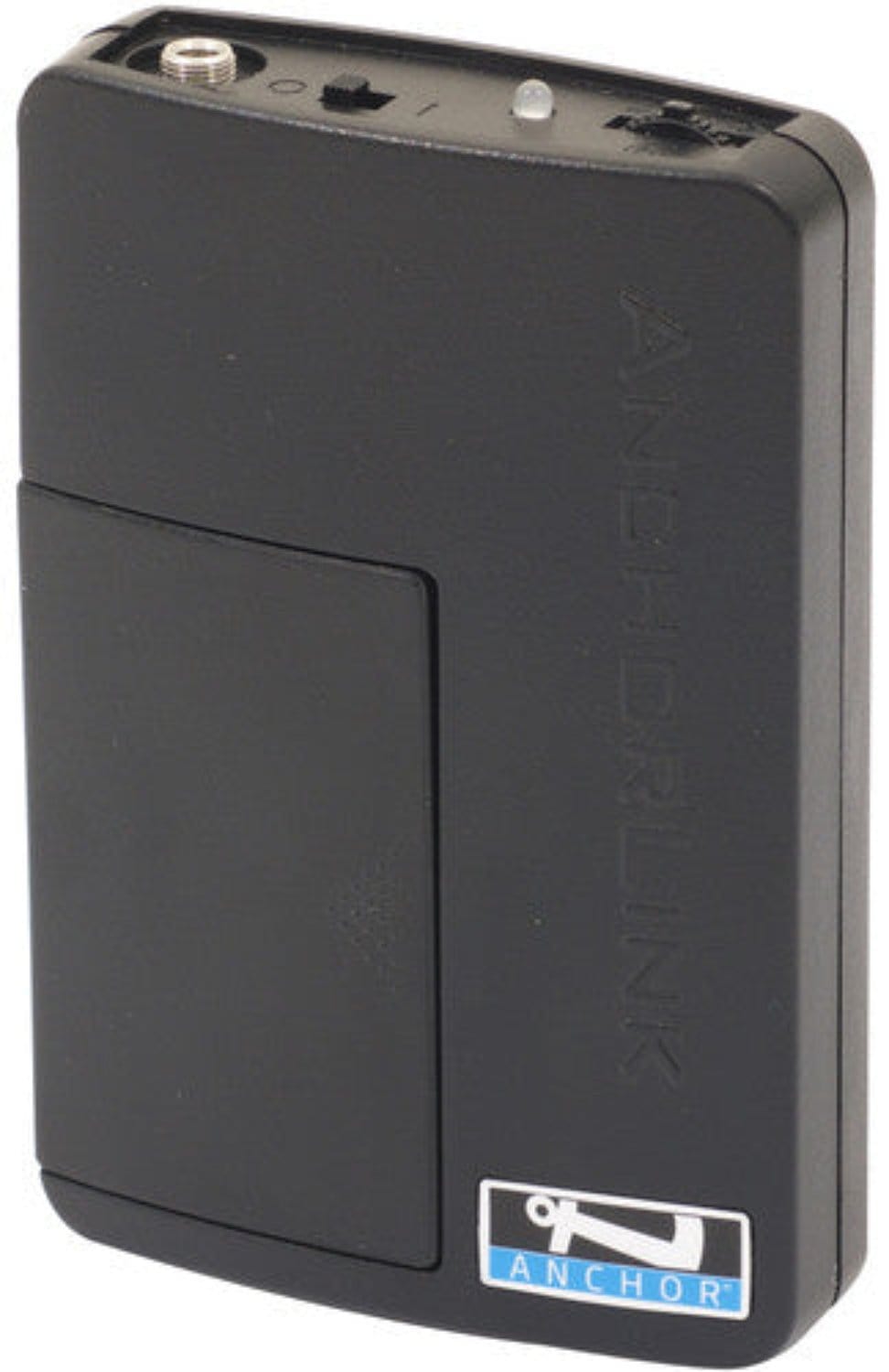

4x Anchor Audio WB-LINK Wireless Belt Pack Transmitter
The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.
Features:
- BIG2-XU4:
- Reach crowds of 5,000+
- Connect up to four wireless mics
- Anchor AIR wireless companion speaker compatible
- Built-in Class 1 Bluetooth
- Onboard mic storage bag
- Built-in heavy-duty wheels and handle for easy transport
- Built-in rechargeable batteries operate 6 - 8 hours on a single charge
- Designed to cover a football field or large auditorium
- CM-LINK:
- For Hands-Free Presentations
- Use with WB-LINK Bodypack Transmitter
- Cardioid Polar Pattern
- 3.5mm Connector
- WB-LINK:
- For AnchorLink-Equipped PA Systems
- 3.5mm Mic Input Connector
- Accepts Lavalier and Headset Mics
- Volume and Mute Controls
- One-Time Pair Function
- Up to 8 Hours of Operation
- 1.9 GHz Wireless Frequency Range
- Automatic Frequency Hopping
- Powered via 2 x AA Batteries
- Includes Belt Clip
Specifications:
- BIG2-XU4:
- Rated Power Output: 300 watts AC/DC RMS
- Max SPL @ Rated Power: 130 dB @ 1 meter
- Frequency Response: 55 Hz – 16 kHz ± 3 dB
- Microphone Wireless Frequency: 1.9 GHz DECT
- Microphone Wireless Range: 300’+ line of sight
- Mic Inputs:
- Lo-Z, balanced, XLR & 1/4”
- 34V DC condenser mic (phantom) power
- Hi-Z (10 KW), unbalanced, 1/4” phone
- Line Inputs: Balanced Mono 1/4” & Unbalanced Stereo 3.5 mm
- Line Output (post fader): Isolated, 600W, 1/4” phone
- AC Power Requirements: 100 – 240 VAC, 50/60 Hz, 300W max
- Battery: Three 12V LFP rechargeable batteries, 7.5 AH
- Dimensions Closed (HWD): 42.5” x 14” x 23” (108 x 38.9 x 61 cm)
- Dimensions Opened (HWD): 68.5” x 14” x 23” (174 x 38.9 x 61 cm)
- Weight: 63.5 lbs / 28.8 Kg
- WB-LINK:
- Frequency Band: 1.9 GHz
- Wireless Range: 300' / 91 m, line of sight
- Controls: Volume, Mute
- Power: 2 x AA batteries
- Operates up to 8 hours
- CM-LINK:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
- Reach crowds of 5,000+
- Connect up to four wireless mics
- Anchor AIR wireless companion speaker compatible
- Built-in Class 1 Bluetooth
- Onboard mic storage bag
- Built-in heavy-duty wheels and handle for easy transport
- Built-in rechargeable batteries operate 6 - 8 hours on a single charge
- Designed to cover a football field or large auditorium
- For Hands-Free Presentations
- Use with WB-LINK Bodypack Transmitter
- Cardioid Polar Pattern
- 3.5mm Connector
- For AnchorLink-Equipped PA Systems
- 3.5mm Mic Input Connector
- Accepts Lavalier and Headset Mics
- Volume and Mute Controls
- One-Time Pair Function
- Up to 8 Hours of Operation
- 1.9 GHz Wireless Frequency Range
- Automatic Frequency Hopping
- Powered via 2 x AA Batteries
- Includes Belt Clip
- BIG2-XU4:
- Rated Power Output: 300 watts AC/DC RMS
- Max SPL @ Rated Power: 130 dB @ 1 meter
- Frequency Response: 55 Hz – 16 kHz ± 3 dB
- Microphone Wireless Frequency: 1.9 GHz DECT
- Microphone Wireless Range: 300’+ line of sight
- Mic Inputs:
- Lo-Z, balanced, XLR & 1/4”
- 34V DC condenser mic (phantom) power
- Hi-Z (10 KW), unbalanced, 1/4” phone
- Line Inputs: Balanced Mono 1/4” & Unbalanced Stereo 3.5 mm
- Line Output (post fader): Isolated, 600W, 1/4” phone
- AC Power Requirements: 100 – 240 VAC, 50/60 Hz, 300W max
- Battery: Three 12V LFP rechargeable batteries, 7.5 AH
- Dimensions Closed (HWD): 42.5” x 14” x 23” (108 x 38.9 x 61 cm)
- Dimensions Opened (HWD): 68.5” x 14” x 23” (174 x 38.9 x 61 cm)
- Weight: 63.5 lbs / 28.8 Kg
- WB-LINK:
- Frequency Band: 1.9 GHz
- Wireless Range: 300' / 91 m, line of sight
- Controls: Volume, Mute
- Power: 2 x AA batteries
- Operates up to 8 hours
- CM-LINK:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
