Anchor Audio 914260 Bigfoot 2 System X2 - Anchor-Air / 2x Lapel Wireless Microphones

Anchor Audio 914260 Bigfoot 2 System X2 - Anchor-Air / 2x Lapel Wireless Microphones

1x Anchor Audio BIG2-XU2 Bigfoot 2 Portable Line Array

The Anchor Audio BIG2-XU2 is a Bigfoot 2 portable line array with Bluetooth, an AIR wireless transmitter, and a dual wireless microphone receiver. With 400W of rated output power driving five 8" neodymium woofers and a neodymium compression driver to produce 130 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 5000 people in sports venues, educational facilities, and various indoor and outdoor events.

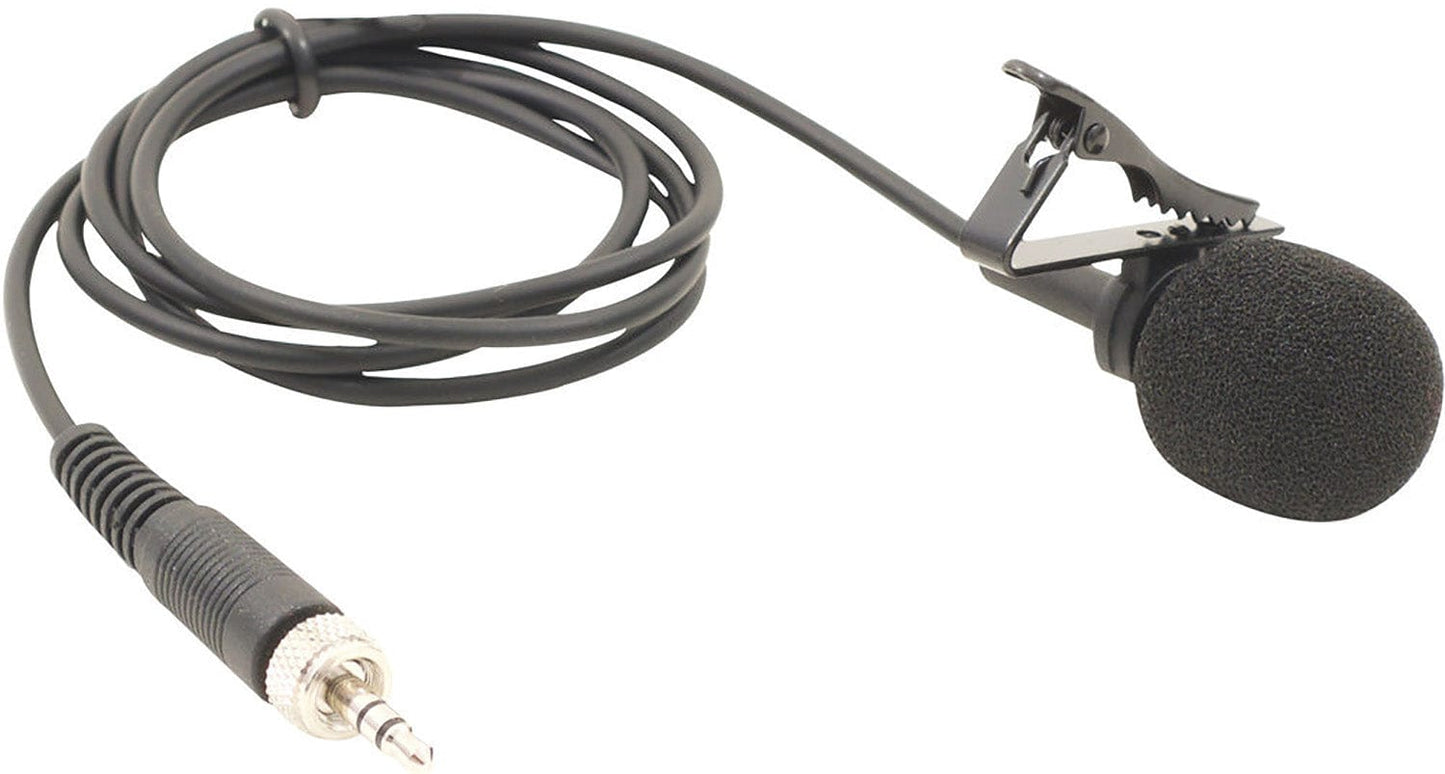

2x Anchor Audio LM-LINK Lapel Microphone

The Anchor Audio LM-LINK is a lavalier microphone designed for speakers who prefer the hands-free convenience of a wearable mic. It includes a 3.5mm connector for compatibility with the AnchorLink Series WB-LINK bodypack transmitter. Featuring a cardioid polar pattern, the LM-LINK is engineered to minimize unwanted feedback when positioned near a speaker. Additionally, it comes with a clip and a foam windscreen for added convenience and versatility.

2x Anchor Audio WB-LINK Wireless Beltpack Transmitter

The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.

For a handsfree, wireless experience, the WB-LINK can be used with microphone elements such as the HBM-LINK, CM-LINK, EM-LINK, and LM-LINK.

Features:

• Anchor Audio BIG2-XU2 Bigfoot 2 Portable Line Array:
  • Reaches crowds up to 5,000+
  • 130 dB of clear sound
  • 300W AC/DC
  • Connect up to two wireless mics
  • 1.9 GHz wireless frequency
  • Anchor AIR transmitter
  • Built-in Class 1 Bluetooth
  • Built-in rechargeable Lithium Ion batteries operates 6 - 8 hours on a single charge
  • Onboard mic storage bag
  • Heavy duty wheels for easy transport
  • Five 8" neodymium woofers
  • One neodymium compression driver
  • Designed to cover a football field or large auditorium
• Anchor Audio Lapel Microphone Element for WB-Link:

  • For Hands-Free Presentations
  • Clips to Clothing
  • Use with WB-LINK Beltpack Transmitter
  • Cardioid Polar Pattern
  • 3.5mm Connector
  • Includes Clip and Foam Windscreen
• Anchor Audio WB-LINK Wireless Beltpack Transmitter:
  • For AnchorLink-Equipped PA Systems
  • 3.5mm Mic Input Connector
  • Accepts Lavalier and Headset Mics
  • Volume and Mute Controls
  • One-Time Pair Function
  • Up to 8 Hours of Operation
  • 1.9 GHz Wireless Frequency Range
  • Automatic Frequency Hopping
  • Powered via 2 x AA Batteries
  • Includes Belt Clip

Specifications:

• Anchor Audio BIG2-XU2 Bigfoot 2 Portable Line Array:
  • Rated Power Output: 300 watts
  • Max SPL @ Rated Power: 130 dB @ 1 meter
  • Frequency Response: 100 Hz ~ 15 kHz ± 3dB
  • AC Power Reqs: 100~240 VAC, 50/60 Hz, 3.5A
  • Charger/Power Inlet: PC-2
  • Battery:
    • Three 12V
    • Lithium Iron Phosphate rechargeable
    • (LiFePo4), 7.5 Ah
    • Full recharge: ~ 5 hours
  • AnchorLink Wireless Frequency: 1920~1930 MHz USA/CAN; 1880~1900 MHz Europe
  • AnchorLink Wireless Range: 300’+ line of sight
  • AIR Frequency Range: 902~928 MHz USA/CAN; 606~614MHz Europe
  • AIR Wireless Range: 300’+ line of sight
  • Microphone Inputs:
    • Lo-Z, balanced, XLR & 1/4”
    • 34 V DC condenser mic (phantom) power
    • Hi-Z (10 kΩ), unbalanced, 1/4” phone
  • Line Inputs: Unbalanced 1/4” & 3.5 mm stereo
  • Line Output: (post fader) Isolated, 600Ω, 1/4” phone
  • Dimensions (HWD):
    • Opened: 68.5” x 14” x 23”, (174 x 39 x 61 cm)
    • Closed: 42.5” x 14” x 23”, (108 x 39 x 61 cm)
    • Weight 64 lbs. / 29 kg
• Anchor Audio Lapel Microphone Element for WB-Link:

  • Polar Pattern: Cardioid
  • Connector: 1/8" / 3.5 mm
  • Package Weight: 0.47 lb
  • Box Dimensions (LxWxH): 8.35 x 6.55 x 2.5"
• Anchor Audio WB-LINK Wireless Beltpack Transmitter:
  • Frequency Band: 1.9 GHz
  • Wireless Range: 300' / 91 m, line of sight
  • Input Connector: 1/8" / 3.5 mm
  • Controls:
    • Volume
    • Mute
  • Power:
    • 2 x AA batteries
    • Operates up to 8 hours
  • Packaging Info:
    • Package Weight: 0.35 lb
    • Box Dimensions (LxWxH): 5.85 x 4.2 x 1.2"
