Anchor Audio 914190 Bigfoot 2 System X1 - Anchor-Air / Lapel / Headband Wireless Microphones

Anchor Audio 914190 Bigfoot 2 System X1 - Anchor-Air / Lapel / Headband Wireless Microphones

1x Anchor Audio BIG2-XU2 Bigfoot 2 Portable Line Array

The Anchor Audio BIG2-XU2 is a Bigfoot 2 portable line array with Bluetooth, an AIR wireless transmitter, and a dual wireless microphone receiver. With 400W of rated output power driving five 8" neodymium woofers and a neodymium compression driver to produce 130 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 5000 people in sports venues, educational facilities, and various indoor and outdoor events.

1x Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector

The LM-LINK is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a 3.5 mm connector plug.

1x Anchor Audio HBM-LINK - Headband Microphone with 3.5mm plug

The HBM-LINK follows your head when turned and flawlessly tracks your voice. Wear it around the back of head and over your ears, so the microphone is resting right in front of your mouth. The headband microphone has a 3.5 mm connector plug.

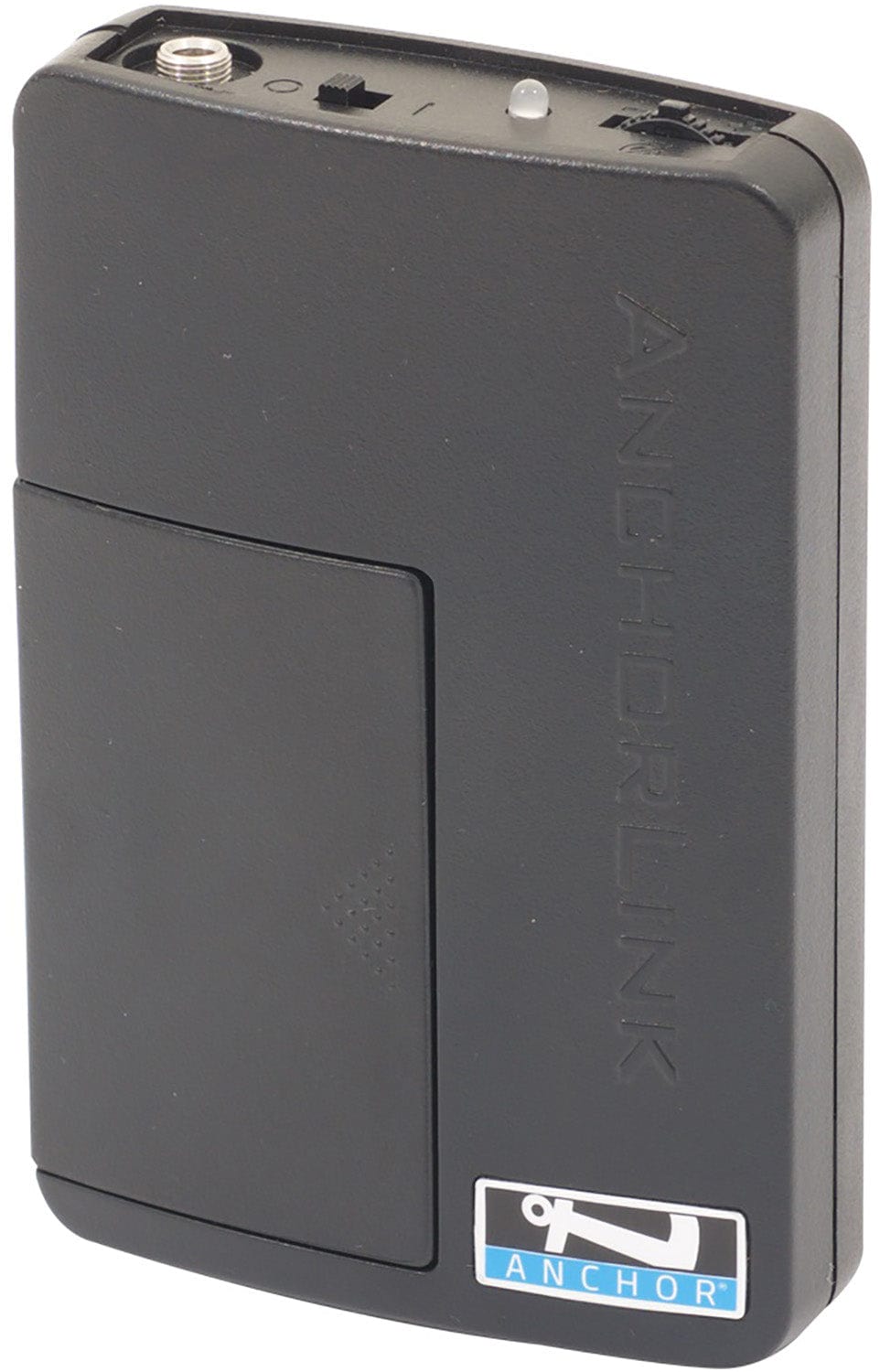

1x Anchor Audio WB-LINK - Wireless belt pack transmitter

The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.

Features:

• Anchor Audio BIG2-XU2 Bigfoot 2 Portable Line Array:
  • Reaches crowds up to 5,000+
  • 130 dB of clear sound
  • 300W AC/DC
  • Connect up to two wireless mics
  • 1.9 GHz wireless frequency
  • Anchor AIR transmitter
  • Built-in Class 1 Bluetooth
  • Built-in rechargeable Lithium Ion batteries operates 6 - 8 hours on a single charge
  • Onboard mic storage bag
  • Heavy duty wheels for easy transport
  • Five 8" neodymium woofers
  • One neodymium compression driver
  • Designed to cover a football field or large auditorium
• Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
  • For Hands-Free Presentations
  • Clips to Clothing
  • Use with WB-LINK Beltpack Transmitter
  • Cardioid Polar Pattern
  • 3.5mm Connector
• Anchor Audio HBM-LINK Headband Mic with 3.5mm Plug:
  • For Hands-Free Presentations
  • Use with WB-LINK Beltpack Transmitter
  • Cardioid Polar Pattern
  • 3.5mm Connector
• Anchor Audio WB-LINK Wireless Beltpack Transmitter:
  • For AnchorLink-Equipped PA Systems
  • 3.5mm Mic Input Connector
  • Accepts Lavalier and Headset Mics
  • Volume and Mute Controls
  • One-Time Pair Function
  • Up to 8 Hours of Operation
  • 1.9 GHz Wireless Frequency Range
  • Automatic Frequency Hopping
  • Powered via 2 x AA Batteries
  • Includes Belt Clip

Specifications:

• Anchor Audio BIG2-XU2 Bigfoot 2 Portable Line Array:
  • Rated Power Output: 300 watts AC/DC
  • Max SPL @ Rated Power: 130 dB @ 1m
  • Frequency Response: 55 Hz to 16 kHz, ±3 dB
  • Speakers: 5 x 8" neodymium woofers
  • Driver: 1 x neodymium compression driver
  • Microphone Wireless Frequency: 1.9 GHz DECT
  • Microphone Wireless Range: 300'+ line of sight
  • Mic Inputs:
    • Lo-Z, balanced: XLR & 1/4"
    • 34V DC condenser mic (phantom) power
    • Hi-Z (10 kΩ), unbalanced: 1/4" phone
  • Line Inputs:
    • Balanced Mono: 1/4"
    • Unbalanced Stereo: 3.5 mm stereo
  • Line Output (post fader): Isolated, 600 Ω, 1/4" phone
  • Sensitivity for Rated Output:
    • Lo-Z Microphone: -52 dBV (2.5 mVrms)
    • Hi-Z Microphone: -43 dBV (7.5 mVrms)
    • Auxiliary (line): -14 dBV (200 mVrms)
  • AC Power Requirements: 100–240 VAC, 50/60 Hz, 300W max
  • Battery: Three 12V LFP rechargeable batteries, 7.5 AH
  • Anchor AIR Specifications:
    • AIR Frequency Range: 902-928 MHz
    • AIR Wireless Range: 300'+ line of sight
  • Dimensions (H x W x D):
    • Closed: 42.5" x 14" x 23" (108 x 38.9x 61cm)
    • Opened: 68.5" x 14" x 23" (174 x 38.9x 61cm)
  • Weight: 63.5 lbs (28.8 kg)
• Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
  • Polar Pattern: Cardioid
  • Connector: 1/8" / 3.5 mm
  • Package Weight: 0.13 lb
  • Box Dimensions (LxWxH): 4.2 x 2.95 x 2.5"
• Anchor Audio HBM-LINK Headband Mic with 3.5mm Plug:
  • Polar Pattern: Cardioid
  • Frequency Response: 100 Hz to 18 kHz
  • Sensitivity: -84 dB ±3 dB
  • Connector: 1/8" / 3.5 mm
  • Cable Length: 4.0' / 1.2 m
  • Package Weight: 0.35 lb
  • Box Dimensions (LxWxH): 7.15 x 5.75 x 2.45"
• Anchor Audio WB-LINK Wireless Beltpack Transmitter:
  • Frequency Band: 1.9 GHz
  • Wireless Range: 300' / 91 m, line of sight
  • Input Connector: 1/8" / 3.5 mm
  • Controls:
    • Volume
    • Mute
  • Power:
    • 2 x AA batteries
    • Operates up to 8 hours
  • Packaging Info:
    • Package Weight: 0.35 lb
    • Box Dimensions (LxWxH): 5.85 x 4.2 x 1.2"
