Anchor Audio 914170 Bigfoot 2 System X1 - Anchor-Air / Collar Wireless Microphone

Anchor Audio 914170 Bigfoot 2 System X1 - Anchor-Air / Collar Wireless Microphone

1x Anchor Audio BIG2-XU2 Bigfoot 2 Portable Line Array

The Anchor Audio BIG2-XU2 is a Bigfoot 2 portable line array with Bluetooth, an AIR wireless transmitter, and a dual wireless microphone receiver. With 400W of rated output power driving five 8" neodymium woofers and a neodymium compression driver to produce 130 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 5000 people in sports venues, educational facilities, and various indoor and outdoor events.

1x Anchor Audio CM-LINK Cardioid Collar Microphone

The CM-LINK is a collar microphone element that can be easily hidden underneath a collared shirt. It has a flexible design for microphone angle adjustment. The collar microphone has a 3.5 mm connector plug.

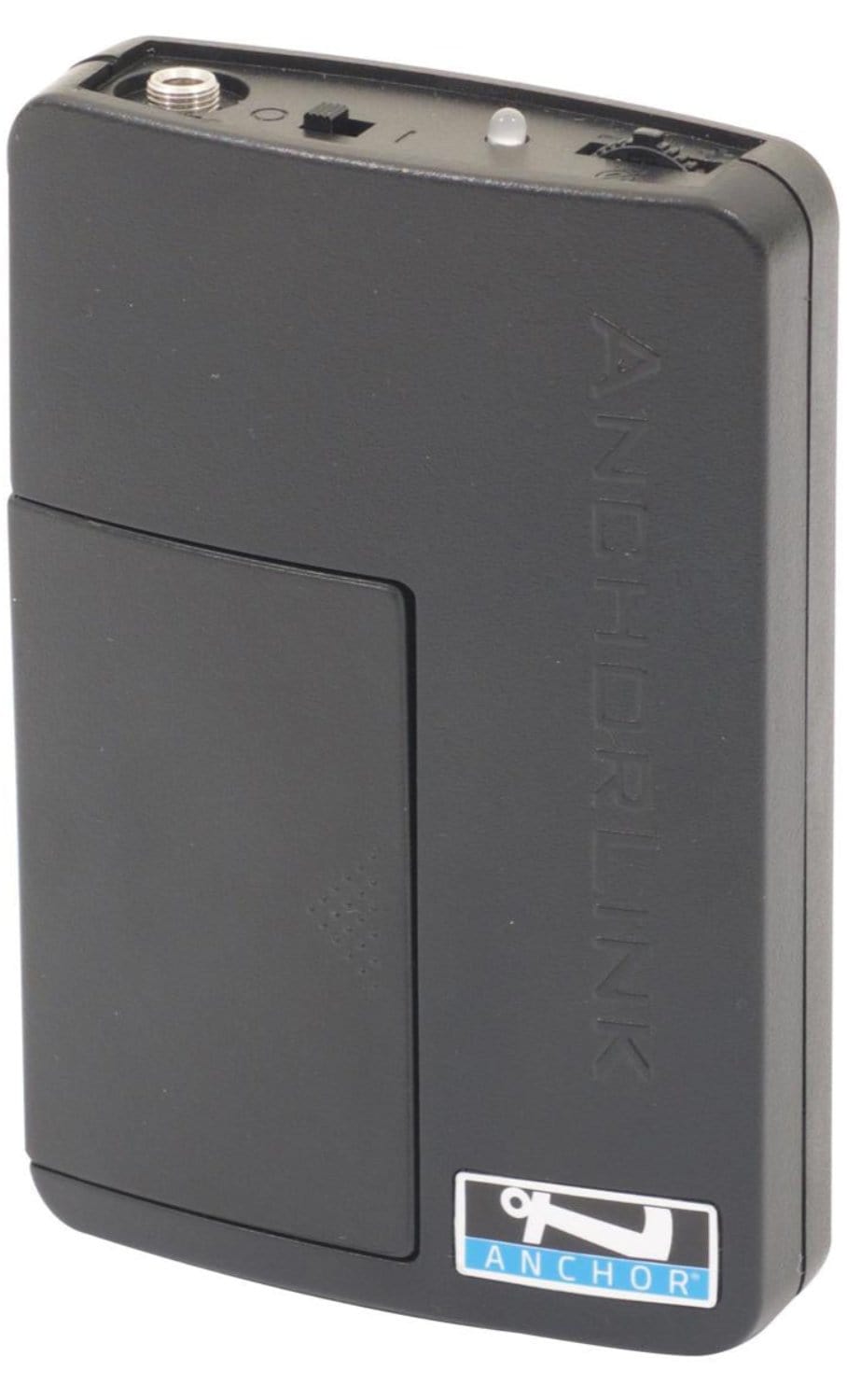

1x Anchor Audio WB-LINK - Wireless belt pack transmitter

The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.

Features:

• Anchor Audio BIG2-XU2 Bigfoot 2 Portable Line Array:
  • Reaches crowds up to 5,000+
  • 130 dB of clear sound
  • 300W AC/DC
  • Connect up to two wireless mics
  • 1.9 GHz wireless frequency
  • Anchor AIR transmitter
  • Built-in Class 1 Bluetooth
  • Built-in rechargeable Lithium Ion batteries operates 6 - 8 hours on a single charge
  • Onboard mic storage bag
  • Heavy duty wheels for easy transport
  • Five 8" neodymium woofers
  • One neodymium compression driver
  • Designed to cover a football field or large auditorium
• Anchor Audio CM-LINK Cardioid Collar Microphone:
  • Discreet mic design
  • Easily hides under your shirt collar
  • Flexible construction for easy angle adjustment
  • 3.5 mm connector plug for broad compatibility
  • Cardioid polar pattern reduces feedback near speakers
  • Ideal for professional presentations, conferences, and public speaking
  • Ensures clear, hands-free audio without compromising on style
  • For use with the WB-LINK Wireless Beltpack Transmitter
  • Works with any transmitter that uses a 3.5 mm connector
  • Includes foam windscreen for immediate use
• Anchor Audio WB-LINK Wireless Beltpack Transmitter:
  • For AnchorLink-Equipped PA Systems
  • 3.5mm Mic Input Connector
  • Accepts Lavalier and Headset Mics
  • Volume and Mute Controls
  • One-Time Pair Function
  • Up to 8 Hours of Operation
  • 1.9 GHz Wireless Frequency Range
  • Automatic Frequency Hopping
  • Powered via 2 x AA Batteries
  • Includes Belt Clip

Specifications:

• Anchor Audio BIG2-XU2 Bigfoot 2 Portable Line Array:
  • Rated Power Output: 300 watts AC/DC
  • Max SPL @ Rated Power: 130 dB @ 1m
  • Frequency Response: 55 Hz to 16 kHz, ±3 dB
  • Speakers: 5 x 8" neodymium woofers
  • Driver: 1 x neodymium compression driver
  • Microphone Wireless Frequency: 1.9 GHz DECT
  • Microphone Wireless Range: 300'+ line of sight
  • Mic Inputs:
    • Lo-Z, balanced: XLR & 1/4"
    • 34V DC condenser mic (phantom) power
    • Hi-Z (10 kΩ), unbalanced: 1/4" phone
  • Line Inputs:
    • Balanced Mono: 1/4"
    • Unbalanced Stereo: 3.5 mm stereo
  • Line Output (post fader): Isolated, 600 Ω, 1/4" phone
  • Sensitivity for Rated Output:
    • Lo-Z Microphone: -52 dBV (2.5 mVrms)
    • Hi-Z Microphone: -43 dBV (7.5 mVrms)
    • Auxiliary (line): -14 dBV (200 mVrms)
  • AC Power Requirements: 100–240 VAC, 50/60 Hz, 300W max
  • Battery: Three 12V LFP rechargeable batteries, 7.5 AH
  • Anchor AIR Specifications:
    • AIR Frequency Range: 902-928 MHz
    • AIR Wireless Range: 300'+ line of sight
  • Dimensions (H x W x D):
    • Closed: 42.5" x 14" x 23" (108 x 38.9x 61cm)
    • Opened: 68.5" x 14" x 23" (174 x 38.9x 61cm)
  • Weight: 63.5 lbs (28.8 kg)
• Anchor Audio CM-LINK Cardioid Collar Microphone:
  • Polar Pattern: Cardioid
  • Connector: 1/8" / 3.5 mm
  • Package Weight: 0.47 lb
  • Box Dimensions (LxWxH): 8.35 x 6.55 x 2.5"
• Anchor Audio WB-LINK Wireless Beltpack Transmitter:
  • Frequency Band: 1.9 GHz
  • Wireless Range: 300' / 91 m, line of sight
  • Input Connector: 1/8" / 3.5 mm
  • Controls:
    • Volume
    • Mute
  • Power:
    • 2 x AA batteries
    • Operates up to 8 hours
  • Packaging Info:
    • Package Weight: 0.35 lb
    • Box Dimensions (LxWxH): 5.85 x 4.2 x 1.2"
