Anchor Audio 914100 Bigfoot 2 System X1 - Anchor-Air / Handheld Wireless Microphone

Anchor Audio 914100 Bigfoot 2 System X1 - Anchor-Air / Handheld Wireless Microphone

1x Anchor Audio BIG2-XU2 Bigfoot 2 Portable Line Array

The Anchor Audio BIG2-XU2 is a Bigfoot 2 portable line array with Bluetooth, an AIR wireless transmitter, and a dual wireless microphone receiver. With 400W of rated output power driving five 8" neodymium woofers and a neodymium compression driver to produce 130 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 5000 people in sports venues, educational facilities, and various indoor and outdoor events.

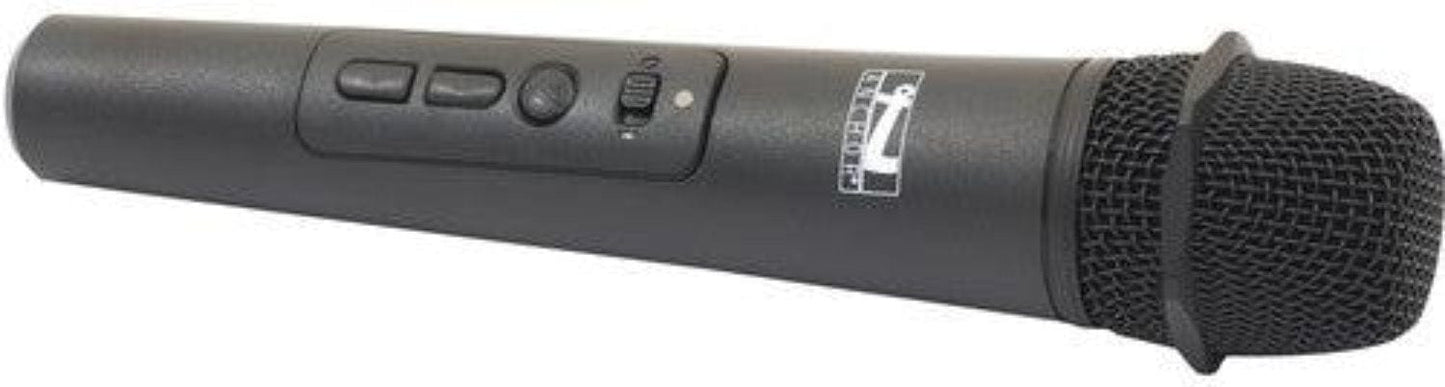

1x Anchor Audio WH-LINK Wireless Handheld Microphone

The WH-LINK is a wireless handheld microphone with a sleek and lightweight design. It operates on the 1.9 GHz frequency. The WH-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries.

The WH-LINK handheld microphone is used with the AnchorLink series.

Features:

• Anchor Audio BIG2-XU2 Bigfoot 2 Portable Line Array:
  • Reaches crowds up to 5,000+
  • 130 dB of clear sound
  • 300W AC/DC
  • Connect up to two wireless mics
  • 1.9 GHz wireless frequency
  • Anchor AIR transmitter
  • Built-in Class 1 Bluetooth
  • Built-in rechargeable Lithium Ion batteries operates 6 - 8 hours on a single charge
  • Onboard mic storage bag
  • Heavy duty wheels for easy transport
  • Five 8" neodymium woofers
  • One neodymium compression driver
  • Designed to cover a football field or large auditorium
• Anchor Audio WH-LINK Wireless Handheld Microphone:
  • Classic Wireless Handheld Microphone
  • For AnchorLink-Equipped PA Systems
  • Volume and Mute Controls
  • One-Time Pair Function
  • Up to 8 Hours of Operation
  • 1.9 GHz Wireless Frequency Range
  • Automatic Frequency Hopping
  • Lightweight Design
  • Powered via 2 x AA Batteries

Specifications:

• Anchor Audio BIG2-XU2 Bigfoot 2 Portable Line Array:
  • Rated Power Output: 300 watts AC/DC
  • Max SPL @ Rated Power: 130 dB @ 1m
  • Frequency Response: 55 Hz to 16 kHz, ±3 dB
  • Speakers: 5 x 8" neodymium woofers
  • Driver: 1 x neodymium compression driver
  • Microphone Wireless Frequency: 1.9 GHz DECT
  • Microphone Wireless Range: 300'+ line of sight
  • Mic Inputs:
    • Lo-Z, balanced: XLR & 1/4"
    • 34V DC condenser mic (phantom) power
    • Hi-Z (10 kΩ), unbalanced: 1/4" phone
  • Line Inputs:
    • Balanced Mono: 1/4"
    • Unbalanced Stereo: 3.5 mm stereo
  • Line Output (post fader): Isolated, 600 Ω, 1/4" phone
  • Sensitivity for Rated Output:
    • Lo-Z Microphone: -52 dBV (2.5 mVrms)
    • Hi-Z Microphone: -43 dBV (7.5 mVrms)
    • Auxiliary (line): -14 dBV (200 mVrms)
  • AC Power Requirements: 100–240 VAC, 50/60 Hz, 300W max
  • Battery: Three 12V LFP rechargeable batteries, 7.5 AH
  • Anchor AIR Specifications:
    • AIR Frequency Range: 902-928 MHz
    • AIR Wireless Range: 300'+ line of sight
  • Dimensions (H x W x D):
    • Closed: 42.5" x 14" x 23" (108 x 38.9x 61cm)
    • Opened: 68.5" x 14" x 23" (174 x 38.9x 61cm)
  • Weight: 63.5 lbs (28.8 kg)
• Anchor Audio WH-LINK Wireless Handheld Microphone:
  • Frequency Band: 1.9 GHz
  • Wireless Range: 300' / 91 m, line of sight
  • Controls:
    • Volume
    • Mute
  • Power:
    • 2 x AA batteries
    • Operates up to 8 hours
  • Packaging Info:
    • Package Weight: 0.76 lb
    • Box Dimensions (LxWxH): 10.45 x 3.15 x 2.3"
