Anchor Audio 912470 Bigfoot 2 System 4 - 4x Collar Wireless Microphones

Anchor Audio 912470 Bigfoot 2 System 4 - 4x Collar Wireless Microphones

1x BIG2-U4 - Bigfoot 2 with built-in Bluetooth & two dual wireless mic receivers

The Anchor Audio BIG2-U4 Bigfoot 2 Series sound systems provide you with an array of easy to use portable sound systems and microphone kits. These speakers are perfect for portable sound and voice amplification during indoor/outdoor events, weddings, house of worship, large auditoriums, parades, and community celebrations.

4x CM-LINK - Collar mic 3.5 mm plug

The CM-LINK is a collar microphone element that can be easily hidden underneath a collared shirt. It has a flexible design for microphone angle adjustment. The collar microphone has a 3.5 mm connector plug.

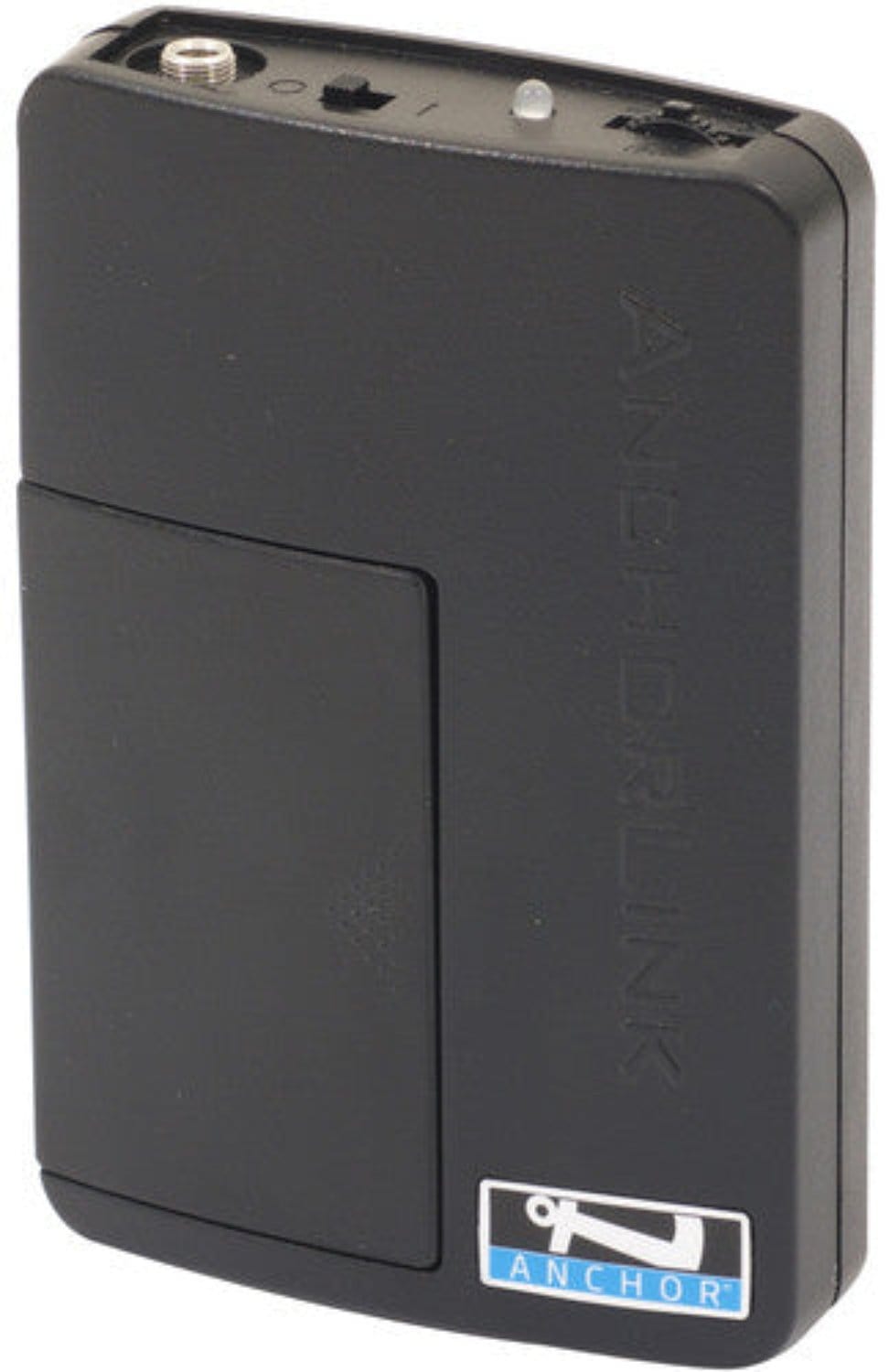

4x WB-LINK - Wireless belt pack transmitter

The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.

Features:

• BIG2-U4:
  • Reach crowds of 5,000+
  • Connect up to four wireless mics
  • Anchor AIR wireless companion speaker compatible
  • Built-in Class 1 Bluetooth
  • Onboard mic storage bag
  • Built-in heavy-duty wheels and handle for easy transport
  • Built-in rechargeable batteries operate 6 - 8 hours on a single charge
  • Designed to cover a football field or large auditorium
• CM-LINK:
  • For Hands-Free Presentations
  • Use with WB-LINK Bodypack Transmitter
  • Cardioid Polar Pattern
  • 3.5mm Connector
• WB-LINK:
  • For AnchorLink-Equipped PA Systems
  • 3.5mm Mic Input Connector
  • Accepts Lavalier and Headset Mics
  • Volume and Mute Controls
  • One-Time Pair Function
  • Up to 8 Hours of Operation
  • 1.9 GHz Wireless Frequency Range
  • Automatic Frequency Hopping
  • Powered via 2 x AA Batteries
  • Includes Belt Clip

Specifications:

• BIG2-U4:
  • Rated Power Output: 300 watts AC/DC RMS
  • Max SPL @ Rated Power: 130 dB @ 1 meter
  • Frequency Response: 55 Hz – 16 kHz ± 3 dB
  • Microphone Wireless Frequency: 1.9 GHz DECT
  • Microphone Wireless Range: 300’+ line of sight
  • Mic Inputs:
    • Lo-Z, balanced, XLR & 1/4”
    • 34V DC condenser mic (phantom) power
    • Hi-Z (10 KW), unbalanced, 1/4” phone
  • Line Inputs: Balanced Mono 1/4” & Unbalanced Stereo 3.5 mm
  • Line Output (post fader): Isolated, 600W, 1/4” phone
  • AC Power Requirements: 100 – 240 VAC, 50/60 Hz, 300W max
  • Battery: Three 12V LFP rechargeable batteries, 7.5 AH
  • Dimensions Closed (HWD): 42.5” x 14” x 23” (108 x 38.9 x 61 cm)
  • Dimensions Opened (HWD): 68.5” x 14” x 23” (174 x 38.9 x 61 cm)
  • Weight: 63.5 lbs / 28.8 Kg
• WB-LINK:
  • Frequency Band: 1.9 GHz
  • Wireless Range: 300' / 91 m, line of sight
  • Controls: Volume, Mute
  • Power: 2 x AA batteries
  • Operates up to 8 hours
• CM-LINK:
  • Polar Pattern: Cardioid
  • Connector: 1/8" / 3.5 mm
