Anchor Audio 911160 Bigfoot 2 System 1 - Lapel Wireless Microphone

Anchor Audio 911160 Bigfoot 2 System 1 - Lapel Wireless Microphone

This bundle contains:

1x Anchor Audio BIG2-U2 Bigfoot 2 Portable Line Array

The Anchor Audio BIG2-U2 is a Bigfoot 2 portable line array with Bluetooth and a dual wireless microphone receiver. With 400W of rated output power driving five 8" neodymium woofers and a neodymium compression driver to produce 130 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 5000 people in sports venues, educational facilities, and various indoor and outdoor events.

1x Anchor Audio CM-LINK Collar Microphone

The Anchor Audio CM-LINK is a collar microphone designed for hands-free presentations, ideal for speakers who prefer convenience and mobility. It features a cardioid polar pattern to reduce unwanted feedback, making it an excellent choice for use near speakers. The microphone is equipped with a 3.5mm connector and is compatible with the AnchorLink Series WB-LINK bodypack transmitter.

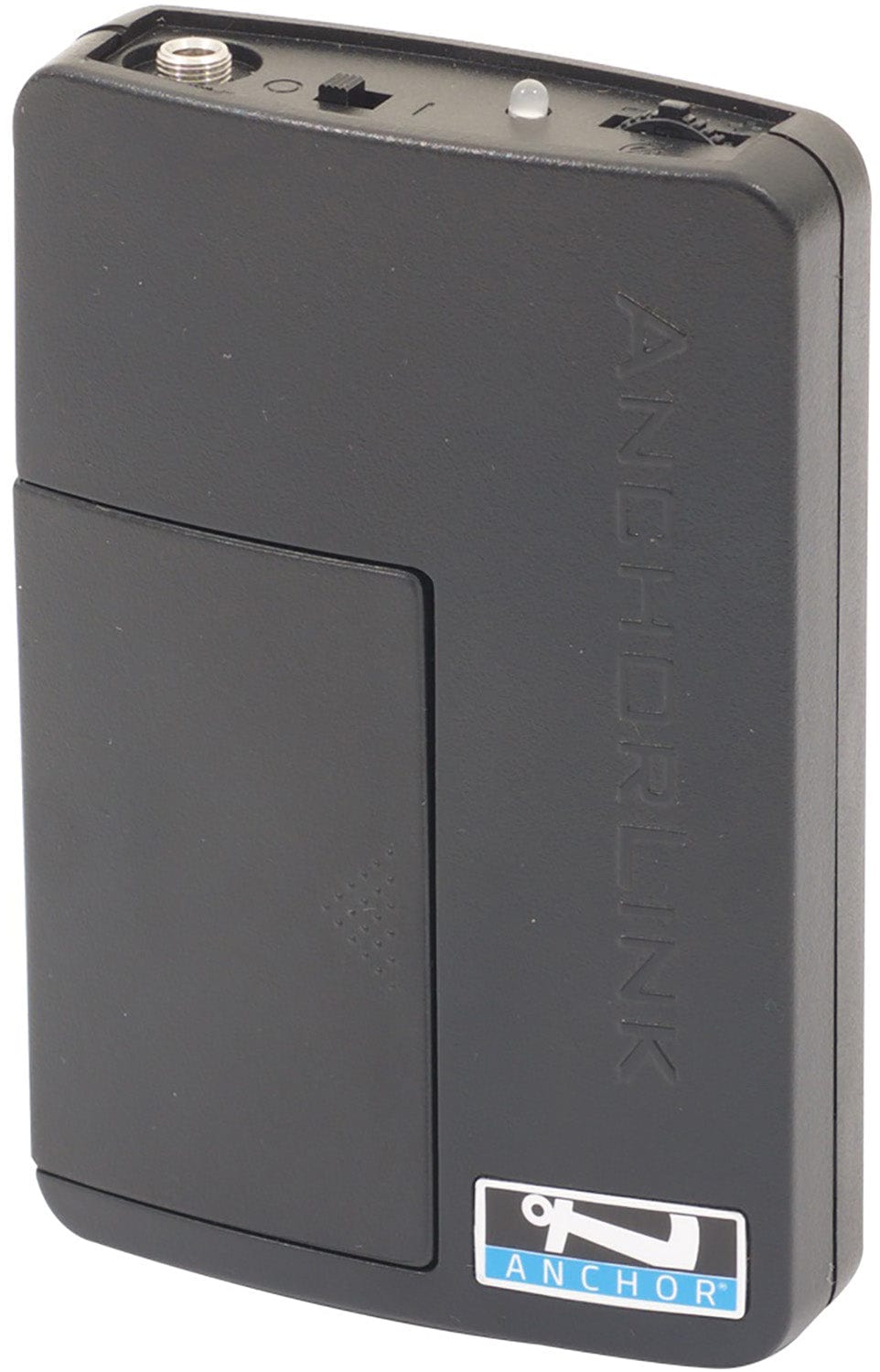

1x Anchor Audio WB-LINK Wireless Belt Pack

The Anchor Audio WB-LINK is a wireless bodypack transmitter designed for use with sound and PA systems that feature AnchorLink Series receivers. Operating in the less-crowded 1.9 GHz frequency range, it utilizes automatic frequency hopping to ensure a clear, interference-free signal with a transmission range of up to 300 feet.

Features:

• Anchor Audio BIG2-U2 Bigfoot 2 Portable Line Array:
  • Reaches Crowds of 5,000+
  • 130 dB of Clear Sound
  • 300W AC/DC
  • 1.9 GHz Wireless Frequency
  • 300'+ Wireless Range
  • Connect up to Four Wireless Mics
  • Built-in Class 1 Bluetooth
  • Wirelessly Connect Multiple Companion Speakers with Anchor AIR
  • Lithium Ion Rechargeable Batteries
• Anchor Audio CM-LINK Collar Microphone:
  • For hands-free presentations
  • Compatible with WB-LINK bodypack transmitter
  • Cardioid polar pattern for minimizing feedback
  • 3.5mm connector for easy connection
• Anchor Audio WB-LINK Wireless Belt Pack:
  • For AnchorLink-Equipped PA Systems
  • 3.5mm Mic Input Connector
  • Accepts Lavalier and Headset Mics
  • Volume and Mute Controls
  • One-Time Pair Function
  • Up to 8 Hours of Operation
  • 1.9 GHz Wireless Frequency Range
  • Automatic Frequency Hopping
  • Powered via 2 x AA Batteries
  • Includes Belt Clip

Specifications:

• Anchor Audio BIG2-U2 Bigfoot 2 Portable Line Array:
  • Rated Power Output: 300 watts AC/DC
  • Max SPL @ Rated Power: 130 dB @ 1 meter
  • Frequency Response: 100 Hz – 15 kHz ± 3 dB
  • Microphone Wireless Frequency: 1.9 GHz DECT
  • Microphone Wireless Range: 300’+ line of sight
  • Mic Inputs:
    • Lo-Z, balanced, XLR & 1/4"
    • 34V DC condenser mic (phantom) power
    • Hi-Z (10 KW), unbalanced, 1/4" phone
  • Line Inputs: Unbalanced 1/4" & 3.5 mm stereo
  • Line Output (post fader): Isolated, 600W, 1/4" phone
  • AC Power Reqs.: 100 – 240 VAC, 50/60 Hz, 300W max
  • Battery: Three 12V LFP rechargeable batteries, 7.5 AH
  • Dimensions Closed (HWD): 42.5" x 14" x 23" (108 x 38.9 x 61 cm)
  • Dimensions Opened (HWD): 68.5" x 14" x 23" (174 x 38.9 x 61 cm)
  • Weight: 63.5 lbs / 28.8 Kg
  • Warranty: 6 years
  • Sensitivity For Rated Output:
    • Lo-Z Microphone -52 dBV (2.5 mVrms)
    • Hi-Z Microphone -43 dBV (7.5 mVrms)
    • Auxiliary (line) -14 dBV (200 mVrms)
• Anchor Audio CM-LINK Collar Microphone:
  • Polar Pattern: Cardioid
  • Connector: 1/8" / 3.5 mm
• Anchor Audio WB-LINK Wireless Belt Pack:
  • Frequency Band: 1.9 GHz
  • Wireless Range: 300' / 91 m, line of sight
  • Input Connector: 1/8" / 3.5 mm
  • Controls: Volume, Mute
  • Power: 2 x AA batteries, operates up to 8 hours
