Anchor Audio 911150 Bigfoot 2 System 1 - Headband Wireless Microphone

Anchor Audio 911150 Bigfoot 2 System 1 - Headband Wireless Microphone

1x Anchor Audio BIG2-U2 Bigfoot 2 Portable Line Array

The Anchor Audio BIG2-U2 is a Bigfoot 2 portable line array with Bluetooth and a dual wireless microphone receiver. With 400W of rated output power driving five 8" neodymium woofers and a neodymium compression driver to produce 130 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 5000 people in sports venues, educational facilities, and various indoor and outdoor events.

1x Anchor Audio HBM-LINK Headband Microphone

The Anchor Audio HBM-LINK is a headset microphone, perfect for speakers who prefer the hands-free convenience of a wearable mic. It comes with a 3.5mm connector, making it compatible with the AnchorLink Series WB-LINK bodypack transmitter. Featuring a cardioid polar pattern, it is designed to reduce unwanted feedback when used close to a speaker, ensuring clear and focused audio.

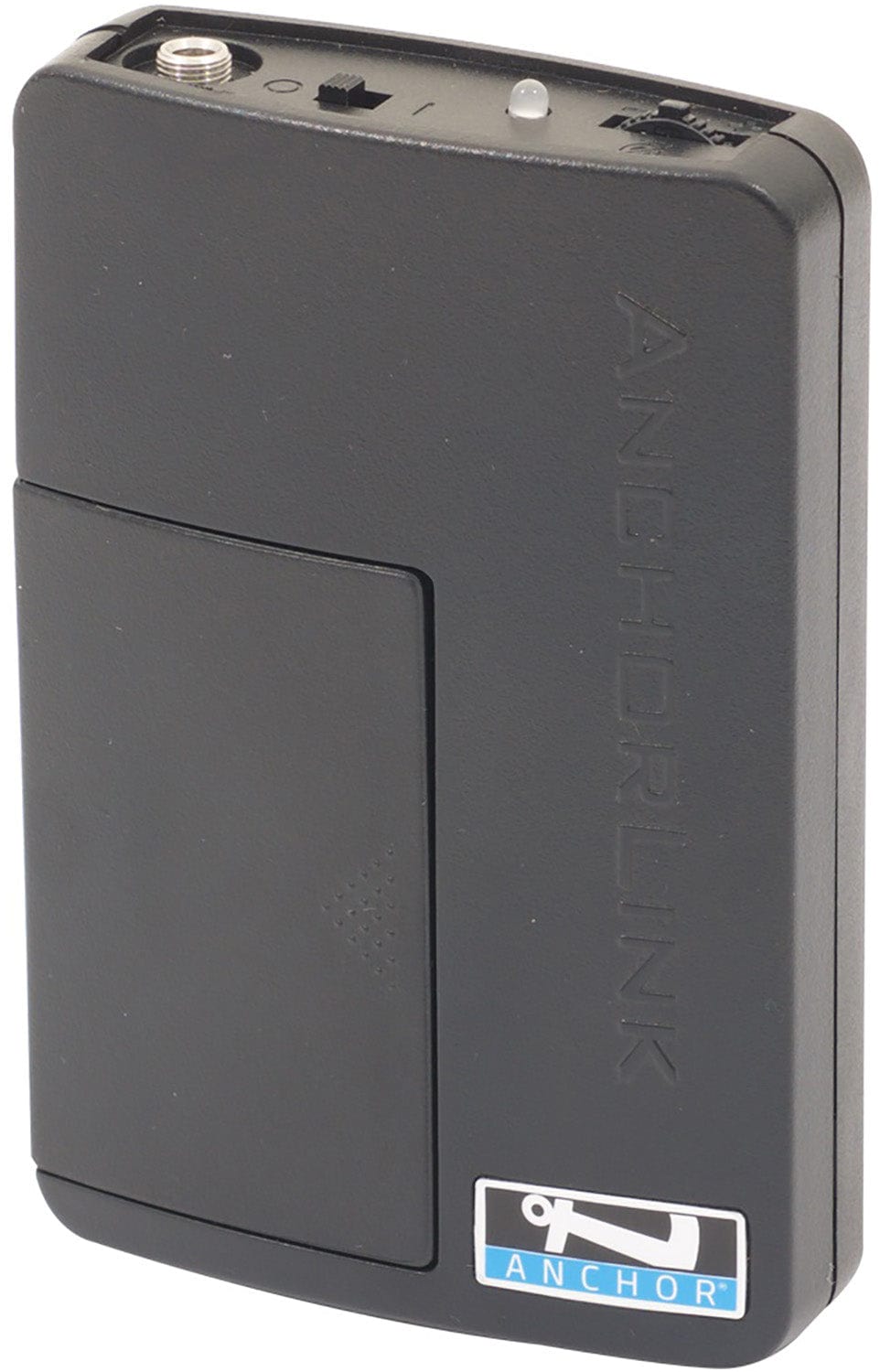

1x Anchor Audio WB-LINK Wireless Belt Pack

The Anchor Audio WB-LINK is a wireless bodypack transmitter designed for use with sound and PA systems that feature AnchorLink Series receivers. Operating in the less-crowded 1.9 GHz frequency range, it utilizes automatic frequency hopping to ensure a clear, interference-free signal with a transmission range of up to 300 feet.

Features:

• Anchor Audio BIG2-U2 Bigfoot 2 Portable Line Array:
  • Reaches Crowds of 5,000+
  • 130 dB of Clear Sound
  • 300W AC/DC
  • 1.9 GHz Wireless Frequency
  • 300'+ Wireless Range
  • Connect up to Four Wireless Mics
  • Built-in Class 1 Bluetooth
  • Wirelessly Connect Multiple Companion Speakers with Anchor AIR
  • Lithium Ion Rechargeable Batteries
• Anchor Audio HBM-LINK Headband Microphone:
  • For Hands-Free Presentations
  • Use with WB-LINK Beltpack Transmitter
  • Cardioid Polar Pattern
  • 3.5mm Connector
• Anchor Audio WB-LINK Wireless Belt Pack:
  • For AnchorLink-Equipped PA Systems
  • 3.5mm Mic Input Connector
  • Accepts Lavalier and Headset Mics
  • Volume and Mute Controls
  • One-Time Pair Function
  • Up to 8 Hours of Operation
  • 1.9 GHz Wireless Frequency Range
  • Automatic Frequency Hopping
  • Powered via 2 x AA Batteries
  • Includes Belt Clip

Specifications:

• Anchor Audio BIG2-U2 Bigfoot 2 Portable Line Array:
  • Rated Power Output: 300 watts AC/DC
  • Max SPL @ Rated Power: 130 dB @ 1 meter
  • Frequency Response: 100 Hz – 15 kHz ± 3 dB
  • Microphone Wireless Frequency: 1.9 GHz DECT
  • Microphone Wireless Range: 300’+ line of sight
  • Mic Inputs:
    • Lo-Z, balanced, XLR & 1/4"
    • 34V DC condenser mic (phantom) power
    • Hi-Z (10 KW), unbalanced, 1/4" phone
  • Line Inputs: Unbalanced 1/4" & 3.5 mm stereo
  • Line Output (post fader): Isolated, 600W, 1/4" phone
  • AC Power Reqs.: 100 – 240 VAC, 50/60 Hz, 300W max
  • Battery: Three 12V LFP rechargeable batteries, 7.5 AH
  • Dimensions Closed (HWD): 42.5" x 14" x 23" (108 x 38.9 x 61 cm)
  • Dimensions Opened (HWD): 68.5" x 14" x 23" (174 x 38.9 x 61 cm)
  • Weight: 63.5 lbs / 28.8 Kg
  • Warranty: 6 years
  • Sensitivity For Rated Output:
    • Lo-Z Microphone -52 dBV (2.5 mVrms)
    • Hi-Z Microphone -43 dBV (7.5 mVrms)
    • Auxiliary (line) -14 dBV (200 mVrms)
• Anchor Audio HBM-LINK Headband Microphone:
  • Polar Pattern: Cardioid
  • Frequency Response: 100 Hz to 18 kHz
  • Sensitivity: -84 dB ±3 dB
  • Connector: 1/8" / 3.5 mm
  • Cable Length: 4.0' / 1.2 m
• Anchor Audio WB-LINK Wireless Belt Pack:
  • Frequency Band: 1.9 GHz
  • Wireless Range: 300' / 91 m, line of sight
  • Input Connector: 1/8" / 3.5 mm
  • Controls: Volume, Mute
  • Power: 2 x AA batteries, operates up to 8 hours
