Anchor Audio 865270 Beacon 2 Pair AIRFLEX XR2 - Anchor Air / 2-Pack Collar Wireless Microphones
1x Anchor Audio BEA2-XU2 Beacon 2 Portable Sound System
The Anchor Audio BEA2-XU2 Beacon 2 is a portable sound system with built-in Bluetooth. This system has been designed for both indoor venues in large school auditoriums, churches, and fitness centers as well as outdoor events such as sporting events, parades, and other gatherings where up to 2,500 people congregate and need to hear your audio. Its wheels and handle make it ultra portable, and its rechargeable battery means you don't need to frantically search for a power source.
This unit comes with built-in Bluetooth, an AIR wireless transmitter, and a dual wireless microphone receiver. The AIR wireless transmitter allows the Beacon 2 to pair to wireless companion speakers with a built-in AIR wireless receiver, such as the BEA2-R.
1x Anchor Audio BEA2-RU2 Beacon 2 Portable Line Array Tower
The Anchor Audio BEA2-RU2 by Anchor Audio is a portable sound system with built-in Bluetooth. This system has been designed for both indoor venues in large school auditoriums, churches, and fitness centers as well as outdoor events such as sporting events, parades, and other gatherings where up to 2,500 people congregate and need to hear your audio. Its wheels and handle make it ultra portable, and its rechargeable battery means you don't need to frantically search for a power source.
This unit comes with built-in Bluetooth, an AIR wireless receiver, and a dual wireless microphone receiver. The AIR wireless receiver allows the Beacon 2 to function as a wireless companion speaker to a compatible speaker with an AIR wireless transmitter such as the BEA2-X (sold separately).

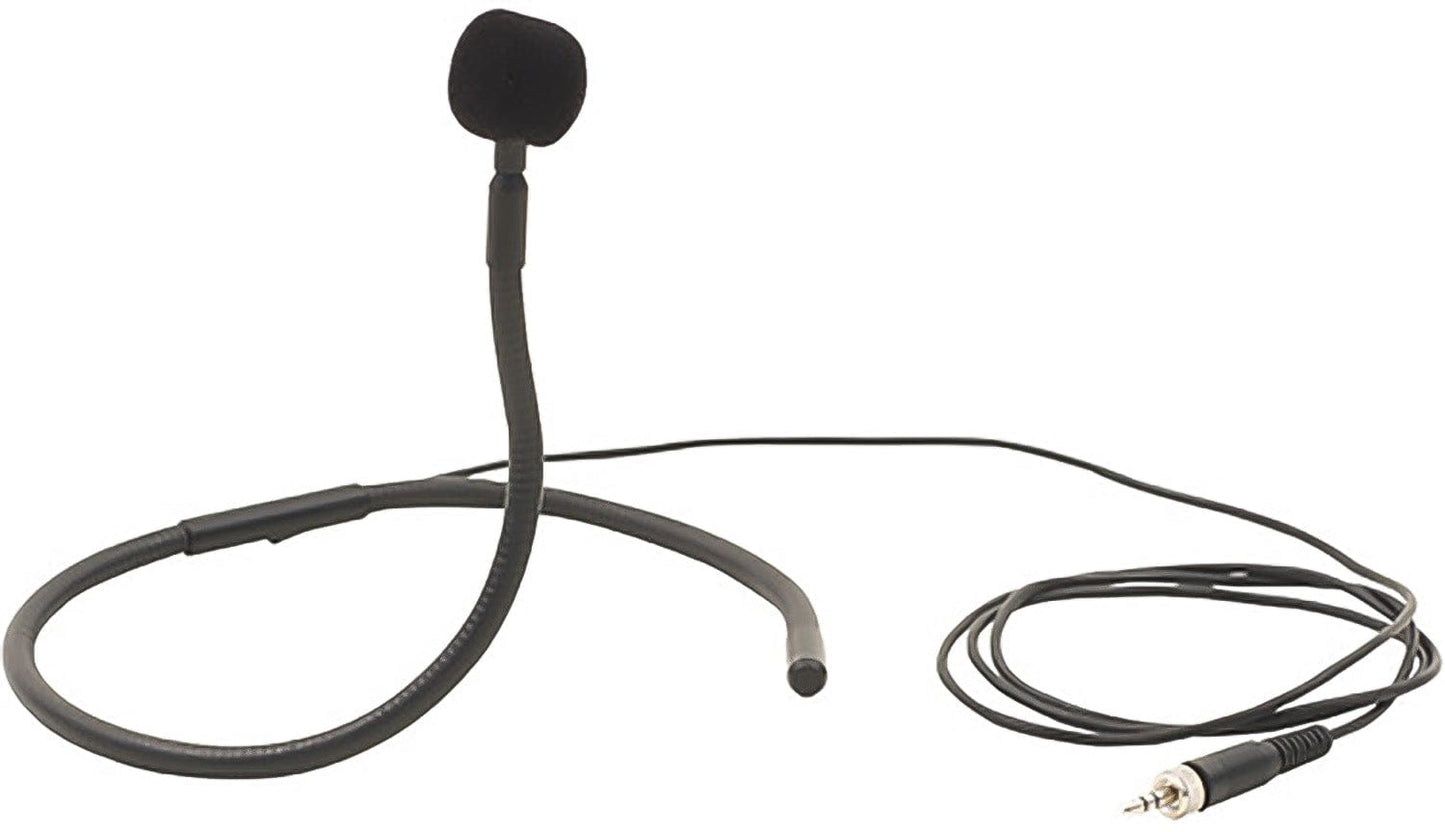

2x Anchor Audio CM-LINK Cardioid Collar Microphone
The CM-LINK is a collar microphone element that can be easily hidden underneath a collared shirt. It has a flexible design for microphone angle adjustment. The collar microphone has a 3.5 mm connector plug.
For a handsfree, wireless experience, use it with a belt pack transmitter such as the: WB-LINK
2x Anchor Audio WB-LINK Wireless Beltpack Transmitter
The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.
For a handsfree, wireless experience, the WB-LINK can be used with microphone elements such as the HBM-LINK, CM-LINK, EM-LINK, and LM-LINK.
Features:
- Anchor Audio BEA2-XU2 Beacon 2 Portable Sound System:
- Reaches crowds up to 2,500+
- 120 dB of clear sound
- 150W AC / 125W DC
- Connect up to two wireless mics
- 1.9 GHz wireless frequency
- Anchor AIR transmitter
- Built-in Class 1 Bluetooth
- Built-in rechargeable Lithium Ion batteries operates 6 - 8 hours on a single charge
- Nylon mic storage bag
- Durable wheels for easy transport
- Base has three 8" neodymium subwoofers
- Lightweight array tower has eight 7" neodymium speakers
- Anchor Audio BEA2-RU2 Beacon 2 Portable Line Array Tower:
- Built-in rechargeable batteries operate 6-8 hours on a single charge.
- One built-in dual wireless mic receiver
- Built-in AIR receiver that wirelessly connects to the Beacon AIR transmitting speaker
- Standard built-in Bluetooth
- Reaches crowds of 2,500+
- 120 dB of clear sound
- 150W AC mode / 125W DC mode
- Two universal microphone input jacks
- 3.5 mm AUX line input
- Lightweight array tower has eight 4" neodymium speakers
- Base has three 8" neodymium subwoofers
- Nylon mesh storage bag
- Durable enclosure with wheels and retractable handle
- Anchor Audio CM-LINK Cardioid Collar Microphone:
- Discreet mic design
- Easily hides under your shirt collar
- Flexible construction for easy angle adjustment
- 3.5 mm connector plug for broad compatibility
- Cardioid polar pattern reduces feedback near speakers
- Ideal for professional presentations, conferences, and public speaking
- Ensures clear, hands-free audio without compromising on style
- For use with the WB-LINK Wireless Beltpack Transmitter
- Works with any transmitter that uses a 3.5 mm connector
- Includes foam windscreen for immediate use
- Anchor Audio WB-LINK Wireless Beltpack Transmitter:
- For AnchorLink-Equipped PA Systems
- 3.5mm Mic Input Connector
- Accepts Lavalier and Headset Mics
- Volume and Mute Controls
- One-Time Pair Function
- Up to 8 Hours of Operation
- 1.9 GHz Wireless Frequency Range
- Automatic Frequency Hopping
- Powered via 2 x AA Batteries
- Includes Belt Clip
Specifications:
- Anchor Audio BEA2-XU2 Beacon 2 Portable Sound System:
- Rated Power Output: 150 watts AC / 125 watts DC
- Max SPL @ Rated Power: 120 dB @ 1 meter
- Battery: Two 12V sealed lead acid rechargeable, 9.0 AH / Full recharge: approx 7 hrs
- Frequency Response: 60 Hz – 15 kHz ± 3dB
- Wireless Range: 150’ line of sight
- Line Output (post fader): isolated, 600 W, 1/4” phone
- AC Power Reqs.: 100 – 240 VAC, 50/60 Hz, 250W max
- USB: 5V 500mA
- Dimensions Closed (HWD): 28” x 18.5” x 11” (71.1 x 47 x 28 cm)
- Dimensions Opened (HWD): 71.5” x 18.5” x 11” (181.6 x 47 x 28 cm)
- Weight: 60 lbs / 27.2 Kg
- Mic Inputs: Lo-Z (1 KW), balanced, XLR
- 12 VDC condenser mic (phantom) power
- Hi-Z (10 KW), unbalanced, 1/4” phone
- Hi-Z (10 KW), unbalanced, 1/8” stereo
- Line In: Stereo RCA, stereo 3.5 mm, 1/4” balanced
- Sensitivity For Rated Output:
- Lo-Z Microphone: -52 dBV (2.5 mVrms)
- Hi-Z Microphone: -43 dBV (7.5 mVrms)
- Auxiliary (line): -14 dBV (200 mVrms)
- Phantom Power: 36V
- Beacon AIR Technical Specifications:
- AIR Frequency Range: 902.000 - 928.000 MHz
- Wireless Range: 300’+ line of sight
- Weight: 73.5 lbs / 33.3 Kg
- Anchor Audio BEA2-RU2 Beacon 2 Portable Line Array Tower:
- Rated Power Output: 200W AC/DC RMS
- Max SPL @ Rated Power: 120 dB @ 1m
- Frequency Response: 55 Hz to 17 kHz, ±3 dB
- Microphone Wireless Frequency: 1.9 GHz DECT
- Microphone Wireless Range: 300'+ line of sight
- Mic Inputs:
- Lo-Z, balanced, XLR & 1/4"
- 34V DC condenser mic (phantom power)
- Hi-Z (10 kΩ), unbalanced, 1/4" phone
- Line Inputs: Balanced mono 1/4" and unbalanced stereo 3.5mm
- Line Output (post fader): Isolated, 600 Ω, 1/4" phone
- Sensitivity for Rated Output:
- Lo-Z Microphone: -52 dBV (2.5 mVrms)
- Hi-Z Microphone: -43 dBV (7.5 mVrms)
- Auxiliary (line): -14 dBV (200 mVrms)
- AC Power Requirements: 100-240 VAC, 50/60 Hz, 250W max
- Battery: Two 12V LFP rechargeable batteries, 7.5 AH
- Anchor AIR Specifications:
- AIR Frequency Range: 902-928 MHz
- AIR Wireless Range: 300'+ line of sight
- Dimensions (H x W x D):
- Closed: 28" x 11" x 18.5" (71.1 x 28 x 47cm)
- Open: 71.5" x 11" x 18.5" (181.6 x 28 x 47cm)
- Weight: 43 lbs (19.5 kg)
- Anchor Audio CM-LINK Cardioid Collar Microphone:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
- Package Weight: 0.47 lb
- Box Dimensions (LxWxH): 8.35 x 6.55 x 2.5"
- Anchor Audio WB-LINK Wireless Beltpack Transmitter:
- Frequency Band: 1.9 GHz
- Wireless Range: 300' / 91 m, line of sight
- Input Connector: 1/8" / 3.5 mm
- Controls:
- Volume
- Mute
- Power:
- 2 x AA batteries
- Operates up to 8 hours
- Packaging Info:
- Package Weight: 0.35 lb
- Box Dimensions (LxWxH): 5.85 x 4.2 x 1.2"
