Anchor Audio 860470 Beacon 2 Pair AIR XR4 - Anchor Air / 4-Pack Collar Wireless Microphones
1x Anchor Audio BEA2-XU4 Beacon 2 Portable Line Array Tower
The Anchor Audio BEA2-XU4 is a Beacon 2 portable line array tower with Bluetooth, an AIR wireless transmitter, and two dual wireless microphone receivers. With 150W of rated output power driving eight 4" neodymium speakers and three 8" woofers and a neodymium compression driver to produce 120 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 2500 people in sports venues, educational facilities, and various indoor and outdoor events.
1x Anchor Audio BEA2-R Beacon 2 Portable Line Array Tower
The Anchor Audio BEA2-R is a Beacon 2 portable line array tower with built-in Bluetooth & AIR wireless receiver. The Speaker Reaches crowds of 2,500+ with its 120 dB of clear sound and powerful 150W AC and 125W DC modes. The built-in rechargeable batteries operate 6 - 8 hours on a single charge. The lightweight array tower has eight 4" neodymium speakers and the base has three 8" neodymium subwoofers. This unit comes with one built-in transmitter that wirelessly connects to one or more Beacon AIR receiver speakers and one built-in receiver that wirelessly connects to the Beacon AIR transmitting speaker.

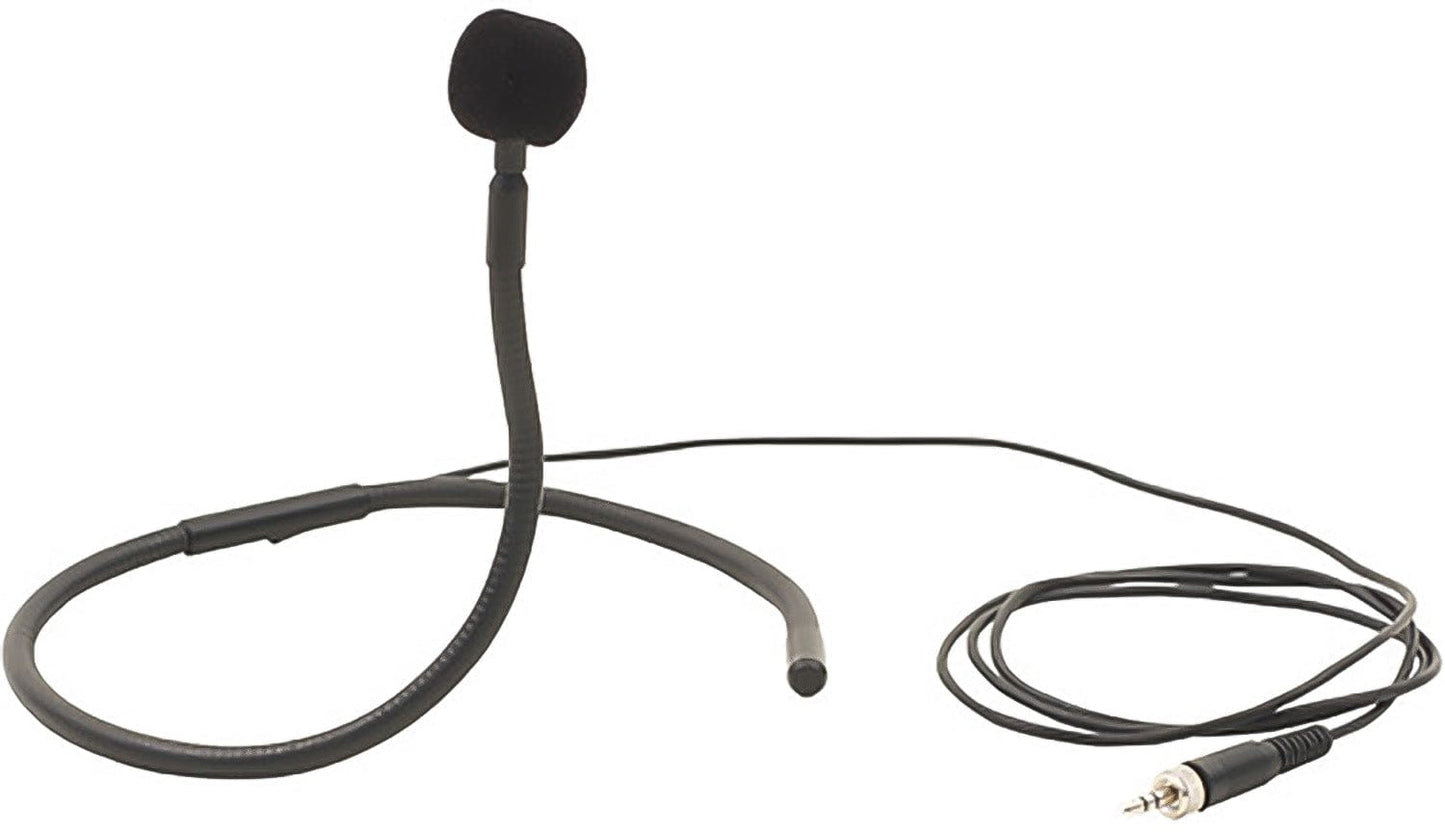

4x Anchor Audio CM-LINK Cardioid Collar Microphone
The CM-LINK is a collar microphone element that can be easily hidden underneath a collared shirt. It has a flexible design for microphone angle adjustment. The collar microphone has a 3.5 mm connector plug.
For a handsfree, wireless experience, use it with a belt pack transmitter such as the: WB-LINK
4x Anchor Audio WB-LINK Wireless Beltpack Transmitter
The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.
For a handsfree, wireless experience, the WB-LINK can be used with microphone elements such as the HBM-LINK, CM-LINK, EM-LINK, and LM-LINK.
Features:
- Anchor Audio BEA2-XU4 Beacon 2 Portable Line Array Tower:
- Reaches crowds up to 2,500+
- 120 dB of clear sound
- 150W AC / 125W DC
- Connect up to four wireless mics
- 1.9 GHz wireless frequency
- Anchor AIR transmitter
- Built-in Class 1 Bluetooth
- Built-in rechargeable Lithium Ion batteries operates 6 - 8 hours on a single charge
- Nylon mic storage bag
- Durable wheels for easy transport
- Base has three 8" neodymium subwoofers
- Lightweight array tower has eight 7" neodymium speakers
- Anchor Audio BEA2-R Beacon 2 Portable Line Array Tower:
- Reaches crowds up to 2,500+
- 120 dB of clear sound
- 150W AC / 125W DC
- Anchor AIR receiver
- Built-in Class 1 Bluetooth
- Built-in rechargeable Lithium Ion batteries operates 6 - 8 hours on a single charge
- Nylon mic storage bag
- Durable wheels for easy transport
- Base has three 8" neodymium subwoofers
- Lightweight array tower has eight 7" neodymium speakers
- Anchor Audio CM-LINK Cardioid Collar Microphone:
- Discreet mic design
- Easily hides under your shirt collar
- Flexible construction for easy angle adjustment
- 3.5 mm connector plug for broad compatibility
- Cardioid polar pattern reduces feedback near speakers
- Ideal for professional presentations, conferences, and public speaking
- Ensures clear, hands-free audio without compromising on style
- For use with the WB-LINK Wireless Beltpack Transmitter
- Works with any transmitter that uses a 3.5 mm connector
- Includes foam windscreen for immediate use
- Anchor Audio WB-LINK Wireless Beltpack Transmitter:
- For AnchorLink-Equipped PA Systems
- 3.5mm Mic Input Connector
- Accepts Lavalier and Headset Mics
- Volume and Mute Controls
- One-Time Pair Function
- Up to 8 Hours of Operation
- 1.9 GHz Wireless Frequency Range
- Automatic Frequency Hopping
- Powered via 2 x AA Batteries
- Includes Belt Clip
Specifications:
- Anchor Audio BEA2-XU4 Beacon 2 Portable Line Array Tower:
- Rated Power Output: 200W AC/DC RMS
- Max SPL @ Rated Power: 120 dB @ 1m
- Frequency Response: 55 Hz to 17 kHz, ±3 dB
- Microphone Wireless Frequency: 1.9 GHz DECT
- Microphone Wireless Range: 300'+ line of sight
- Mic Inputs:
- Lo-Z, balanced, XLR & 1/4"
- 34V DC condenser mic (phantom power)
- Hi-Z (10 kΩ), unbalanced, 1/4" phone
- Line Inputs: Balanced mono 1/4" and unbalanced stereo 3.5mm
- Line Output (post fader): Isolated, 600 Ω, 1/4" phone
- Sensitivity for Rated Output:
- Lo-Z Microphone: -52 dBV (2.5 mVrms)
- Hi-Z Microphone: -43 dBV (7.5 mVrms)
- Auxiliary (line): -14 dBV (200 mVrms)
- AC Power Requirements: 100-240 VAC, 50/60 Hz, 250W max
- Battery: Two 12V LFP rechargeable batteries, 7.5 AH
- Anchor AIR Specifications:
- AIR Frequency Range: 902-928 MHz
- AIR Wireless Range: 300'+ line of sight
- Dimensions (H x W x D):
- Closed: 28" x 11" x 18.5" (71.1 x 28 x 47cm)
- Open: 71.5" x 11" x 18.5" (181.6 x 28 x 47cm)
- Weight: 43 lbs (19.5 kg)
- Anchor Audio BEA2-R Beacon 2 Portable Line Array Tower:
- Rated Power Output: 200W AC/DC RMS
- Max SPL @ Rated Power: 120 dB @ 1m
- Frequency Response: 55 Hz to 17 kHz, ±3 dB
- Mic Inputs:
- Lo-Z, balanced, XLR & 1/4"
- 34V DC condenser mic (phantom power)
- Hi-Z (10 kΩ), unbalanced, 1/4" phone
- Line Inputs: Balanced mono 1/4" and unbalanced stereo 3.5mm
- Line Output (post fader): Isolated, 600 Ω, 1/4" phone
- Sensitivity for Rated Output:
- Lo-Z Microphone: -52 dBV (2.5 mVrms)
- Hi-Z Microphone: -43 dBV (7.5 mVrms)
- Auxiliary (line): -14 dBV (200 mVrms)
- AC Power Requirements: 100-240 VAC, 50/60 Hz, 250W max
- Battery: Two 12V LFP rechargeable batteries, 7.5 AH
- Anchor AIR Specifications:
- AIR Frequency Range: 902-928 MHz
- AIR Wireless Range: 300'+ line of sight
- Dimensions (H x W x D):
- Closed: 28" x 11" x 18.5" (71.1 x 28 x 47cm)
- Open: 71.5" x 11" x 18.5" (181.6 x 28 x 47cm)
- Weight: 43 lbs (19.5 kg)
- Anchor Audio CM-LINK Cardioid Collar Microphone:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
- Package Weight: 0.47 lb
- Box Dimensions (LxWxH): 8.35 x 6.55 x 2.5"
- Anchor Audio WB-LINK Wireless Beltpack Transmitter:
- Frequency Band: 1.9 GHz
- Wireless Range: 300' / 91 m, line of sight
- Input Connector: 1/8" / 3.5 mm
- Controls:
- Volume
- Mute
- Power:
- 2 x AA batteries
- Operates up to 8 hours
- Packaging Info:
- Package Weight: 0.35 lb
- Box Dimensions (LxWxH): 5.85 x 4.2 x 1.2"
