Anchor Audio 860460 Beacon 2 Pair AIR XR4 - Anchor Air / 4-Pack Lapel Wireless Microphones
1x Anchor Audio BEA2-XU4 Beacon 2 Portable Line Array Tower
The Anchor Audio BEA2-XU4 is a Beacon 2 portable line array tower with Bluetooth, an AIR wireless transmitter, and two dual wireless microphone receivers. With 150W of rated output power driving eight 4" neodymium speakers and three 8" woofers and a neodymium compression driver to produce 120 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 2500 people in sports venues, educational facilities, and various indoor and outdoor events.
1x Anchor Audio BEA2-R Beacon 2 Portable Line Array Tower
The Anchor Audio BEA2-R is a Beacon 2 portable line array tower with built-in Bluetooth & AIR wireless receiver. The Speaker Reaches crowds of 2,500+ with its 120 dB of clear sound and powerful 150W AC and 125W DC modes. The built-in rechargeable batteries operate 6 - 8 hours on a single charge. The lightweight array tower has eight 4" neodymium speakers and the base has three 8" neodymium subwoofers. This unit comes with one built-in transmitter that wirelessly connects to one or more Beacon AIR receiver speakers and one built-in receiver that wirelessly connects to the Beacon AIR transmitting speaker.

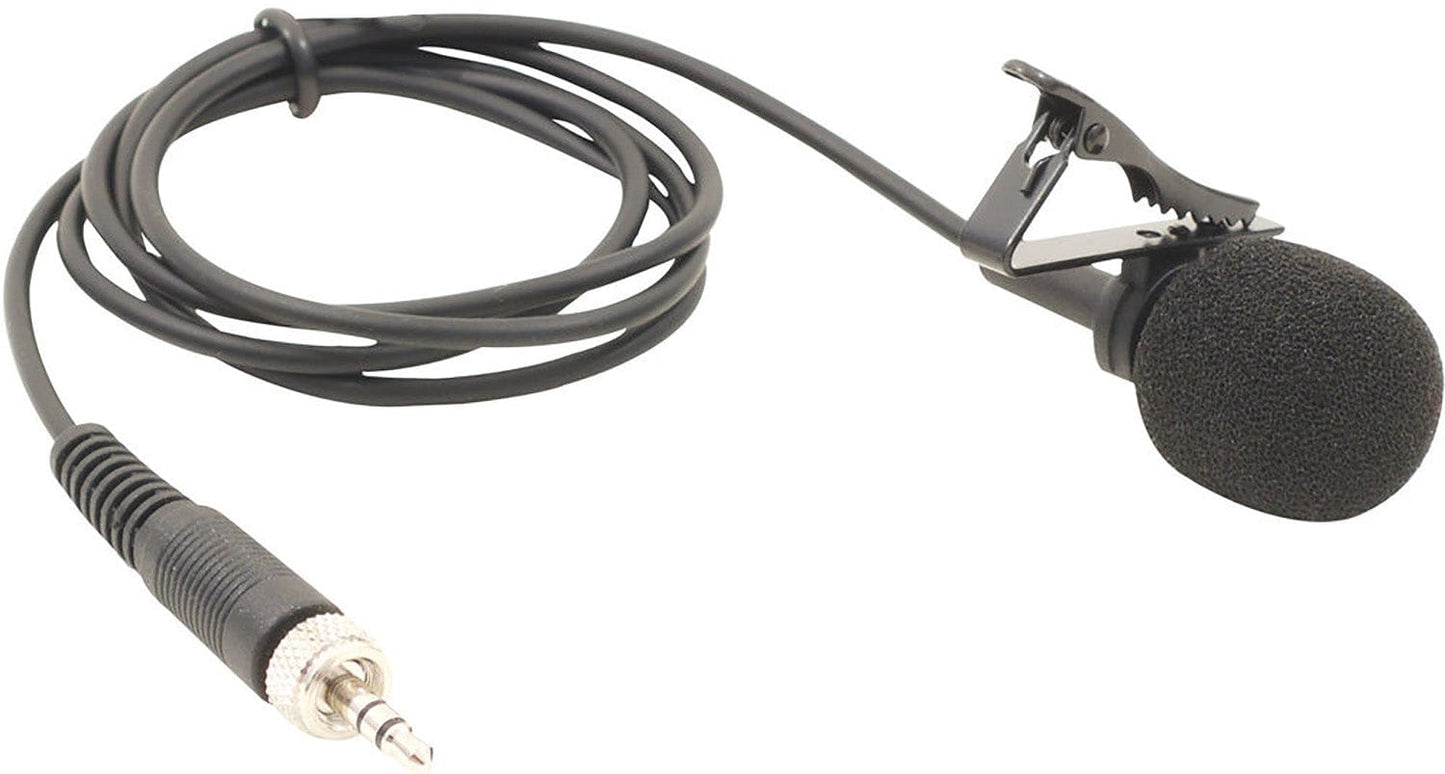

4x Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector
The LM-LINK is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a 3.5 mm connector plug.
For a handsfree, wireless experience, use it with a beltpack transmitter such as the WB-LINK.
4x Anchor Audio WB-LINK Wireless Beltpack Transmitter
The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.
For a handsfree, wireless experience, the WB-LINK can be used with microphone elements such as the HBM-LINK, CM-LINK, EM-LINK, and LM-LINK.
Features:
- Anchor Audio BEA2-XU4 Beacon 2 Portable Line Array Tower:
- Reaches crowds up to 2,500+
- 120 dB of clear sound
- 150W AC / 125W DC
- Connect up to four wireless mics
- 1.9 GHz wireless frequency
- Anchor AIR transmitter
- Built-in Class 1 Bluetooth
- Built-in rechargeable Lithium Ion batteries operates 6 - 8 hours on a single charge
- Nylon mic storage bag
- Durable wheels for easy transport
- Base has three 8" neodymium subwoofers
- Lightweight array tower has eight 7" neodymium speakers
- Anchor Audio BEA2-R Beacon 2 Portable Line Array Tower:
- Reaches crowds up to 2,500+
- 120 dB of clear sound
- 150W AC / 125W DC
- Anchor AIR receiver
- Built-in Class 1 Bluetooth
- Built-in rechargeable Lithium Ion batteries operates 6 - 8 hours on a single charge
- Nylon mic storage bag
- Durable wheels for easy transport
- Base has three 8" neodymium subwoofers
- Lightweight array tower has eight 7" neodymium speakers
- Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
- For Hands-Free Presentations
- Clips to Clothing
- Use with WB-LINK Beltpack Transmitter
- Cardioid Polar Pattern
- 3.5mm Connector
- Anchor Audio WB-LINK Wireless Beltpack Transmitter:
- For AnchorLink-Equipped PA Systems
- 3.5mm Mic Input Connector
- Accepts Lavalier and Headset Mics
- Volume and Mute Controls
- One-Time Pair Function
- Up to 8 Hours of Operation
- 1.9 GHz Wireless Frequency Range
- Automatic Frequency Hopping
- Powered via 2 x AA Batteries
- Includes Belt Clip
Specifications:
- Anchor Audio BEA2-XU4 Beacon 2 Portable Line Array Tower:
- Rated Power Output: 200W AC/DC RMS
- Max SPL @ Rated Power: 120 dB @ 1m
- Frequency Response: 55 Hz to 17 kHz, ±3 dB
- Microphone Wireless Frequency: 1.9 GHz DECT
- Microphone Wireless Range: 300'+ line of sight
- Mic Inputs:
- Lo-Z, balanced, XLR & 1/4"
- 34V DC condenser mic (phantom power)
- Hi-Z (10 kΩ), unbalanced, 1/4" phone
- Line Inputs: Balanced mono 1/4" and unbalanced stereo 3.5mm
- Line Output (post fader): Isolated, 600 Ω, 1/4" phone
- Sensitivity for Rated Output:
- Lo-Z Microphone: -52 dBV (2.5 mVrms)
- Hi-Z Microphone: -43 dBV (7.5 mVrms)
- Auxiliary (line): -14 dBV (200 mVrms)
- AC Power Requirements: 100-240 VAC, 50/60 Hz, 250W max
- Battery: Two 12V LFP rechargeable batteries, 7.5 AH
- Anchor AIR Specifications:
- AIR Frequency Range: 902-928 MHz
- AIR Wireless Range: 300'+ line of sight
- Dimensions (H x W x D):
- Closed: 28" x 11" x 18.5" (71.1 x 28 x 47cm)
- Open: 71.5" x 11" x 18.5" (181.6 x 28 x 47cm)
- Weight: 43 lbs (19.5 kg)
- Anchor Audio BEA2-R Beacon 2 Portable Line Array Tower:
- Rated Power Output: 200W AC/DC RMS
- Max SPL @ Rated Power: 120 dB @ 1m
- Frequency Response: 55 Hz to 17 kHz, ±3 dB
- Mic Inputs:
- Lo-Z, balanced, XLR & 1/4"
- 34V DC condenser mic (phantom power)
- Hi-Z (10 kΩ), unbalanced, 1/4" phone
- Line Inputs: Balanced mono 1/4" and unbalanced stereo 3.5mm
- Line Output (post fader): Isolated, 600 Ω, 1/4" phone
- Sensitivity for Rated Output:
- Lo-Z Microphone: -52 dBV (2.5 mVrms)
- Hi-Z Microphone: -43 dBV (7.5 mVrms)
- Auxiliary (line): -14 dBV (200 mVrms)
- AC Power Requirements: 100-240 VAC, 50/60 Hz, 250W max
- Battery: Two 12V LFP rechargeable batteries, 7.5 AH
- Anchor AIR Specifications:
- AIR Frequency Range: 902-928 MHz
- AIR Wireless Range: 300'+ line of sight
- Dimensions (H x W x D):
- Closed: 28" x 11" x 18.5" (71.1 x 28 x 47cm)
- Open: 71.5" x 11" x 18.5" (181.6 x 28 x 47cm)
- Weight: 43 lbs (19.5 kg)
- Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
- Package Weight: 0.13 lb
- Box Dimensions (LxWxH): 4.2 x 2.95 x 2.5"
- Anchor Audio WB-LINK Wireless Beltpack Transmitter:
- Frequency Band: 1.9 GHz
- Wireless Range: 300' / 91 m, line of sight
- Input Connector: 1/8" / 3.5 mm
- Controls:
- Volume
- Mute
- Power:
- 2 x AA batteries
- Operates up to 8 hours
- Packaging Info:
- Package Weight: 0.35 lb
- Box Dimensions (LxWxH): 5.85 x 4.2 x 1.2"
