Anchor Audio 860260 Beacon 2 Pair AIR XR2 - Anchor Air / 2x Headband Wireless Microphones
1x Anchor Audio BEA2-XU2 Beacon 2
The Anchor Audio BEA2-XU2 is a Beacon 2 portable line array tower equipped with Bluetooth, an AIR wireless transmitter, and a dual wireless microphone receiver. Powered by 150W of output, it drives eight 4" neodymium speakers, three 8" woofers, and a neodymium compression driver, delivering up to 120 dB SPL. This robust sound system is built to provide clear and powerful amplification for audiences of up to 2500 people, making it ideal for use in sports venues, schools, and a variety of indoor and outdoor events.
1x Anchor Audio BEA2-R Beacon 2
The Anchor Audio BEA2-R is a Beacon 2 portable line array tower featuring Bluetooth and an AIR wireless receiver. It offers 150W of output power, powering eight 4" neodymium speakers, three 8" woofers, and a neodymium compression driver to deliver up to 120 dB SPL. Engineered for versatile and powerful amplification, it is suitable for crowds of up to 2500 people, making it ideal for sports venues, educational institutions, and a variety of indoor and outdoor events.

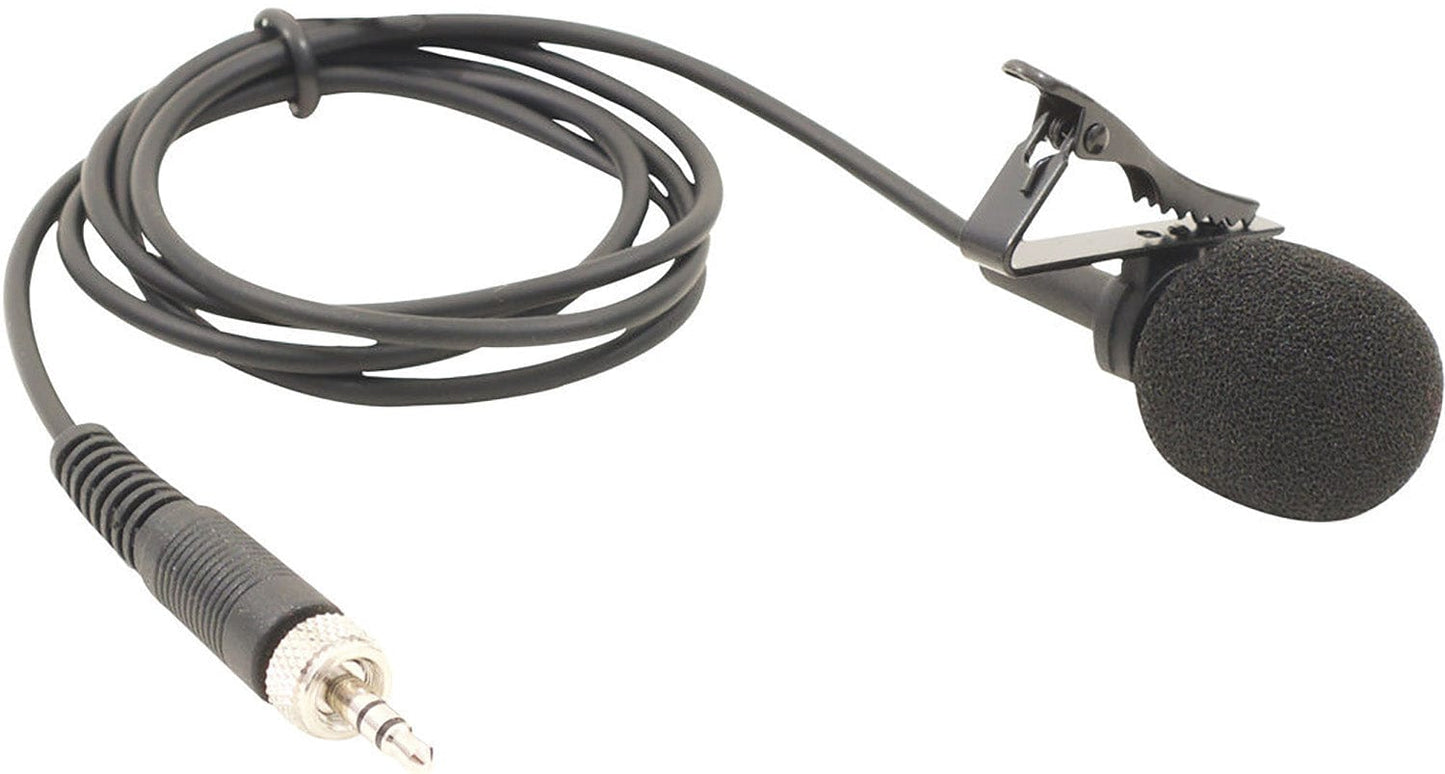

2x Anchor Audio Lapel Microphone Element for WB-Link
The Anchor Audio LM-LINK is a lavalier microphone designed for speakers who prefer the hands-free convenience of a wearable mic. It includes a 3.5mm connector for compatibility with the AnchorLink Series WB-LINK bodypack transmitter. Featuring a cardioid polar pattern, the LM-LINK is engineered to minimize unwanted feedback when positioned near a speaker. Additionally, it comes with a clip and a foam windscreen for added convenience and versatility.
2x Anchor Audio Wireless Belt Pack
The Anchor Audio WB-LINK is a wireless bodypack transmitter designed for use with sound and PA systems that feature AnchorLink Series receivers. Operating in the less-crowded 1.9 GHz frequency range, it utilizes automatic frequency hopping to ensure a clear, interference-free signal with a transmission range of up to 300 feet.
Features:
- Anchor Audio BEA2-XU2 Beacon 2:
- 150W of rated output power through eight 4" neodymium speakers and three 8" neodymium woofers
- 120 dB maximum SPL reaches crowds of up to 2500 people
- Folds down to 28" high for easy transport and unfolds to 71.5" in seconds for fast setup
- Built-in Class-1 Bluetooth for streaming music from a mobile device
- Includes an AIR wireless transmitter for cord-free connection to a companion speaker
- Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver
- Built-in rechargeable lithium-ion batteries provide approximately six to eight hours of operating time on a single charge
- Nylon microphone storage bag
- Heavy-duty wheels and carry handle
- Made in the USA
- Anchor Audio BEA2-R Beacon 2:
- Reaches Crowds: Up to 2500 People
- Integrated Handle and Rolling Wheels
- Built-In Bluetooth Receiver
- AIR Wireless Receiver
- Output Power: 150W of Rated Output
- Speakers:
- 8 x 4" Speakers
- 3 x 8" Woofers
- Integrated Mixer & 2-Band Equalizer
- Built-In Rechargeable Batteries
- Inputs:
- XLR
- 1/4"
- 3.5mm
- Output: 1/4"
- Anchor Audio Lapel Microphone Element for WB-Link:
- For Hands-Free Presentations
- Clips to Clothing
- Use with WB-LINK Beltpack Transmitter
- Polar Pattern:
- Cardioid
- Connector:
- 3.5mm
- Includes:
- Clip
- Foam Windscreen
- Anchor Audio Wireless Belt Pack:
- For AnchorLink-Equipped PA Systems
- 3.5mm Mic Input Connector
- Accepts Lavalier and Headset Mics
- Volume and Mute Controls
- One-Time Pair Function
- Up to 8 Hours of Operation
- 1.9 GHz Wireless Frequency Range
- Automatic Frequency Hopping
- Powered via 2 x AA Batteries
- Includes Belt Clip
Specifications:
- Anchor Audio BEA2-XU2 Beacon 2:
- Amplifier Power Rating
- 150 W (AC Power)
- 125 W (Battery Power)
- LF Driver
- 3x 8" / 20.3 cm Woofer
- Audio I/O
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Unbalanced Line Input
- 1x 1/4" TRS Balanced Line Output
- Wireless Transmission
- 1.9 GHz
- Portable PA System
- 150 W (AC Power)
- 125 W (Battery Power)
- Speakers
- Full-Range Driver: 8x 4" / 10.2 cm
- LF Driver: 3x 8" / 20.3 cm Woofer
- Magnet: Neodymium
- Performance
- Frequency Response: 60 Hz to 15 kHz ±3 dB
- Maximum SPL: 120 dB
- Input Sensitivity:
- Lo-Z Mic Input: -52 dBV / 2.5 mVrms
- Hi-Z Mic Input: -43 dBV / 7.5 mVrms
- Aux Input: -14 dBV / 200 mVrms
- I/O Impedance:
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Connectivity
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Unbalanced Line Input
- 1x 1/4" TRS Balanced Line Output
- Phantom Power: +12 V
- Wireless
- Wireless Transmission: 1.9 GHz
- Max Wireless Range: RF Wireless: 300' / 91.4 m (Line of Sight)
- RF Frequency Band: 902 to 928 MHz
- Bluetooth Power Class: 1
- Power
- Battery Type: 2x Built-In Rechargeable 12 V Lithium-Ion
- Approximate Battery Life: 8 Hours
- Internal Battery Capacity: 7 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Power Consumption: 250 W (Max)
- Physical
- Environmental Resistance: No
- Dimensions (Collapsed): 28 x 11 x 18.5" / 71.1 x 27.9 x 47 cm
- Dimensions (Full Assembly): 71.5 x 11 x 18.5" / 181.6 x 27.9 x 47 cm
- Weight: 43 lb / 19.5 kg
- Anchor Audio BEA2-R Beacon 2:
- Amplifier Power Rating:
- 150 W (AC Power)
- 125 W (Battery Power)
- LF Driver:
- 3x 8" / 20.3 cm Woofer
- Audio I/O:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Unbalanced Line Input
- 1x 1/4" TRS Balanced Line Output
- Wireless Transmission:
- 1.9 GHz
- Anchor Audio Lapel Microphone Element for WB-Link:
- Polar Pattern:
- Cardioid
- Connector:
- 1/8" / 3.5 mm
- Anchor Audio Wireless Belt Pack:
- Frequency Band:
- 1.9 GHz
- Wireless Range:
- 300' / 91 m, line of sight
- Input Connector:
- 1/8" / 3.5 mm
- Controls:
- Volume
- Mute
- Power:
- 2 x AA batteries
- Operates up to 8 hours
- 150W of rated output power through eight 4" neodymium speakers and three 8" neodymium woofers
- 120 dB maximum SPL reaches crowds of up to 2500 people
- Folds down to 28" high for easy transport and unfolds to 71.5" in seconds for fast setup
- Built-in Class-1 Bluetooth for streaming music from a mobile device
- Includes an AIR wireless transmitter for cord-free connection to a companion speaker
- Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver
- Built-in rechargeable lithium-ion batteries provide approximately six to eight hours of operating time on a single charge
- Nylon microphone storage bag
- Heavy-duty wheels and carry handle
- Made in the USA
- Reaches Crowds: Up to 2500 People
- Integrated Handle and Rolling Wheels
- Built-In Bluetooth Receiver
- AIR Wireless Receiver
- Output Power: 150W of Rated Output
- Speakers:
- 8 x 4" Speakers
- 3 x 8" Woofers
- Integrated Mixer & 2-Band Equalizer
- Built-In Rechargeable Batteries
- Inputs:
- XLR
- 1/4"
- 3.5mm
- Output: 1/4"
- For Hands-Free Presentations
- Clips to Clothing
- Use with WB-LINK Beltpack Transmitter
- Polar Pattern:
- Cardioid
- Connector:
- 3.5mm
- Includes:
- Clip
- Foam Windscreen
- For AnchorLink-Equipped PA Systems
- 3.5mm Mic Input Connector
- Accepts Lavalier and Headset Mics
- Volume and Mute Controls
- One-Time Pair Function
- Up to 8 Hours of Operation
- 1.9 GHz Wireless Frequency Range
- Automatic Frequency Hopping
- Powered via 2 x AA Batteries
- Includes Belt Clip
- Anchor Audio BEA2-XU2 Beacon 2:
- Amplifier Power Rating
- 150 W (AC Power)
- 125 W (Battery Power)
- LF Driver
- 3x 8" / 20.3 cm Woofer
- Audio I/O
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Unbalanced Line Input
- 1x 1/4" TRS Balanced Line Output
- Wireless Transmission
- 1.9 GHz
- Portable PA System
- 150 W (AC Power)
- 125 W (Battery Power)
- Speakers
- Full-Range Driver: 8x 4" / 10.2 cm
- LF Driver: 3x 8" / 20.3 cm Woofer
- Magnet: Neodymium
- Performance
- Frequency Response: 60 Hz to 15 kHz ±3 dB
- Maximum SPL: 120 dB
- Input Sensitivity:
- Lo-Z Mic Input: -52 dBV / 2.5 mVrms
- Hi-Z Mic Input: -43 dBV / 7.5 mVrms
- Aux Input: -14 dBV / 200 mVrms
- I/O Impedance:
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Connectivity
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Unbalanced Line Input
- 1x 1/4" TRS Balanced Line Output
- Phantom Power: +12 V
- Wireless
- Wireless Transmission: 1.9 GHz
- Max Wireless Range: RF Wireless: 300' / 91.4 m (Line of Sight)
- RF Frequency Band: 902 to 928 MHz
- Bluetooth Power Class: 1
- Power
- Battery Type: 2x Built-In Rechargeable 12 V Lithium-Ion
- Approximate Battery Life: 8 Hours
- Internal Battery Capacity: 7 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Power Consumption: 250 W (Max)
- Physical
- Environmental Resistance: No
- Dimensions (Collapsed): 28 x 11 x 18.5" / 71.1 x 27.9 x 47 cm
- Dimensions (Full Assembly): 71.5 x 11 x 18.5" / 181.6 x 27.9 x 47 cm
- Weight: 43 lb / 19.5 kg
- Anchor Audio BEA2-R Beacon 2:
- Amplifier Power Rating:
- 150 W (AC Power)
- 125 W (Battery Power)
- LF Driver:
- 3x 8" / 20.3 cm Woofer
- Audio I/O:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Unbalanced Line Input
- 1x 1/4" TRS Balanced Line Output
- Wireless Transmission:
- 1.9 GHz
- Anchor Audio Lapel Microphone Element for WB-Link:
- Polar Pattern:
- Cardioid
- Connector:
- 1/8" / 3.5 mm
- Anchor Audio Wireless Belt Pack:
- Frequency Band:
- 1.9 GHz
- Wireless Range:
- 300' / 91 m, line of sight
- Input Connector:
- 1/8" / 3.5 mm
- Controls:
- Volume
- Mute
- Power:
- 2 x AA batteries
- Operates up to 8 hours
