Anchor Audio 815439 Beacon 2 System X4 - Anchor Air / 3x Handheld / 1x Lapel / 1x Headband Mics

Anchor Audio 815439 Beacon 2 System X4 - Anchor Air / 3x Handheld / 1x Lapel / 1x Headband Microphones

1x Anchor Audio BEA2-XU4 Beacon 2 Portable Line Array Tower with Bluetooth, AIR Transmitter & Two Dual Mic Receivers

The Anchor Audio BEA2-XU4 is a Beacon 2 portable line array tower equipped with Bluetooth, an AIR wireless transmitter, and two dual wireless microphone receivers. Boasting 150W of rated output power, it drives eight 4" neodymium speakers, three 8" woofers, and a neodymium compression driver to deliver 120 dB SPL. This powerful system is designed to provide clear and dynamic amplification for crowds of up to 2,500 people, making it perfect for sports venues, educational facilities, and a wide range of indoor and outdoor events, ensuring versatile and impactful sound coverage.

3x WH-LINK - Wireless Handheld Microphone

The WH-LINK is a wireless handheld microphone with a sleek and lightweight design. It operates on the 1.9 GHz frequency. The WH-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. The WH-LINK handheld microphone is used with the AnchorLink series.

1x LM-LINK - Lapel mic 3.5 mm plug

The LM-LINK is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a 3.5 mm connector plug.

1x HBM-LINK - Headband Microphone with 3.5mm plug

The HBM-LINK follows your head when turned and flawlessly tracks your voice. Wear it around the back of head and over your ears, so the microphone is resting right in front of your mouth. The headband microphone has a 3.5 mm connector plug.

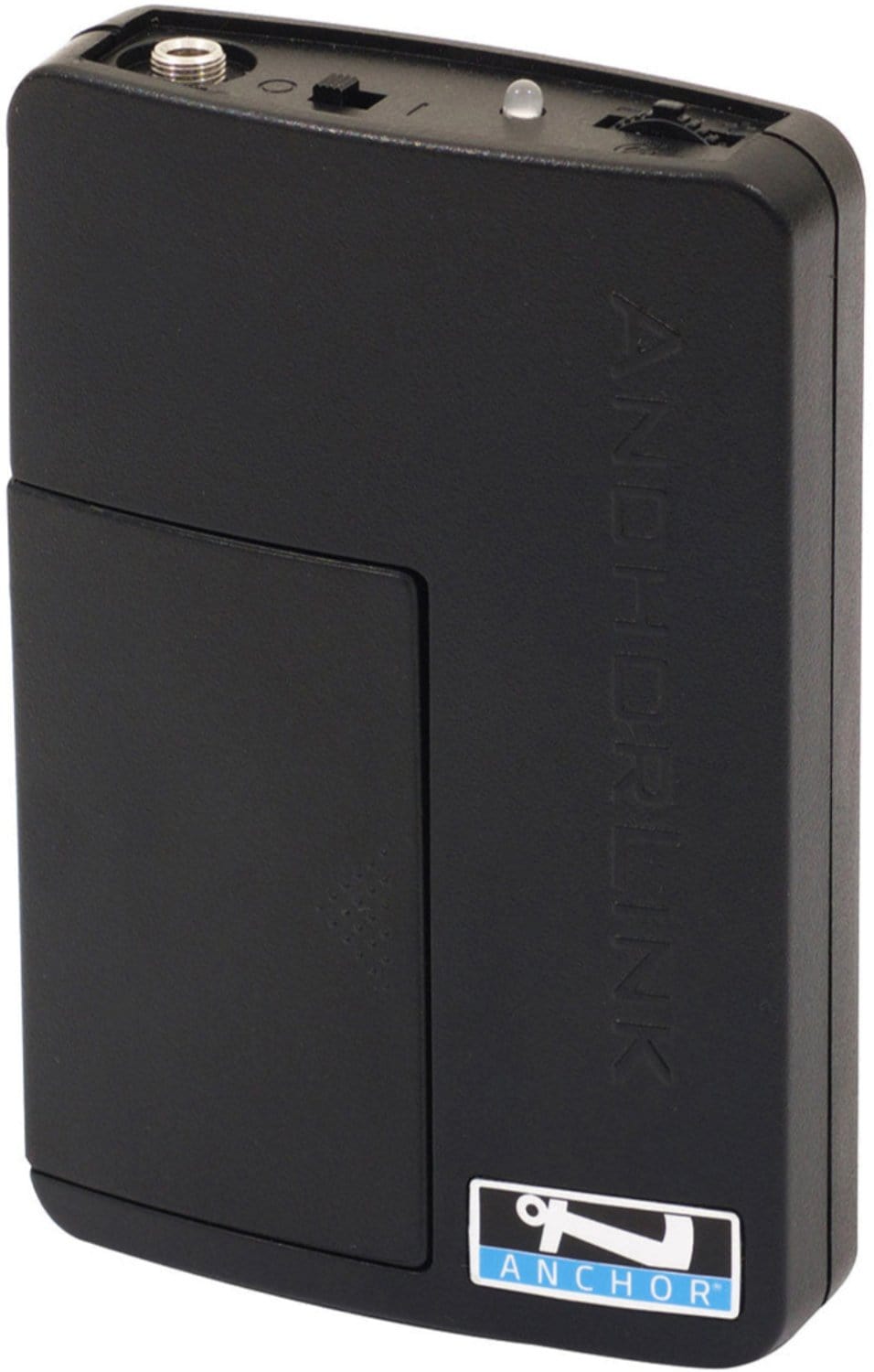

1x WB-LINK - Wireless belt pack transmitter

The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.

Features:

• BEA2-XU4:
  • Reaches Crowds of up to 2500 People
  • Integrated Handle and Rolling Wheels
  • Built-In Bluetooth Receiver
  • AIR Wireless Transmitter
  • Two Dual Wireless Mic Receivers
  • 150W of Rated Output Power
  • 8 x 4" Speakers, 3 x 8" Woofers
  • Integrated Mixer & 2-Band Equalizer
  • Built-In Rechargeable Batteries
  • XLR, 1/4" & 3.5mm Inputs, 1/4" Output
• WH-LINK:
  • Classic wireless handheld microphone
  • For AnchorLink-equipped PA systems
  • Volume and mute controls
  • One-time pair function
  • Up to 8 hours of operation
  • 1.9 GHz wireless frequency range
  • Automatic frequency hopping
  • Lightweight design
  • Powered via 2 x AA batteries
• LM-LINK:
  • For Hands-Free Presentations
  • Clips to Clothing
  • Use with WB-LINK Beltpack Transmitter
  • Cardioid Polar Pattern
  • 3.5mm Connector
  • Includes Clip and Foam Windscreen
• HBM-LINK:
  • For Hands-Free Presentations
  • Use with WB-LINK Beltpack Transmitter
  • Cardioid Polar Pattern
  • 3.5mm Connector
• WB-LINK:
  • For AnchorLink-Equipped PA Systems
  • 3.5mm Mic Input Connector
  • Accepts Lavalier and Headset Mics
  • Volume and Mute Controls
  • One-Time Pair Function
  • Up to 8 Hours of Operation
  • 1.9 GHz Wireless Frequency Range
  • Automatic Frequency Hopping
  • Powered via 2 x AA Batteries
  • Includes Belt Clip

Specifications:

• BEA2-XU4:
  • Portable PA System:
    • Amplifier Power Rating:
      • 150 W (AC Power)
      • 125 W (Battery Power)
  • Speakers:
    • Full-Range Driver: 8x 4" / 10.2 cm
    • LF Driver: 3x 8" / 20.3 cm Woofer
    • Magnet: Neodymium
  • Performance:
    • Frequency Response: 60 Hz to 15 kHz ±3 dB
    • Maximum SPL: 120 dB
    • Input Sensitivity:
      • Lo-Z Mic Input: -52 dBV / 2.5 mVrms
      • Hi-Z Mic Input: -43 dBV / 7.5 mVrms
      • Aux Input: -14 dBV / 200 mVrms
    • I/O Impedance:
      • Hi-Z Input: 10 Kilohms
      • Low-Z Input: 1 Kilohms
      • Line Output: 600 Ohms
  • Connectivity:
    • Audio I/O:
      • 2x Combo XLR-1/4" TRS Balanced Mic Input
      • 1x 1/4" TS Unbalanced Line Input
      • 1x 1/8" / 3.5 mm TRS Unbalanced Line Input
      • 1x 1/4" TRS Balanced Line Output
    • Phantom Power: +12 V
  • Wireless:
    • Wireless Transmission: 1.9 GHz
    • Max Wireless Range: RF Wireless: 300' / 91.4 m (Line of Sight)
    • RF Frequency Band: 902 to 928 MHz
    • Bluetooth Power Class: 1
  • Power:
    • Battery Type: 2x Built-In Rechargeable 12 V Lithium-Ion
    • Approximate Battery Life: 8 Hours
    • Internal Battery Capacity: 7 Ah
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
    • Power Consumption: 250 W (Max)
  • Physical:
    • Environmental Resistance: No
    • Dimensions:
      • 28 x 11 x 18.5" / 71.1 x 27.9 x 47 cm (Collapsed)
      • 71.5 x 11 x 18.5" / 181.6 x 27.9 x 47 cm (Full Assembly)
    • Weight: 43 lb / 19.5 kg
• LM-LINK:
  • Polar Pattern: Cardioid
  • Connector: 1/8" / 3.5 mm
• WH-LINK, HBM-LINK & WB-LINK:
  • Frequency Band: 1.9 GHz
  • Wireless Range: 300' / 91 m, line of sight
  • Controls: Volume, Mute
  • Power: 2 x AA batteries
  • Operates up to 8 hours
