Anchor Audio 814260 Beacon 2 System X2 - Anchor Air / 2x Lapel Wireless Microphones

Anchor Audio 814260 Beacon 2 System X2 - Anchor Air / 2x Lapel Wireless Microphones

1x Anchor Audio BEA2-XU2 Beacon 2 PA with Bluetooth

The Anchor Audio BEA2-XU2 is a Beacon 2 portable line array tower with Bluetooth, an AIR wireless transmitter, and a dual wireless microphone receiver. With 150W of rated output power driving eight 4" neodymium speakers and three 8" woofers and a neodymium compression driver to produce 120 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 2500 people in sports venues, educational facilities, and various indoor and outdoor events.

2x Anchor Audio Lapel Microphone Element

The Anchor Audio LM-LINK is a lavalier microphone designed for speakers who prefer the hands-free convenience of a wearable mic. It includes a 3.5mm connector for compatibility with the AnchorLink Series WB-LINK bodypack transmitter. Featuring a cardioid polar pattern, the LM-LINK is engineered to minimize unwanted feedback when positioned near a speaker. Additionally, it comes with a clip and a foam windscreen for added convenience and versatility.

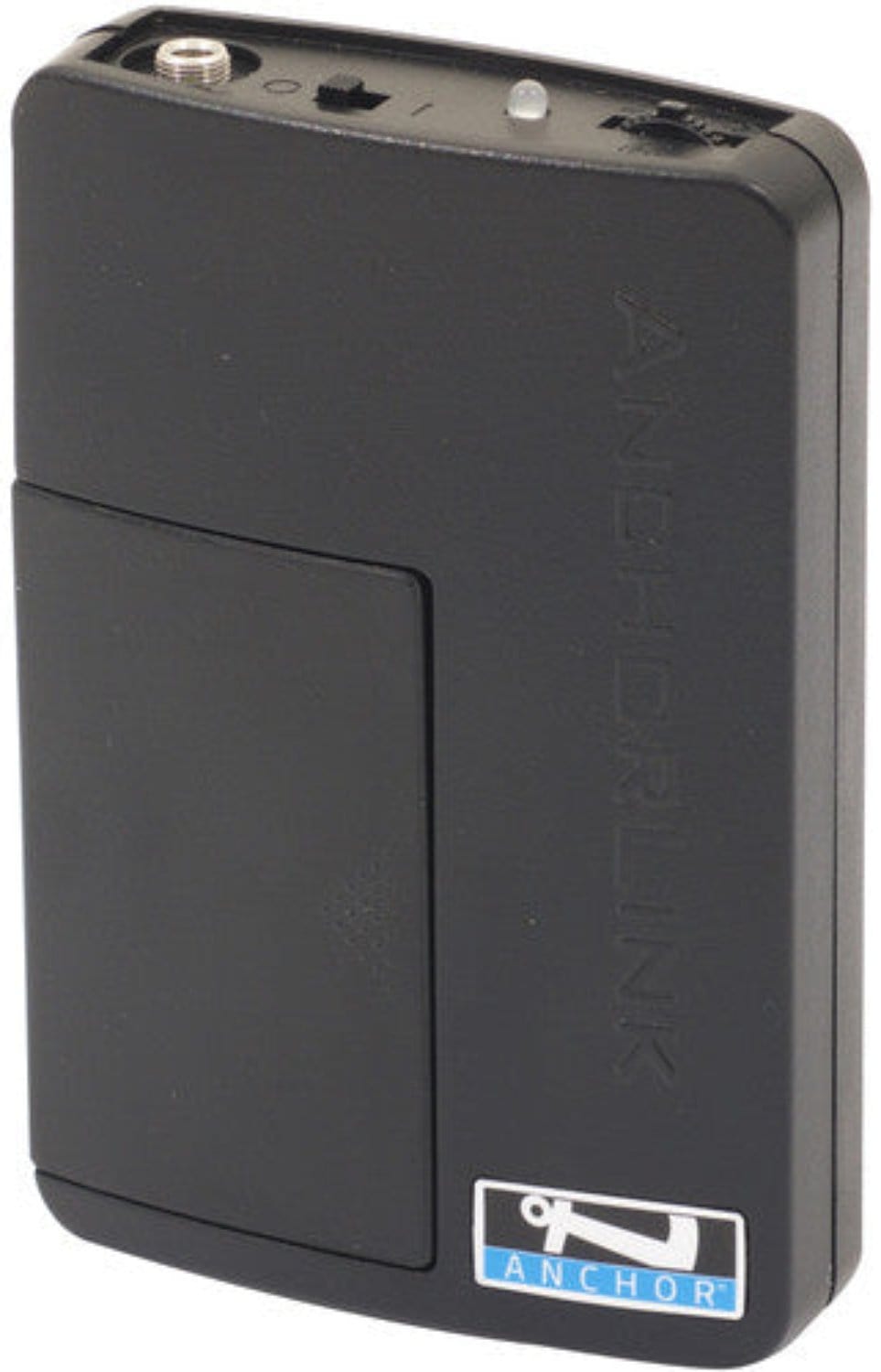

2x Anchor Audio Wireless Belt Pack

The Anchor Audio WB-LINK is a wireless bodypack transmitter designed for use with sound and PA systems that feature AnchorLink Series receivers. Operating in the less-crowded 1.9 GHz frequency range, it utilizes automatic frequency hopping to ensure a clear, interference-free signal with a transmission range of up to 300 feet.

Features:

• Anchor Audio BEA2-XU2 Beacon 2 PA with Bluetooth:
• Reaches Crowds of up to 2500 People
• Integrated Handle and Rolling Wheels
• Built-In Bluetooth Receiver
• AIR Wireless Transmitter
• Dual Wireless Mic Receiver
• 150W of Rated Output Power
• 8 x 4" Speakers, 3 x 8" Woofers
• Integrated Mixer & 2-Band Equalizer
• Built-In Rechargeable Batteries
• XLR, 1/4" & 3.5mm Inputs, 1/4" Output
• Anchor Audio Lapel Microphone Element:
• For Hands-Free Presentations
• Clips to Clothing
• Use with WB-LINK Beltpack Transmitter
• Anchor Audio Wireless Belt Pack:
• For AnchorLink-Equipped PA Systems
• 3.5mm Mic Input Connector
• Accepts Lavalier and Headset Mics
• Volume and Mute Controls
• One-Time Pair Function
• Up to 8 Hours of Operation
• 1.9 GHz Wireless Frequency Range
• Automatic Frequency Hopping
• Powered via 2 x AA Batteries
• Includes Belt Clip

Specifications:

• Anchor Audio BEA2-XU2 Beacon 2 PA with Bluetooth:
• Amplifier Power Rating: 150 W (AC Power), 125 W (Battery Power)
• Full-Range Driver: 8x 4" / 10.2 cm
• LF Driver: 3x 8" / 20.3 cm Woofer
• Magnet: Neodymium
• Frequency Response: 60 Hz to 15 kHz ±3 dB
• Maximum SPL: 120 dB
• Lo-Z Mic Input: -52 dBV / 2.5 mVrms
• Hi-Z Mic Input: -43 dBV / 7.5 mVrms
• Aux Input: -14 dBV / 200 mVrms
• Hi-Z Input: 10 Kilohms
• Low-Z Input: 1 Kilohms
• Line Output: 600 Ohms
• 2x Combo XLR-1/4" TRS Balanced Mic Input
• 1x 1/4" TS Unbalanced Line Input
• 1x 1/8" / 3.5 mm TRS Unbalanced Line Input
• 1x 1/4" TRS Balanced Line Output
• Phantom Power: +12 V
• Wireless Transmission: 1.9 GHz
• Max Wireless Range: 300' / 91.4 m (Line of Sight)
• RF Frequency Band: 902 to 928 MHz
• Bluetooth Power Class: 1
• Battery Type: 2x Built-In Rechargeable 12 V Lithium-Ion
• Approximate Battery Life: 8 Hours
• Internal Battery Capacity: 7 Ah
• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• Power Consumption: 250 W (Max)
• Environmental Resistance: No
• Dimensions: 28 x 11 x 18.5" / 71.1 x 27.9 x 47 cm (Collapsed)
• Dimensions: 71.5 x 11 x 18.5" / 181.6 x 27.9 x 47 cm (Full Assembly)
• Weight: 43 lb / 19.5 kg
• Anchor Audio Lapel Microphone Element:
• Polar Pattern: Cardioid
• Connector: 1/8" / 3.5 mm
• Anchor Audio Wireless Belt Pack:
• Frequency Band: 1.9 GHz
• Wireless Range: 300' / 91 m, line of sight
• Input Connector: 1/8" / 3.5 mm
• Volume and Mute Controls
• Powered via 2 x AA batteries
• Operates up to 8 hours
