Anchor Audio 814170 Beacon 2 System X1 - Anchor Air / Collar Wireless Microphone

Anchor Audio 814170 Beacon 2 System X1 - Anchor Air / Collar Wireless Microphone

1x Anchor Audio BEA2-XU2 Beacon 2 PA with Bluetooth

The Anchor Audio BEA2-XU2 is a Beacon 2 portable line array tower with Bluetooth, an AIR wireless transmitter, and a dual wireless microphone receiver. With 150W of rated output power driving eight 4" neodymium speakers and three 8" woofers and a neodymium compression driver to produce 120 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 2500 people in sports venues, educational facilities, and various indoor and outdoor events.

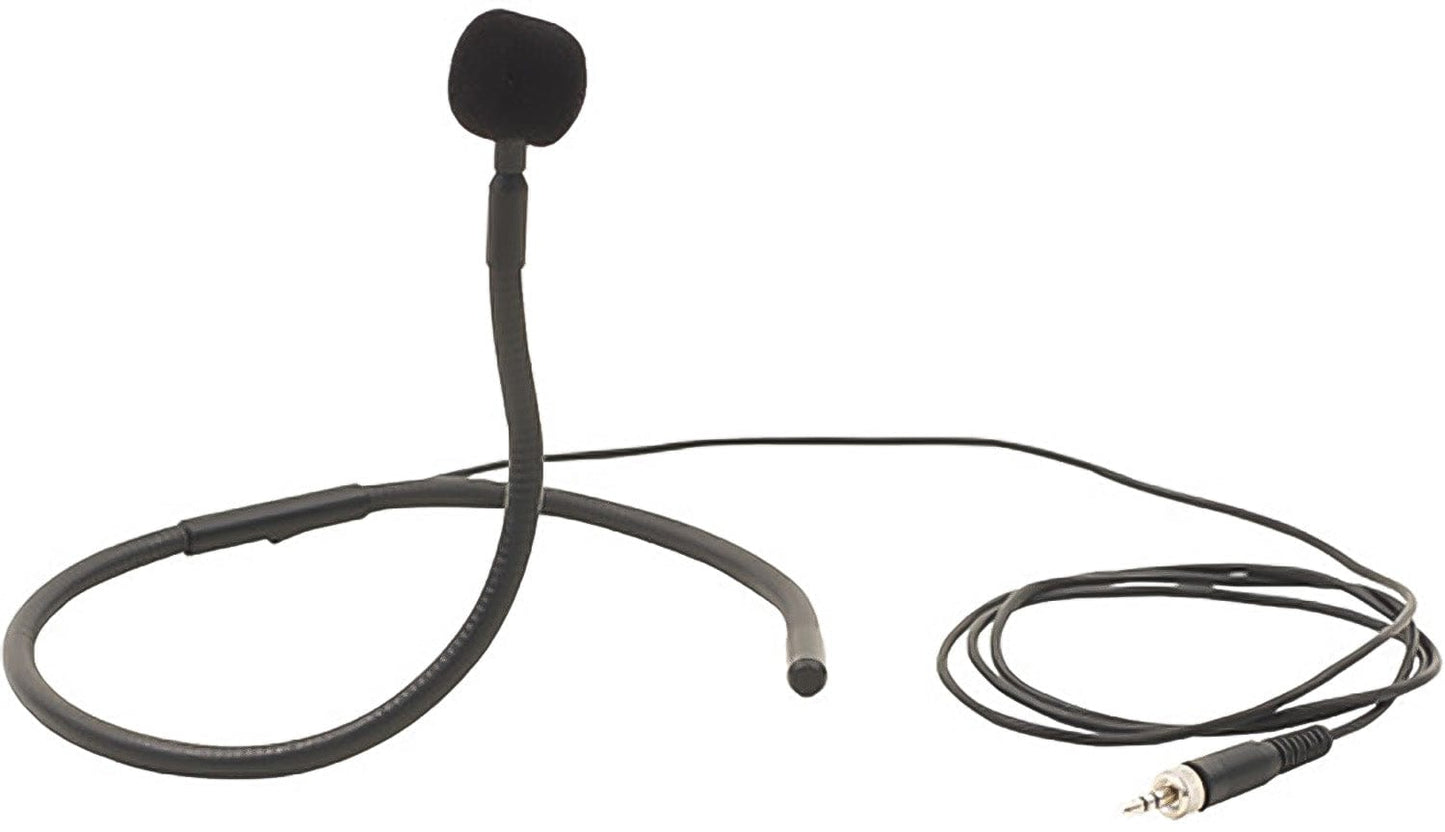

1x Anchor Audio CM-LINK Collar Microphone

The Anchor Audio CM-LINK is a collar microphone designed for hands-free presentations, ideal for speakers who prefer convenience and mobility. It features a cardioid polar pattern to reduce unwanted feedback, making it an excellent choice for use near speakers. The microphone is equipped with a 3.5mm connector and is compatible with the AnchorLink Series WB-LINK bodypack transmitter.

1x Anchor Audio WB-LINK Wireless Belt Pack

The Anchor Audio WB-LINK is a wireless bodypack transmitter designed for use with sound and PA systems that feature AnchorLink Series receivers. Operating in the less-crowded 1.9 GHz frequency range, it utilizes automatic frequency hopping to ensure a clear, interference-free signal with a transmission range of up to 300 feet.

Features:

• Anchor Audio BEA2-XU2 Beacon 2 PA with Bluetooth:
• Reaches Crowds of up to 2500 People
• Integrated Handle and Rolling Wheels
• Built-In Bluetooth Receiver
• AIR Wireless Transmitter
• Dual Wireless Mic Receiver
• 150W of Rated Output Power
• 8 x 4" Speakers, 3 x 8" Woofers
• Integrated Mixer & 2-Band Equalizer
• Built-In Rechargeable Batteries
• XLR, 1/4" & 3.5mm Inputs, 1/4" Output

• Anchor Audio CM-LINK Collar Microphone:
• For hands-free presentations
• Compatible with WB-LINK bodypack transmitter
• Cardioid polar pattern for minimizing feedback
• 3.5mm connector for easy connection

• Anchor Audio WB-LINK Wireless Belt Pack:
• For AnchorLink-Equipped PA Systems
• 3.5mm Mic Input Connector
• Accepts Lavalier and Headset Mics
• Volume and Mute Controls
• One-Time Pair Function
• Up to 8 Hours of Operation
• 1.9 GHz Wireless Frequency Range
• Automatic Frequency Hopping
• Powered via 2 x AA Batteries
• Includes Belt Clip

Specifications:

• Anchor Audio BEA2-XU2 Beacon 2 PA with Bluetooth:
• Amplifier Power Rating: 150 W (AC Power), 125 W (Battery Power)
• Speakers:
• Full-Range Driver: 8x 4" / 10.2 cm
• LF Driver: 3x 8" / 20.3 cm Woofer
• Magnet: Neodymium
• Performance:
• Frequency Response: 60 Hz to 15 kHz ±3 dB
• Maximum SPL: 120 dB
• Input Sensitivity:
• Lo-Z Mic Input: -52 dBV / 2.5 mVrms
• Hi-Z Mic Input: -43 dBV / 7.5 mVrms
• Aux Input: -14 dBV / 200 mVrms
• I/O Impedance:
• Hi-Z Input: 10 Kilohms
• Low-Z Input: 1 Kilohms
• Line Output: 600 Ohms
• Connectivity:
• Audio I/O:
• 2x Combo XLR-1/4" TRS Balanced Mic Input
• 1x 1/4" TS Unbalanced Line Input
• 1x 1/8" / 3.5 mm TRS Unbalanced Line Input
• 1x 1/4" TRS Balanced Line Output
• Phantom Power: +12 V
• Wireless:
• Wireless Transmission: 1.9 GHz
• Max Wireless Range: RF Wireless: 300' / 91.4 m (Line of Sight)
• RF Frequency Band: 902 to 928 MHz
• Bluetooth Power Class: 1
• Power:
• Battery Type: 2x Built-In Rechargeable 12 V Lithium-Ion
• Approximate Battery Life: 8 Hours
• Internal Battery Capacity: 7 Ah
• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• Power Consumption: 250 W (Max)
• Physical:
• Environmental Resistance: No
• Dimensions: 28 x 11 x 18.5" / 71.1 x 27.9 x 47 cm (Collapsed)
• Dimensions: 71.5 x 11 x 18.5" / 181.6 x 27.9 x 47 cm (Full Assembly)
• Weight: 43 lb / 19.5 kg

• Anchor Audio CM-LINK Collar Microphone:
• Polar Pattern: Cardioid
• Connector: 1/8" / 3.5 mm

• Anchor Audio WB-LINK Wireless Belt Pack:
• Frequency Band: 1.9 GHz
• Wireless Range: 300' / 91 m, line of sight
• Input Connector: 1/8" / 3.5 mm
• Controls: Volume, Mute
• Power: 2 x AA batteries, Operates up to 8 hours
