Anchor Audio 812460 Beacon 2 System 4 - 4x Lapel Wireless Microphones

Anchor Audio 812460 Beacon 2 System 4 - 4x Lapel Wireless Microphones

1x Anchor Audio BEA2-U4 Beacon 2 Portable Line Array Tower

The Anchor Audio BEA2-U4 is a Beacon 2 portable line array tower featuring Bluetooth and two dual wireless microphone receivers. With 150W of rated output power, it powers eight 4" neodymium speakers, three 8" woofers, and a neodymium compression driver to deliver 120 dB SPL. This system is designed to provide versatile, powerful amplification for crowds of up to 2500 people, making it ideal for sports venues, educational facilities, and various indoor and outdoor events.

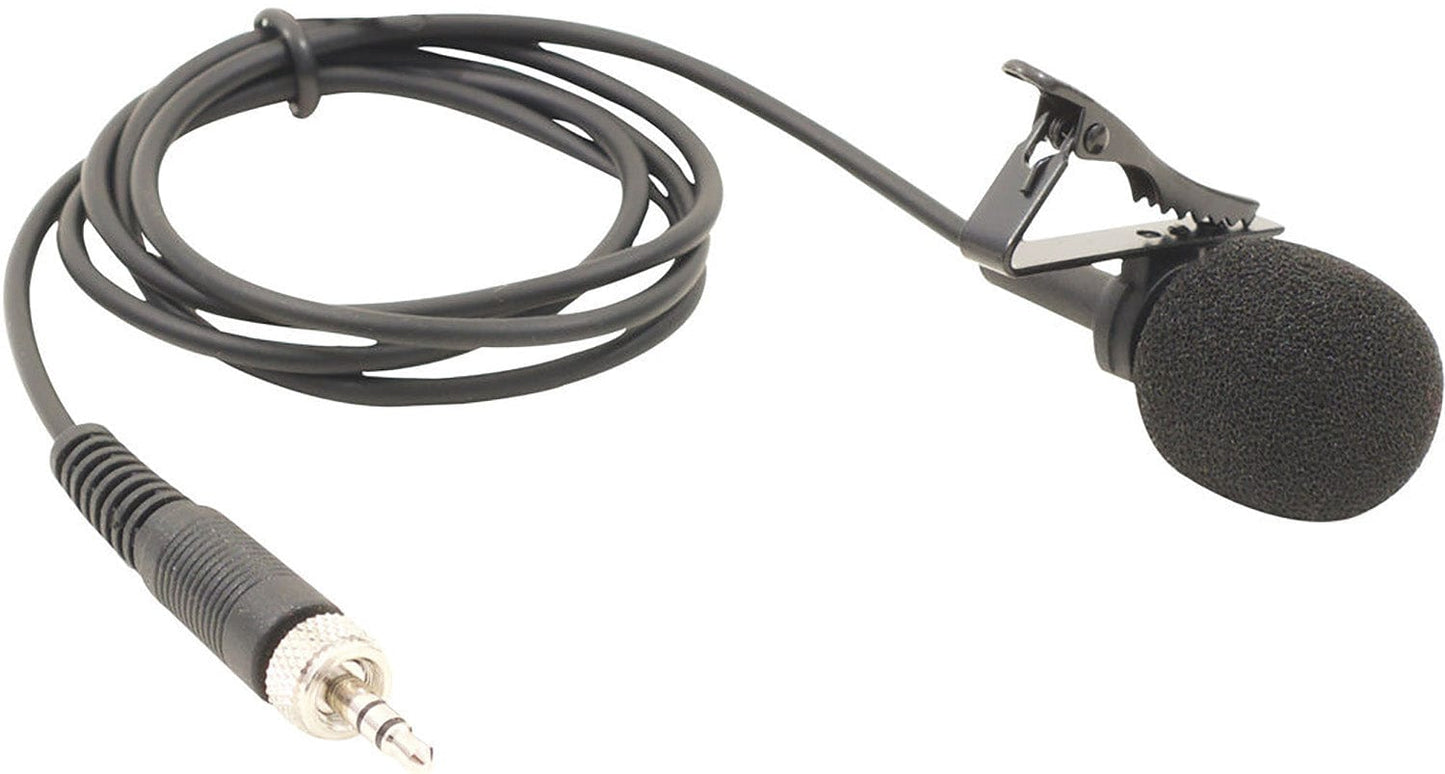

4x Anchor Audio Lapel Microphone Element for WB-Link

The Anchor Audio LM-LINK is a lavalier microphone designed for speakers who prefer the hands-free convenience of a wearable mic. It includes a 3.5mm connector for compatibility with the AnchorLink Series WB-LINK bodypack transmitter. Featuring a cardioid polar pattern, the LM-LINK is engineered to minimize unwanted feedback when positioned near a speaker. Additionally, it comes with a clip and a foam windscreen for added convenience and versatility.

4x Anchor Audio Wireless Belt Pack

The Anchor Audio WB-LINK is a wireless bodypack transmitter designed for use with sound and PA systems that feature AnchorLink Series receivers. Operating in the less-crowded 1.9 GHz frequency range, it utilizes automatic frequency hopping to ensure a clear, interference-free signal with a transmission range of up to 300 feet.

Features:

• Anchor Audio BEA2-U4 Beacon 2 Portable Line Array Tower:
• Reaches crowds of up to 2500 people
• Integrated handle and rolling wheels
• Built-in Bluetooth receiver
• Two dual wireless microphone receivers
• 150W of rated output power
• 8 x 4" speakers and 3 x 8" woofers
• Integrated mixer & 2-band equalizer
• Built-in rechargeable batteries
• XLR, 1/4", & 3.5mm inputs, 1/4" output
• Anchor Audio Lapel Microphone Element for WB-Link :
• For Hands-Free Presentations
• Clips to Clothing
• Use with WB-LINK Beltpack Transmitter
• Polar Pattern:
  • Cardioid
• Connector:
  • 3.5mm
• Includes:
  • Clip
  • Foam Windscreen
• Anchor Audio Wireless Belt Pack:
• For AnchorLink-Equipped PA Systems
• 3.5mm Mic Input Connector
• Accepts Lavalier and Headset Mics
• Volume and Mute Controls
• One-Time Pair Function
• Up to 8 Hours of Operation
• 1.9 GHz Wireless Frequency Range
• Automatic Frequency Hopping
• Powered via 2 x AA Batteries
• Includes Belt Clip

Specifications:

• Anchor Audio BEA2-U4 Beacon 2 Portable Line Array Tower:
• Portable PA System:
  • Amplifier Power Rating: 150W (AC Power), 125W (Battery Power)
• Speakers:
  • Full-Range Driver: 8x 4" / 10.2 cm
  • LF Driver: 3x 8" / 20.3 cm Woofer
  • Magnet: Neodymium
• Performance:
  • Frequency Response: 60 Hz to 15 kHz ±3 dB
  • Maximum SPL: 120 dB
  • Input Sensitivity:
    • Lo-Z Mic Input: -52 dBV / 2.5 mVrms
    • Hi-Z Mic Input: -43 dBV / 7.5 mVrms
    • Aux Input: -14 dBV / 200 mVrms
  • I/O Impedance:
    • Hi-Z Input: 10 Kilohms
    • Low-Z Input: 1 Kilohms
    • Line Output: 600 Ohms
• Connectivity:
  • Audio I/O:
    • 2x Combo XLR-1/4" TRS Balanced Mic Input
    • 1x 1/4" TS Unbalanced Line Input
    • 1x 1/8" / 3.5mm TRS Unbalanced Line Input
    • 1x 1/4" TRS Balanced Line Output
  • Phantom Power: +12 V
• Wireless:
  • Wireless Transmission: 1.9 GHz
  • Max Wireless Range: 300' / 91.4 m (Line of Sight)
  • RF Frequency Band: 902 to 928 MHz
  • Bluetooth Power Class: 1
• Power:
  • Battery Type: 2x Built-In Rechargeable 12V Lithium-Ion
  • Approximate Battery Life: 8 Hours
  • Internal Battery Capacity: 7 Ah
  • AC Input Power: 100 to 240 VAC, 50/60 Hz
  • Power Consumption: 250W (Max)
• Physical:
  • Environmental Resistance: No
  • Dimensions (Collapsed): 28 x 11 x 18.5" / 71.1 x 27.9 x 47 cm
  • Dimensions (Full Assembly): 71.5 x 11 x 18.5" / 181.6 x 27.9 x 47 cm
  • Weight: 43 lb / 19.5 kg
• Anchor Audio Lapel Microphone Element for WB-Link:

• Polar Pattern: Cardioid
• Connector: 1/8" / 3.5 mm
• Anchor Audio Wireless Belt Pack:

• Frequency Band:
  • 1.9 GHz
• Wireless Range:
  • 300' / 91 m, line of sight
• Input Connector:
  • 1/8" / 3.5 mm
• Controls:
  • Volume
  • Mute
• Power:
  • 2 x AA batteries
  • Operates up to 8 hours
