Anchor Audio 812435 Beacon 2 System 4 - 2x Handheld / 2x Collar Wireless Microphones

Anchor Audio 812435 Beacon 2 System 4 - 2x Handheld / 2x Collar Wireless Microphones

1x Anchor Audio BEA2-U4 Beacon 2 Portable Line Array Tower

The Anchor Audio BEA2-U4 is a Beacon 2 portable line array tower featuring Bluetooth and two dual wireless microphone receivers. With 150W of rated output power, it powers eight 4" neodymium speakers, three 8" woofers, and a neodymium compression driver to deliver 120 dB SPL. This system is designed to provide versatile, powerful amplification for crowds of up to 2500 people, making it ideal for sports venues, educational facilities, and various indoor and outdoor events.

2x Anchor Audio WH-LINK Wireless Handheld Microphone

The WH-LINK is a wireless handheld microphone with a sleek and lightweight design. It operates on the 1.9 GHz frequency. The WH-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries.

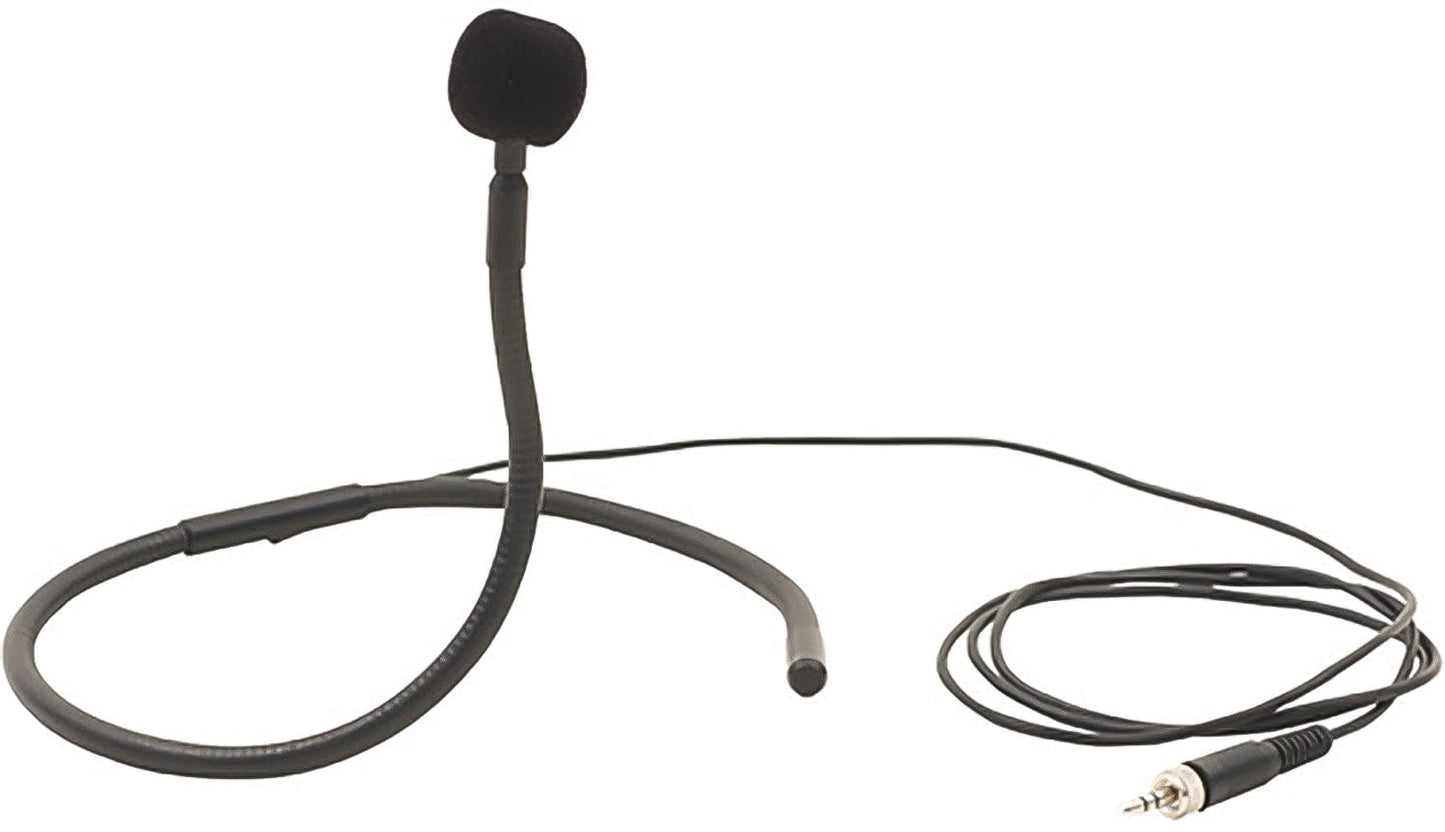

2x Anchor Audio CM-LINK Collar Microphone

The Anchor Audio CM-LINK is a collar microphone designed for hands-free presentations, ideal for speakers who prefer convenience and mobility. It features a cardioid polar pattern to reduce unwanted feedback, making it an excellent choice for use near speakers. The microphone is equipped with a 3.5mm connector and is compatible with the AnchorLink Series WB-LINK bodypack transmitter.

2x Anchor Audio Wireless Belt Pack

The Anchor Audio WB-LINK is a wireless bodypack transmitter designed for use with sound and PA systems that feature AnchorLink Series receivers. Operating in the less-crowded 1.9 GHz frequency range, it utilizes automatic frequency hopping to ensure a clear, interference-free signal with a transmission range of up to 300 feet.

Features:

• Anchor Audio BEA2-U4 Beacon 2 Portable Line Array Tower:
• Reaches crowds of up to 2500 people
• Integrated handle and rolling wheels
• Built-in Bluetooth receiver
• Two dual wireless microphone receivers
• 150W of rated output power
• 8 x 4" speakers and 3 x 8" woofers
• Integrated mixer & 2-band equalizer
• Built-in rechargeable batteries
• XLR, 1/4", & 3.5mm inputs, 1/4" output
• Anchor Audio WH-LINK Wireless Handheld Microphone:
• Classic Wireless Handheld Microphone
• For AnchorLink-Equipped PA Systems
• Volume and Mute Controls
• One-Time Pair Function
• Up to 8 Hours of Operation
• 1.9 GHz Wireless Frequency Range
• Automatic Frequency Hopping
• Lightweight Design
• Powered via 2 x AA Batteries
• Anchor Audio CM-LINK Collar Microphone:
• For hands-free presentations
• Compatible with WB-LINK bodypack transmitter
• Cardioid polar pattern for minimizing feedback
• 3.5mm connector for easy connection
• Anchor Audio Wireless Belt Pack:
• For AnchorLink-Equipped PA Systems
• 3.5mm Mic Input Connector
• Accepts Lavalier and Headset Mics
• Volume and Mute Controls
• One-Time Pair Function
• Up to 8 Hours of Operation
• 1.9 GHz Wireless Frequency Range
• Automatic Frequency Hopping
• Powered via 2 x AA Batteries
• Includes Belt Clip

Specifications:

• Anchor Audio BEA2-U4 Beacon 2 Portable Line Array Tower:
• Portable PA System:
  • Amplifier Power Rating: 150W (AC Power), 125W (Battery Power)
• Speakers:
  • Full-Range Driver: 8x 4" / 10.2 cm
  • LF Driver: 3x 8" / 20.3 cm Woofer
  • Magnet: Neodymium
• Performance:
  • Frequency Response: 60 Hz to 15 kHz ±3 dB
  • Maximum SPL: 120 dB
  • Input Sensitivity:
    • Lo-Z Mic Input: -52 dBV / 2.5 mVrms
    • Hi-Z Mic Input: -43 dBV / 7.5 mVrms
    • Aux Input: -14 dBV / 200 mVrms
  • I/O Impedance:
    • Hi-Z Input: 10 Kilohms
    • Low-Z Input: 1 Kilohms
    • Line Output: 600 Ohms
• Connectivity:
  • Audio I/O:
    • 2x Combo XLR-1/4" TRS Balanced Mic Input
    • 1x 1/4" TS Unbalanced Line Input
    • 1x 1/8" / 3.5mm TRS Unbalanced Line Input
    • 1x 1/4" TRS Balanced Line Output
  • Phantom Power: +12 V
• Wireless:
  • Wireless Transmission: 1.9 GHz
  • Max Wireless Range: 300' / 91.4 m (Line of Sight)
  • RF Frequency Band: 902 to 928 MHz
  • Bluetooth Power Class: 1
• Power:
  • Battery Type: 2x Built-In Rechargeable 12V Lithium-Ion
  • Approximate Battery Life: 8 Hours
  • Internal Battery Capacity: 7 Ah
  • AC Input Power: 100 to 240 VAC, 50/60 Hz
  • Power Consumption: 250W (Max)
• Physical:
  • Environmental Resistance: No
  • Dimensions (Collapsed): 28 x 11 x 18.5" / 71.1 x 27.9 x 47 cm
  • Dimensions (Full Assembly): 71.5 x 11 x 18.5" / 181.6 x 27.9 x 47 cm
  • Weight: 43 lb / 19.5 kg

• Frequency Band: 1.9 GHz
• Wireless Range: 300' / 91 m (Line of sight)
• Controls:
  • Volume
  • Mute
• Power:
  • 2 x AA batteries
  • Operates up to 8 hours

• Polar Pattern: Cardioid
• Connector: 1/8" / 3.5 mm

• Frequency Band:
  • 1.9 GHz
• Wireless Range:
  • 300' / 91 m, line of sight
• Input Connector:
  • 1/8" / 3.5 mm
• Controls:
  • Volume
  • Mute
• Power:
  • 2 x AA batteries
  • Operates up to 8 hours
