Anchor Audio 788460 Liberty 3 Dual Hub - AnchorLink 3 / AnchorFlex / 4x Lapel Mics / Stands

Anchor Audio 788460 Liberty 3 Dual Hub - AnchorLink 3 / AnchorFlex / 4x Lapel Mics / Stands

This bundle includes:

2x Anchor Audio LIB3TU Liberty 3 Hub

The Anchor Audio Liberty 3 Hub is a portable PA system designed to provide powerful and versatile amplification for crowds of up to 1500 people. Featuring AnchorFlex 3 technology, AnchorLink 3 technology, and an integrated Bluetooth receiver, it is ideal for use in sports venues, educational facilities, and a variety of indoor and outdoor events. AnchorFlex enables wireless connection of up to 1020 companion speakers, with each speaker capable of being placed up to 300 feet from the main unit. AnchorLink supports up to four wireless microphones for added flexibility. With 200W of output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 delivers sound-pressure levels up to 123 dB and a wide frequency range of 40 Hz to 20 kHz, ensuring clear, full-range sound.

4x Anchor Audio Lapel Microphone

The Anchor Audio LM-LINK is a lavalier microphone designed for speakers who prefer the hands-free convenience of a wearable mic. It includes a 3.5mm connector for compatibility with the AnchorLink Series WBL3 bodypack transmitter. Featuring a cardioid polar pattern, the LM-LINK is engineered to minimize unwanted feedback when positioned near a speaker. Additionally, it comes with a clip and a foam windscreen for added convenience and versatility.

4x Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack

The WBL3L is an AnchorLink 3 wireless beltpack system allowing presenters to move freely during their presentations. The bodypack transmitter features 16 user-selectable channels and supports the connection of up to four AnchorLink 3 wireless microphones, each with a range of up to 300 feet. Powered by two AA batteries, the WBL3 provides 6–8 hours of continuous use and offers an expansive frequency response of 20Hz to 20kHz for clear and high-quality sound.

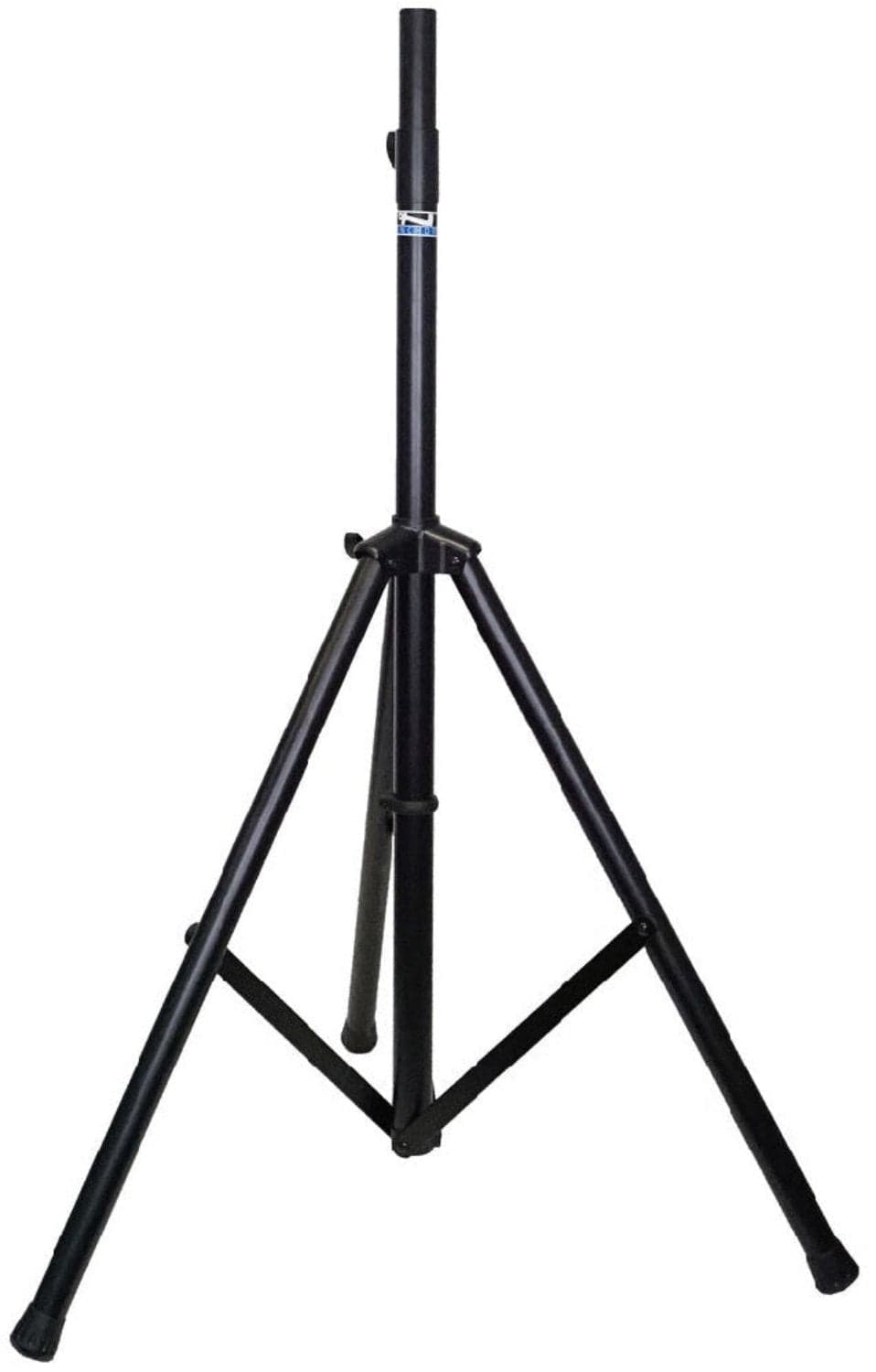

2x Anchor Audio SS-553 Heavy Duty Speaker Stand

The SS-553 Heavy-duty Speaker Stand is specifically designed for the Liberty 3 PA speaker. It features adjustable leg width and height, making it ideal for a wide range of live sound applications. Built for stability and durability, this stand ensures secure and optimal speaker placement in various settings.

Features:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • AnchorLink 3 and Anchor Flex Technology
  • Reaches Crowds of up to 1500 People
  • Integrated Pole Mount for Speaker Stands
  • Telescopic Handle and Wheels
  • Built-In Bluetooth Receiver
  • 200W of Rated Output Power
  • 10" Woofer & Ceramic Compression Driver
  • Integrated Mixer and 2-Band Equalizer
  • Built-In 7h Rechargeable Batteries
  • XLR, 1/4" & 3.5mm Inputs, 1/4" Output
• Anchor Audio Lapel Microphone:
  • For Hands-Free Presentations
  • Clips to Clothing

  • Polar Pattern:
    • Cardioid
  • Connector:
    • 3.5mm
  • Includes:
    • Clip
    • Foam Windscreen
• Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack

  • • Bodypack transmitter with 16 user-selectable channels
    • Link up to 4 AnchorLink 3 wireless mics
    • 300-foot operating range
    • 6–8 hours of use from 2 AA batteries
    • Expansive 20Hz–20kHz frequency response

• Anchor Audio SS-553 Heavy Duty Speaker Stand:
  • Rock-solid, roadworthy construction
  • Designed for the Liberty 3 and PA systems
  • Adjustable leg width and height for versatile setup

Specifications:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • Speaker Configuration: 1x 2-Way Loudspeaker
  • Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
  • Amplifier Power Rating: 200 W
  • HF Driver: 1x Compression Driver
  • LF Driver: 1x 10" / 25.4 cm Woofer
  • Audio I/O:
    • 2x Combo XLR-1/4" TRS Balanced Mic Input
    • 1x 1/4" TS Unbalanced Line Input
    • 1x 1/8" / 3.5 mm TRS Line Input
    • 1x 1/4" TRS Balanced Line Output
  • USB I/O: 1x USB-A (Device Charging)
  • Bluetooth: Yes
  • Speaker Configuration: 1x 2-Way Loudspeaker
  • Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
  • Amplifier Power Rating: 200 W
  • Enclosure Type: Speaker (Bass-Reflex)
  • HF Driver: 1x Compression Driver (Ceramic Magnet)
  • LF Driver: 1x 10" / 25.4 cm Woofer
  • Performance:
    • Frequency Response: 40 Hz to 20 kHz ±3 dB
    • Maximum SPL: 123 dB
  • I/O Impedance:
    • Hi-Z Input: 10 Kilohms
    • Low-Z Input: 1 Kilohms
    • Line Output: 600 Ohms
  • Phantom Power: +34 V
  • USB I/O: 1x USB-A (Device Charging)
  • Wireless Connectivity: Bluetooth, Wi-Fi
  • Max Wireless Range: 300' / 91.4 m (Line of Sight)
  • Battery:
    • Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
    • Approximate Battery Life: 7 Hours
    • Battery Charging Time: 5 Hours
    • Internal Battery Capacity: 10.2 Ah
  • Power:
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
    • Current Consumption: 2 A
    • AC Power I/O: 1x IEC
  • Physical:
    • Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
    • Mounting: 1 x Pole Socket
    • Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
    • Weight: 44 lb / 20 kg

• Anchor Audio Lapel Microphone:
  • Polar Pattern: Cardioid
  • Connector: 1/8" / 3.5 mm

• Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
  • Compatibility: Anchor Audio AnchorLink 3
  • Transmitter Frequency Range: 1.9 GHz
  • Form Factor: Bodypack
  • System Operating Range: 300 ft. Line-of-sight
