Anchor Audio 788400 Liberty 3 Dual Hub - AnchorLink 3 / AnchorFlex / 4x Handheld Mics / Stands

Anchor Audio 788400 Liberty 3 Dual Hub - AnchorLink 3 / AnchorFlex / 4x Handheld Microphones / Stands

This bundle includes:

2x Anchor Audio LIB3TU Liberty 3 Hub

The Anchor Audio Liberty 3 Hub is a portable PA system designed to provide powerful and versatile amplification for crowds of up to 1500 people. Featuring AnchorFlex 3 technology, AnchorLink 3 technology, and an integrated Bluetooth receiver, it is ideal for use in sports venues, educational facilities, and a variety of indoor and outdoor events. AnchorFlex enables wireless connection of up to 1020 companion speakers, with each speaker capable of being placed up to 300 feet from the main unit. AnchorLink supports up to four wireless microphones for added flexibility. With 200W of output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 delivers sound-pressure levels up to 123 dB and a wide frequency range of 40 Hz to 20 kHz, ensuring clear, full-range sound.

4x Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone

The WHL3 is an AnchorLink 3 wireless handheld transmitter featuring 16 user-selectable channels. It allows you to link up to four microphones, each offering a range of up to 300 feet. Powered by two AA batteries, the WHL3 provides 6–8 hours of continuous use. With a frequency response of 20Hz to 20kHz, it ensures high-quality audio, and includes convenient volume and mute controls for easy and efficient operation.

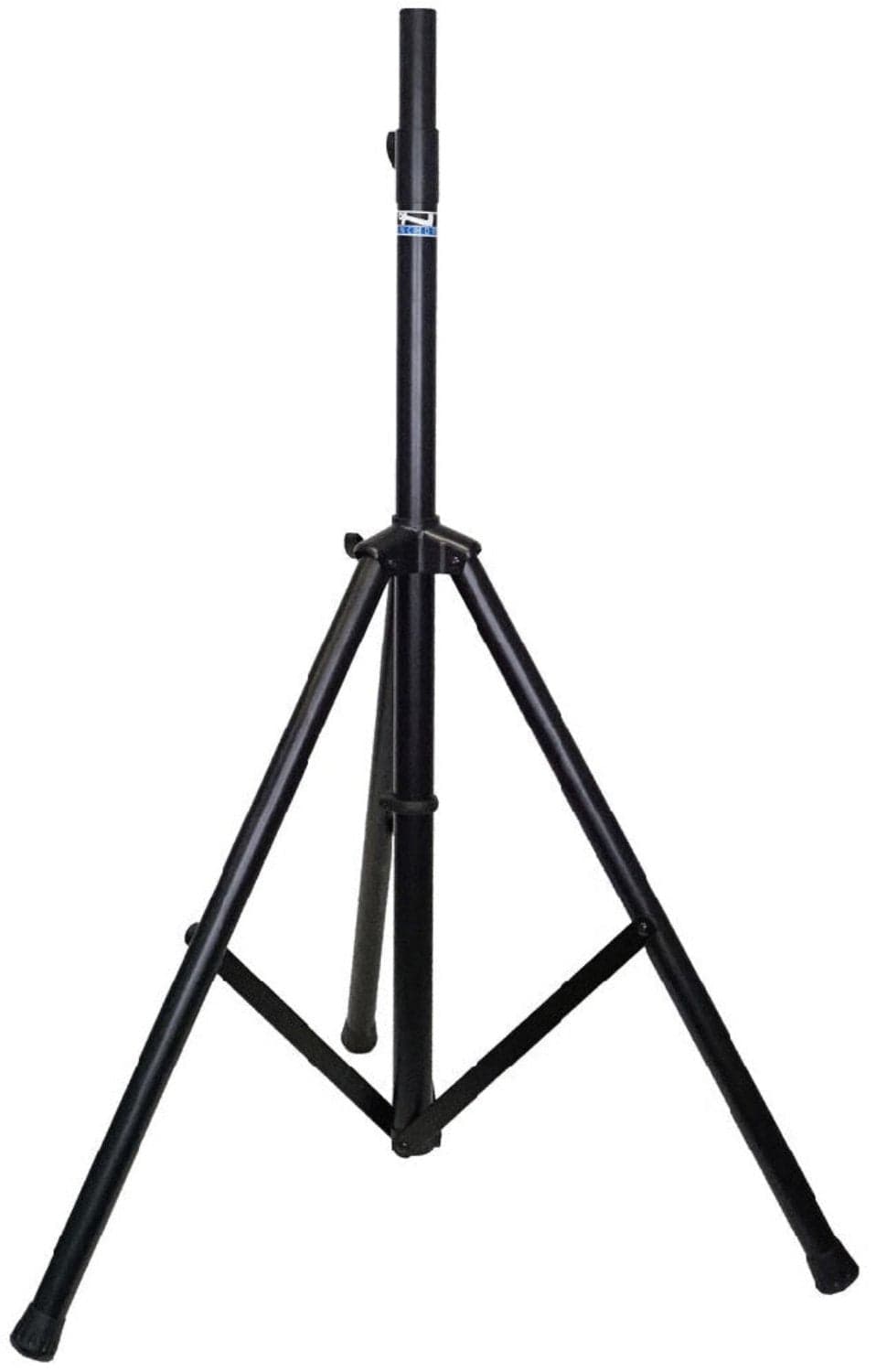

2x Anchor Audio SS-553 Heavy Duty Speaker Stand

The SS-553 Heavy-duty Speaker Stand is specifically designed for the Liberty 3 PA speaker. It features adjustable leg width and height, making it ideal for a wide range of live sound applications. Built for stability and durability, this stand ensures secure and optimal speaker placement in various settings.

Features:

• Anchor Audio LIB3TU Liberty 3 Hub:
• AnchorLink 3 and Anchor Flex Technology
• Reaches Crowds of up to 1500 People
• Integrated Pole Mount for Speaker Stands
• Telescopic Handle and Wheels
• Built-In Bluetooth Receiver
• 200W of Rated Output Power
• 10" Woofer & Ceramic Compression Driver
• Integrated Mixer and 2-Band Equalizer
• Built-In 7h Rechargeable Batteries
• XLR, 1/4" & 3.5mm Inputs, 1/4" Output
• Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
• Channels: 16 user-selectable channels
• Linking: Connect up to 4 AnchorLink 3 wireless mics
• Range: 300 feet operating range
• Battery Life: 6–8 hours with 2 AA batteries
• Frequency Response: 20Hz–20kHz
• Controls: Volume and mute control
• Anchor Audio SS-553 Heavy Duty Speaker Stand:
• Rock-solid, roadworthy construction
• Designed for the Liberty 3 and PA systems
• Adjustable leg width and height for versatile setup

Specifications:

• Anchor Audio LIB3TU Liberty 3 Hub:
• Speaker Configuration: 1x 2-Way Loudspeaker
• Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
• Amplifier Power Rating: 200 W
• HF Driver: 1x Compression Driver
• LF Driver: 1x 10" / 25.4 cm Woofer
• Audio I/O:
  • 2x Combo XLR-1/4" TRS Balanced Mic Input
  • 1x 1/4" TS Unbalanced Line Input
  • 1x 1/8" / 3.5 mm TRS Line Input
  • 1x 1/4" TRS Balanced Line Output
• USB I/O: 1x USB-A (Device Charging)
• Bluetooth: Yes
• Speaker Configuration: 1x 2-Way Loudspeaker
• Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
• Amplifier Power Rating: 200 W
• Enclosure Type: Speaker (Bass-Reflex)
• HF Driver: 1x Compression Driver (Ceramic Magnet)
• LF Driver: 1x 10" / 25.4 cm Woofer
• Performance:
  • Frequency Response: 40 Hz to 20 kHz ±3 dB
  • Maximum SPL: 123 dB
• I/O Impedance:
  • Hi-Z Input: 10 Kilohms
  • Low-Z Input: 1 Kilohms
  • Line Output: 600 Ohms
• Phantom Power: +34 V
• USB I/O: 1x USB-A (Device Charging)
• Wireless Connectivity: Bluetooth, Wi-Fi
• Max Wireless Range: 300' / 91.4 m (Line of Sight)
• Battery:
  • Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
  • Approximate Battery Life: 7 Hours
  • Battery Charging Time: 5 Hours
  • Internal Battery Capacity: 10.2 Ah
• Power:
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
  • Current Consumption: 2 A
  • AC Power I/O: 1x IEC
• Physical:
  • Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
  • Mounting: 1 x Pole Socket
  • Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
  • Weight: 44 lb / 20 kg
• Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
• Configuration: Mic with Transmitter
• Compatibility: Anchor Audio AnchorLink 3
• Analog/Digital: Digital
• Frequency Range: 1.9 GHz
• Form Factor: Handheld
• System Operating Range: 300 ft. Line-of-sight
• Microphone Color: Black
