Anchor Audio 788260 Liberty 3 Dual Hub - AnchorLink 3 / AnchorFlex / 2x Lapel Microphones / Stands
2x Anchor Audio Liberty 3 Hub Portable PA System with Integrated 4-Mic Wireless Receiver and Bluetooth
The Anchor Audio Liberty 3 Hub is a powerful and portable PA system equipped with AnchorFlex 3 technology, AnchorLink 3 technology, and an integrated Bluetooth receiver, making it perfect for versatile sound amplification. Designed to deliver up to 200W of rated output power through a 10" woofer and a ceramic compression driver, the Liberty 3 produces 123 dB SPL with a wide frequency range of 40 Hz to 20 kHz, providing full-range sound for crowds of up to 1500 people.
Ideal for sports venues, educational facilities, and various indoor and outdoor events, AnchorFlex technology allows you to wirelessly connect up to 1020 companion speakers, with placement flexibility of up to 300 feet from the main unit. AnchorLink technology further enhances the system's versatility by enabling up to four wireless microphones, ensuring seamless audio integration and powerful performance in any setting.
2x Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector
The LM-LINK is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a 3.5 mm connector plug.
2x AnchorLink 3 Wireless Beltpack Transmitter
The AnchorLink 3 Wireless Beltpack Transmitter is only compatible with the new Anchor Audio Series 3 Technology Systems. The bodypack transmitter includes 16 user-selectable channels and supports linking up to four AnchorLink 3 wireless microphones, each with a 300-foot range. Powered by two AA batteries, it provides 6–8 hours of use.

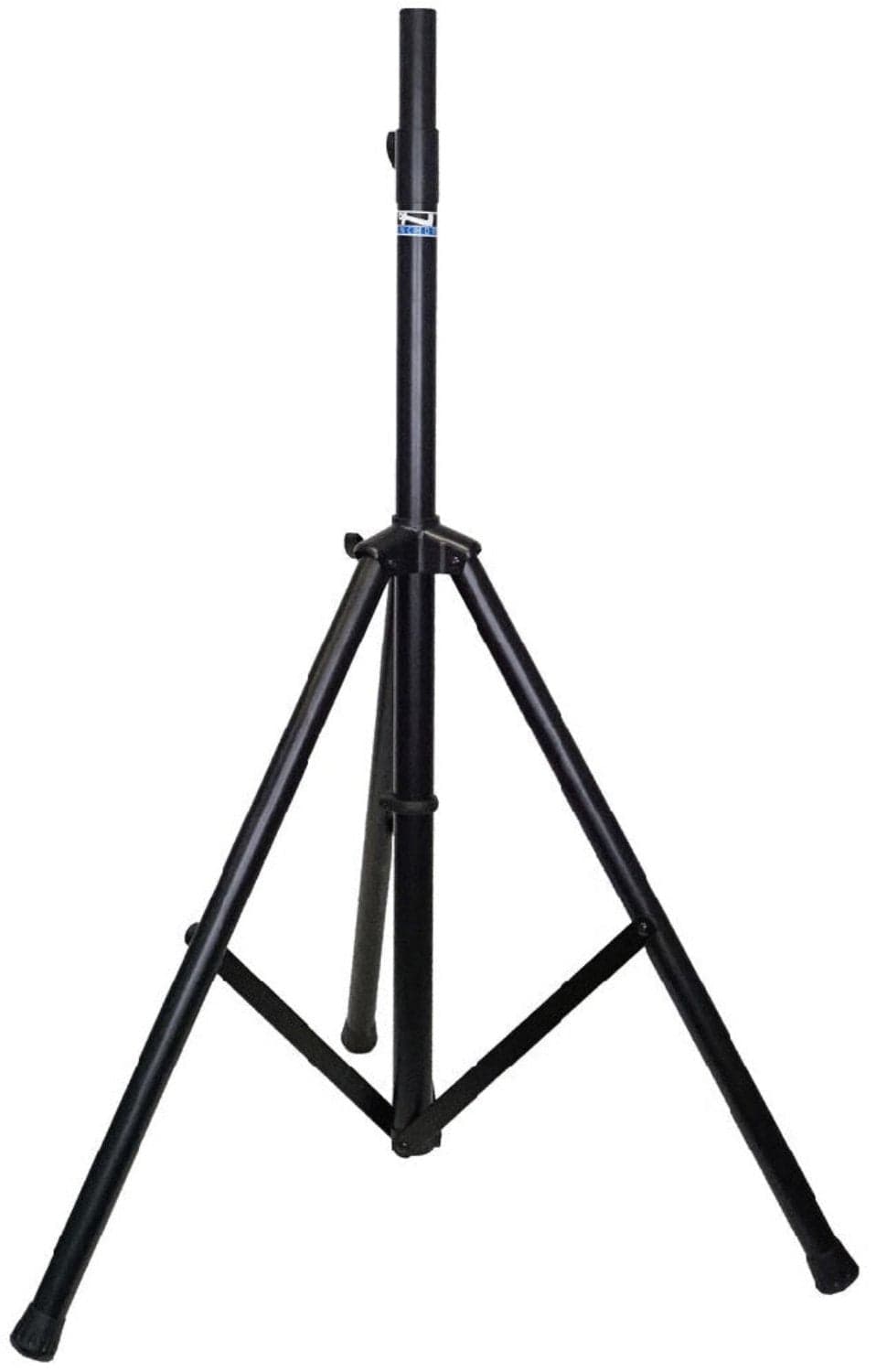

2x Anchor SS-553 Stand
The Anchor SS-553 Stand is a sturdy and reliable speaker stand designed to support Anchor Audio portable PA systems and speakers. Featuring an adjustable height, it allows for optimal sound projection and coverage during events. The stand is constructed with durable materials, ensuring stability and ease of use, making it an essential accessory for enhancing audio performance in various settings such as schools, sports venues, and outdoor events.
Features:
- LIB3TU - Anchor Audio Liberty 3 Hub Portable PA System with Integrated 4-Mic Wireless Receiver and Bluetooth:
- AnchorLink 3 and Anchor Flex Technology
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount for Speaker Stands
- Telescopic Handle and Wheels
- Built-In Bluetooth Receiver
- 200W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer and 2-Band Equalizer
- Built-In 7 h Rechargeable Batteries
- XLR, 1/4" & 3.5mm Inputs, 1/4" Output
- Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
- For Hands-Free Presentations
- Clips to Clothing
- Cardioid Polar Pattern
- 3.5mm Connector
- WBL3 - AnchorLink 3 Wireless Beltpack Transmitter:
- Bodypack transmitter with 16 user-selectable channels
- Link up to 4 AnchorLink 3 wireless mics
- 300-foot operating range
- 6–8 hours of use from 2 AA batteries
- Expansive 20Hz–20kHz frequency response
Specifications:
- LIB3TU - Anchor Audio Liberty 3 Hub Portable PA System with Integrated 4-Mic Wireless Receiver and Bluetooth:
- Portable PA System Specifications:
- Speaker configuration: 1x 2-way loudspeaker
- Number of input channels: 3 (3 x mono, 0 x stereo)
- Amplifier power rating: 200 W
- Speakers:
- Enclosure type: Bass-reflex
- HF driver: 1x compression driver (ceramic magnet)
- LF driver: 1x 10" / 25.4 cm woofer
- Performance
- Frequency response: 40 Hz to 20 kHz ±3 dB
- Maximum SPL: 123 dB
- I/O impedance:
- Hi-Z input: 10 kilohms
- Low-Z input: 1 kilohms
- Line output: 600 ohms
- Connectivity:
- Audio I/O:
- 2x combo XLR-1/4" TRS balanced mic input
- 1x 1/4" TS unbalanced line input
- 1x 1/8" / 3.5 mm TRS line input
- 1x 1/4" TRS balanced line output
- Phantom power: +34 V
- USB I/O: 1x USB-A (device charging)
- Mobile app compatible: No
- Wireless connectivity: Bluetooth, Wi-Fi
- Max wireless range: 300' / 91.4 m (line of sight)
- Bluetooth: Yes
- Power:
- Battery type: 2x built-in rechargeable 12.8 V lithium-ion
- Approximate battery life: 7 hours
- Battery charging time: 5 hours
- Internal battery capacity: 10.2 Ah
- AC input power: 100 to 240 VAC, 50 / 60 Hz
- Current consumption: 2 A
- AC power I/O: 1x IEC
- Physical:
- Transport options: 1x telescopic handle (top), 2x wheels (bottom)
- Mounting: 1 x pole socket
- Environmental resistance: No
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
- Package Weight: 0.13 lb
- Box Dimensions (LxWxH): 4.2 x 2.95 x 2.5"
- WBL3 - AnchorLink 3 Wireless Beltpack Transmitter Only:
- Configuration: Transmitter with Headset
- Compatibility: Anchor Audio AnchorLink 3
- Transmitter Frequency Range: 1.9 GHz
- Form Factor: Bodypack
- System: Operating Range: 300 ft. Line-of-sight
- Microphone Color: Black
