Anchor Audio 786400 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / 4x Handheld Mics / Stand

Anchor Audio 786400 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / 4x Handheld Mics / Stand

1x Anchor Audio LIB3TU Liberty 3 Hub

The Anchor Audio Liberty 3 Hub is designed for powerful amplification, catering to audiences of up to 1500 people. With AnchorFlex 3 and AnchorLink 3 technologies, it offers an integrated Bluetooth receiver, making it suitable for various events. This system supports wireless connections with multiple companion speakers placed up to 300 feet away, and can handle up to four wireless microphones for added convenience. With a robust 200W output, it delivers a sound pressure level of 123 dB and a frequency range of 40 Hz to 20 kHz.

4x Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone

The WHL3 is a wireless handheld microphone offering 16 channels for easy operation. It links up to four mics, providing an operating range of 300 feet. Powered by AA batteries, it ensures 6–8 hours of continuous use while delivering a frequency response of 20Hz to 20kHz for excellent audio quality.

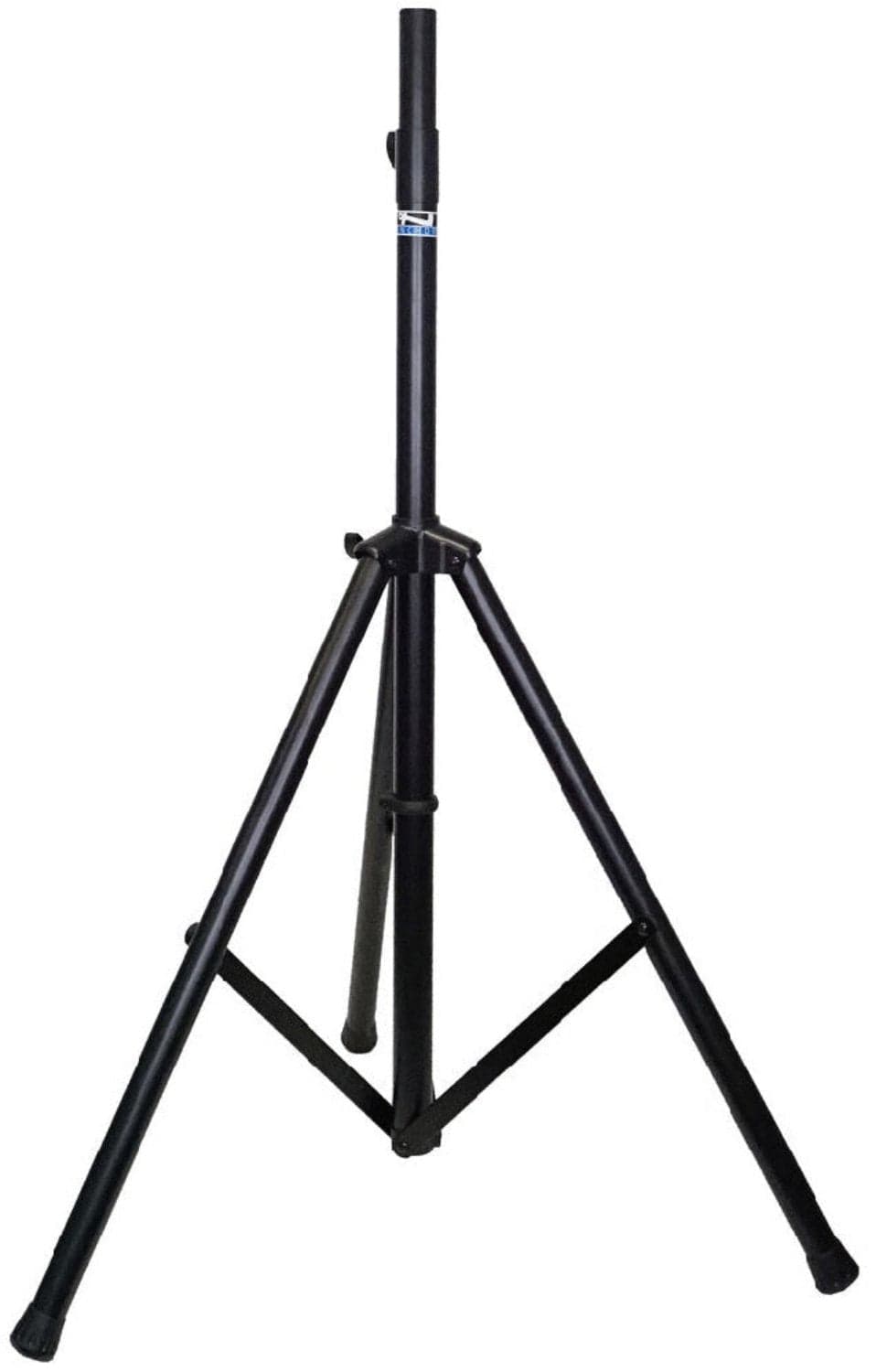

1x Anchor Audio SS-550 Heavy Duty Speaker Stand

The SS-550 Heavy-duty Speaker Stand is specifically designed for the Liberty 3 PA speaker. It features adjustable leg width and height, making it ideal for a wide range of live sound applications. Built for stability and durability, this stand ensures secure and optimal speaker placement in various settings.

Features:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • AnchorLink 3 and Anchor Flex Technology
  • Reaches Crowds of up to 1500 People
  • Integrated Pole Mount for Speaker Stands
  • Telescopic Handle and Wheels
  • Built-In Bluetooth Receiver
  • 200W of Rated Output Power
  • 10" Woofer & Ceramic Compression Driver
  • Integrated Mixer and 2-Band Equalizer
  • Built-In 7h Rechargeable Batteries
  • XLR, 1/4" & 3.5mm Inputs, 1/4" Output
• Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
  • Channels: 16 user-selectable channels
  • Linking: Connect up to 4 AnchorLink 3 wireless mics
  • Range: 300 feet operating range
  • Battery Life: 6–8 hours with 2 AA batteries
  • Frequency Response: 20Hz–20kHz
  • Controls: Volume and mute control
• Anchor Audio SS-550 Heavy Duty Speaker Stand:
  • Rock-solid, roadworthy construction
  • Adjustable leg width and height for versatile setup

Specifications:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • 2x Combo XLR-1/4" TRS Balanced Mic Input
  • 1x 1/4" TS Unbalanced Line Input
  • 1x 1/8" / 3.5 mm TRS Line Input
  • 1x 1/4" TRS Balanced Line Output
  • Frequency Response: 40 Hz to 20 kHz ±3 dB
  • Maximum SPL: 123 dB
  • Hi-Z Input: 10 Kilohms
  • Low-Z Input: 1 Kilohms
  • Line Output: 600 Ohms
  • Phantom Power: +34 V
  • Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
  • Approximate Battery Life: 7 Hours
  • Battery Charging Time: 5 Hours
  • Internal Battery Capacity: 10.2 Ah
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
  • Current Consumption: 2 A
  • AC Power I/O: 1x IEC
  • Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
  • Mounting: 1 x Pole Socket
  • Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
  • Weight: 44 lb / 20 kg
• Speaker Configuration: 1x 2-Way Loudspeaker
• Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
• Amplifier Power Rating: 200 W
• HF Driver: 1x Compression Driver
• LF Driver: 1x 10" / 25.4 cm Woofer
• Audio I/O:
• USB I/O: 1x USB-A (Device Charging)
• Bluetooth: Yes
• Performance:
• I/O Impedance:
• Wireless Connectivity: Bluetooth, Wi-Fi
• Max Wireless Range: 300' / 91.4 m (Line of Sight)
• Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
  • Configuration: Mic with Transmitter
  • Compatibility: Anchor Audio AnchorLink 3
  • Analog/Digital: Digital
  • Frequency Range: 1.9 GHz
  • Form Factor: Handheld
  • System Operating Range: 300 ft. Line-of-sight
  • Microphone Color: Black
• Anchor Audio SS-550 Heavy-Duty Speaker Stand:
  • Type: Speaker Stand
  • Load Capacity: 75 lb / 34 kg
  • Stand Height: 38 to 70" / 96.5 to 177.8 cm
  • Package Weight: 7.5 lb
  • Box Dimensions (LxWxH): 43.2 x 6 x 6"
