Anchor Audio 786230 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / Handheld / Lapel / Stand

Anchor Audio 786230 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / Handheld / Lapel / Stand

1x Anchor Audio LIB3TU Liberty 3 Hub

The Anchor Audio Liberty 3 Hub is a portable PA system designed to provide powerful and versatile amplification for crowds of up to 1500 people. Featuring AnchorFlex 3 technology, AnchorLink 3 technology, and an integrated Bluetooth receiver, it is ideal for use in sports venues, educational facilities, and a variety of indoor and outdoor events. AnchorFlex enables wireless connection of up to 1020 companion speakers, with each speaker capable of being placed up to 300 feet from the main unit. AnchorLink supports up to four wireless microphones for added flexibility. With 200W of output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 delivers sound-pressure levels up to 123 dB and a wide frequency range of 40 Hz to 20 kHz, ensuring clear, full-range sound.

1x Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone

The WHL3 is an AnchorLink 3 wireless handheld transmitter featuring 16 user-selectable channels. It allows you to link up to four microphones, each offering a range of up to 300 feet. Powered by two AA batteries, the WHL3 provides 6–8 hours of continuous use. With a frequency response of 20Hz to 20kHz, it ensures high-quality audio, and includes convenient volume and mute controls for easy and efficient operation.

1x Anchor Audio Lapel Microphone Element

The Anchor Audio LM-LINK is a lavalier microphone designed for speakers who prefer the hands-free convenience of a wearable mic. It includes a 3.5mm connector for compatibility with the AnchorLink Series WBL3 bodypack transmitter. Featuring a cardioid polar pattern, the LM-LINK is engineered to minimize unwanted feedback when positioned near a speaker. Additionally, it comes with a clip and a foam windscreen for added convenience and versatility.

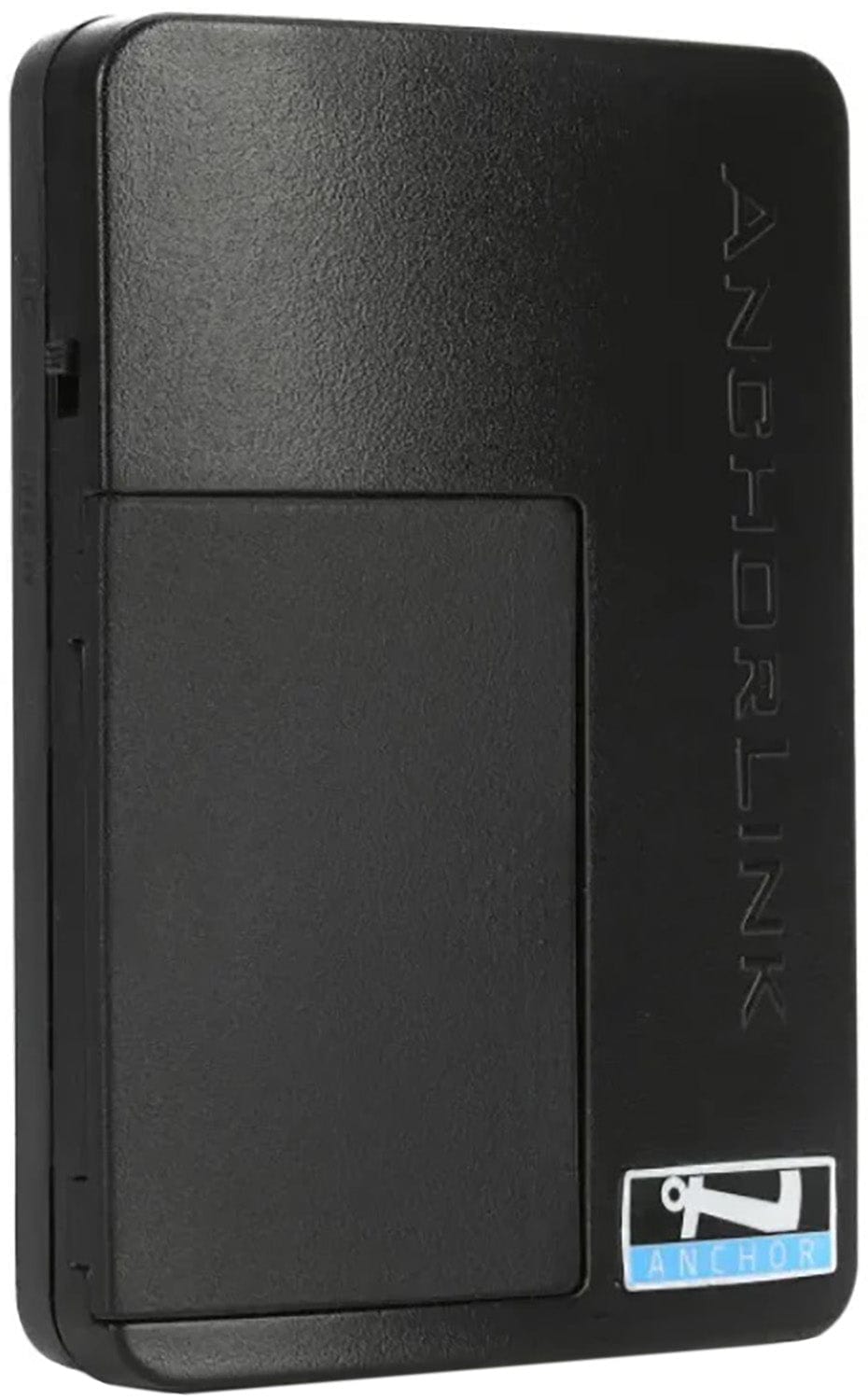

1x Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack

The perfect companion for your Anchor Audio lavalier or headworn mic, the WBL3 is an AnchorLink 3 wireless bodypack transmitter with 16 user-selectable channels. You can link up to four AnchorLink 3 wireless microphones, each with a 300-foot operating range. 6–8 hours of use from two AA batteries that power this portable, easy-to-use unit. You'll also value the WBL3's expansive 20Hz to 20kHz frequency response.

1x Anchor Audio SS-553 Heavy Duty Speaker Stand

The SS-553 Heavy-duty Speaker Stand is specifically designed for the Liberty 3 PA speaker. It features adjustable leg width and height, making it ideal for a wide range of live sound applications. Built for stability and durability, this stand ensures secure and optimal speaker placement in various settings.

Features:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • AnchorLink 3 and Anchor Flex Technology
  • Reaches Crowds of up to 1500 People
  • Integrated Pole Mount for Speaker Stands
  • Telescopic Handle and Wheels
  • Built-In Bluetooth Receiver
  • 200W of Rated Output Power
  • 10" Woofer & Ceramic Compression Driver
  • Integrated Mixer and 2-Band Equalizer
  • Built-In 7h Rechargeable Batteries
  • XLR, 1/4" & 3.5mm Inputs, 1/4" Output
• Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
  • Channels: 16 user-selectable channels
  • Linking: Connect up to 4 AnchorLink 3 wireless mics
  • Range: 300 feet operating range
  • Battery Life: 6–8 hours with 2 AA batteries
  • Frequency Response: 20Hz–20kHz
  • Controls: Volume and mute control
• Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
  • For Hands-Free Presentations
  • Clips to Clothing

  • Cardioid Polar Pattern
  • 3.5mm Connector
• WBL3 - AnchorLink 3 Wireless Beltpack Transmitter Only:
  • Bodypack transmitter with 16 user-selectable channels
  • Link up to 4 AnchorLink 3 wireless mics
  • 300-foot operating range
  • 6–8 hours of use from 2 AA batteries
  • Expansive 20Hz–20kHz frequency response
• Anchor Audio SS-553 Heavy Duty Speaker Stand:
  • Rock-Solid, Roadworthy Construction
  • Designed for the Liberty 3 and PA Systems
  • Adjustable Leg Width and Height for Versatile Setup

Specifications:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • Portable PA System:
    • Speaker Configuration: 1x 2-way loudspeaker
    • Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
    • Amplifier Power Rating: 200 W
  • Speakers:
    • Enclosure Type: Bass-reflex
    • HF Driver: 1x compression driver
    • LF Driver: 1x 10" / 25.4 cm woofer
    • Magnet: HF Driver: Ceramic
  • Performance:
    • Frequency Response: 40 Hz to 20 kHz ±3 dB
    • Maximum SPL: 123 dB
    • I/O Impedance: Hi-Z Input: 10 kilohms, Low-Z Input: 1 kilohms, Line Output: 600 ohms
  • Connectivity:
    • Audio I/O: 2x combo XLR-1/4" TRS balanced mic input, 1x 1/4" TS unbalanced line input, 1x 1/8" / 3.5 mm TRS line input, 1x 1/4" TRS balanced line output
    • Phantom Power: +34 V
    • USB I/O: 1x USB-A (Device Charging)
    • Mobile App Compatible: No
    • Wireless Connectivity: Bluetooth, Wi-Fi
    • Max Wireless Range: 300' / 91.4 m (line of sight)
    • Bluetooth: Yes
  • Power:
    • Battery Type: 2x built-in rechargeable 12.8 V lithium-ion
    • Approximate Battery Life: 7 hours
    • Battery Charging Time: 5 hours
    • Internal Battery Capacity: 10.2 Ah
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
    • Current Consumption: 2 A
    • AC Power I/O: 1x IEC
  • Physical:
    • Transport Options: 1x telescopic handle (top), 2x wheels (bottom)
    • Mounting: 1x pole socket
    • Environmental Resistance: No
    • Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
    • Weight: 44 lb / 20 kg
• Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
  • Configuration: Mic with Transmitter
  • Compatibility: Anchor Audio AnchorLink 3
  • Analog/Digital: Digital
  • Frequency Range: 1.9 GHz
  • Form Factor: Handheld
  • System Operating Range: 300 ft. Line-of-sight
  • Microphone Color: Black
• Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
  • Polar Pattern: Cardioid
  • Connector: 1/8" / 3.5 mm
  • Package Weight: 0.13 lb
  • Box Dimensions (LxWxH): 4.2 x 2.95 x 2.5"
• WBL3 - AnchorLink 3 Wireless Beltpack Transmitter Only:
  • Configuration: Transmitter with Headset
  • Compatibility: Anchor Audio AnchorLink 3
  • Transmitter Frequency Range: 1.9 GHz
  • Form Factor: Bodypack
  • System: Operating Range: 300 ft. Line-of-sight
  • Microphone Color: Black
• Anchor Audio SS-553 Heavy Duty Speaker Stand:
  • Compatibility: Liberty 3 and PA Systems
  • Construction: Heavy-Duty, Durable Build
  • Adjustability: Leg Width and Height
