Anchor Audio 784430 Liberty 3 Hub Connect Set - AnchorLink 3 / AnchorFlex / 2-Pack Handheld / 2-Pack Lapel
1x Anchor Audio LIB3TU Liberty 3 Hub
The Anchor Audio Liberty 3 Hub is designed for powerful amplification, catering to audiences of up to 1500 people. With AnchorFlex 3 and AnchorLink 3 technologies, it offers an integrated Bluetooth receiver, making it suitable for various events. This system supports wireless connections with multiple companion speakers placed up to 300 feet away, and can handle up to four wireless microphones for added convenience. With a robust 200W output, it delivers a sound pressure level of 123 dB and a frequency range of 40 Hz to 20 kHz.
1x Anchor Audio LIB3T Liberty 3 Connect PA with AnchorFlex Transceiver
The Anchor Audio LIB3T Liberty 3 Connect PA system is built to amplify sound for crowds of up to 1500. It includes AnchorFlex 3 technology along with Bluetooth streaming capabilities, making it a versatile choice for various venues. Designed for convenience, it features an integrated pole mount and a user-friendly setup, ensuring high-quality audio performance across diverse environments.
2x Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone
The WHL3 is a wireless handheld microphone offering 16 channels for easy operation. It links up to four mics, providing an operating range of 300 feet. Powered by AA batteries, it ensures 6–8 hours of continuous use while delivering a frequency response of 20Hz to 20kHz for excellent audio quality.
2x Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector
The LM-LINK is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a 3.5 mm connector plug making it compatible with the AnchorLink Series WBL3 bodypack transmitter.

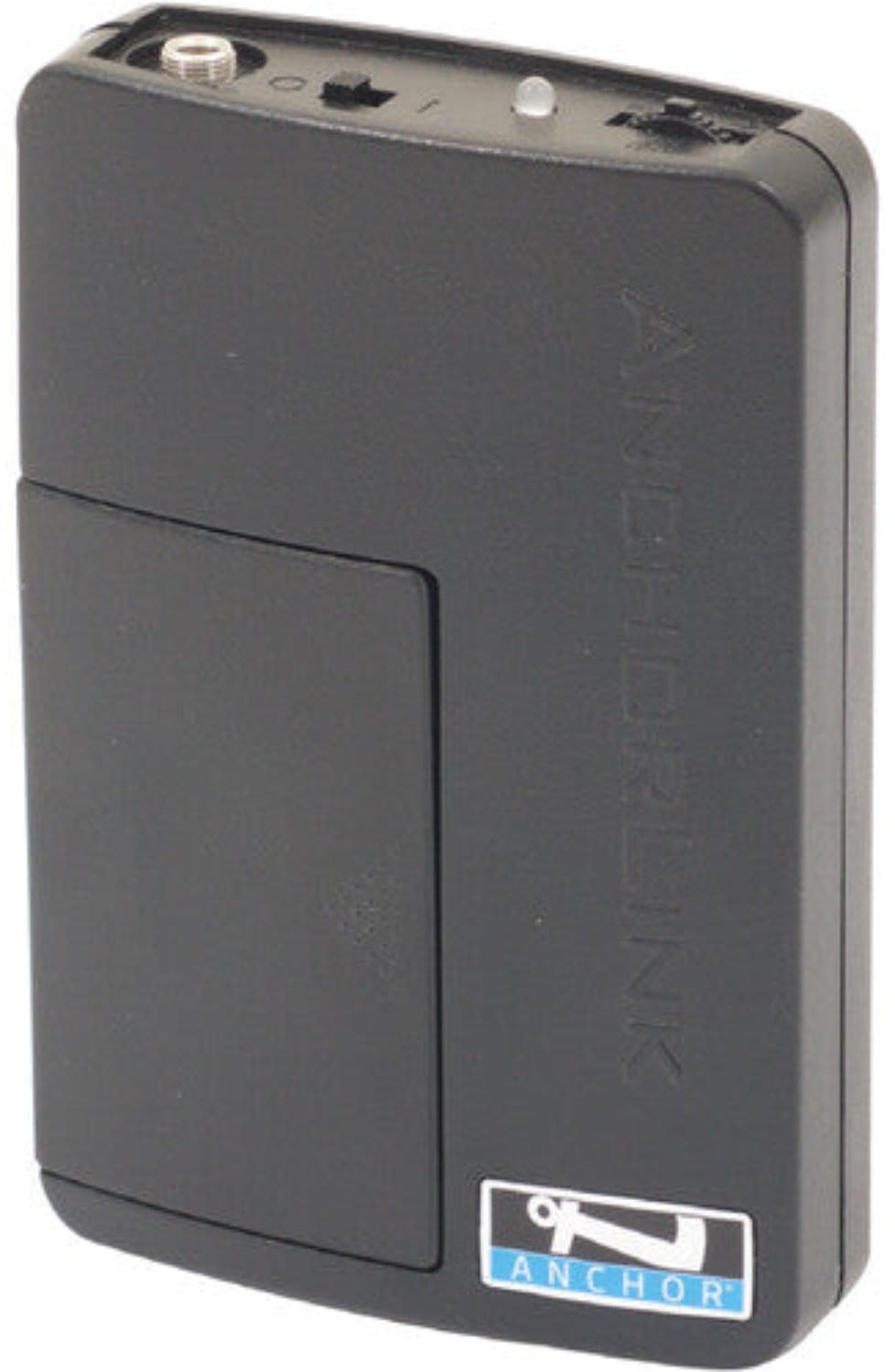

2x Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack
The perfect companion for your Anchor Audio lavalier or headworn mic, the WBL3 is an AnchorLink 3 wireless bodypack transmitter with 16 user-selectable channels. You can link up to four AnchorLink 3 wireless microphones, each with a 300-foot operating range. 6–8 hours of use from two AA batteries that power this portable, easy-to-use unit. You'll also value the WBL3's expansive 20Hz to 20kHz frequency response.
Features:
- Anchor Audio LIB3TU Liberty 3 Hub:
- AnchorLink 3 and Anchor Flex Technology
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount for Speaker Stands
- Telescopic Handle and Wheels
- Built-In Bluetooth Receiver
- 200W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer and 2-Band Equalizer
- Built-In 7h Rechargeable Batteries
- XLR, 1/4" & 3.5mm Inputs, 1/4" Output
- Anchor Audio LIB3T Liberty 3 Connect PA:
- AnchorFlex Connect Multiple Speakers
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount for Speaker Stands
- Telescopic Handle and Wheels
- Built-In Bluetooth Streaming
- 200W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer and 2-Band Equalizer
- Built-In Rechargeable Batteries
- XLR, 1/4" and 3.5mm Inputs, 1/4" Output
- Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
- Channels: 16 user-selectable channels
- Linking: Connect up to 4 AnchorLink 3 wireless mics
- Range: 300 feet operating range
- Battery Life: 6–8 hours with 2 AA batteries
- Frequency Response: 20Hz–20kHz
- Controls: Volume and mute control
- Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
- For Hands-Free Presentations
- Clips to Clothing
- Cardioid Polar Pattern
- 3.5mm Connector
- Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
- Bodypack transmitter with 16 user-selectable channels
- Can link up to 4 AnchorLink 3 wireless mics
- Operating range of 300 feet
- 6–8 hours of use from 2 AA batteries
- Expansive 20Hz–20kHz frequency response
Specifications:
- Anchor Audio LIB3TU Liberty 3 Hub:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Line Input
- 1x 1/4" TRS Balanced Line Output
- Frequency Response: 40 Hz to 20 kHz ±3 dB
- Maximum SPL: 123 dB
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Phantom Power: +34 V
- Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
- Approximate Battery Life: 7 Hours
- Battery Charging Time: 5 Hours
- Internal Battery Capacity: 10.2 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Current Consumption: 2 A
- AC Power I/O: 1x IEC
- Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
- Mounting: 1 x Pole Socket
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Audio I/O:
- USB I/O: 1x USB-A (Device Charging)
- Bluetooth: Yes
- Performance:
- I/O Impedance:
- Wireless Connectivity: Bluetooth, Wi-Fi
- Max Wireless Range: 300' / 91.4 m (Line of Sight)
- Anchor Audio LIB3T Liberty 3 Connect PA:
- Frequency Response: 40 Hz to 20 kHz ±3 dB
- Maximum SPL: 123 dB
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Phantom Power: +34 V
- Audio I/O:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Line Input
- 1x 1/4" TRS Balanced Line Output
- USB I/O: 1x USB-A (Device Charging)
- Mobile App Compatible: No
- Wireless Connectivity: Bluetooth, Wi-Fi
- Max Wireless Range: 300' / 91.4 m (Line of Sight)
- Bluetooth: Yes
- Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
- Approximate Battery Life: 7 Hours
- Battery Charging Time: 5 Hours
- Internal Battery Capacity: 10.2 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Current Consumption: 2 A
- AC Power I/O: 1x IEC
- Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
- Mounting: 1 x Pole Socket
- Environmental Resistance: No
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- Enclosure Type: Speaker (Bass-Reflex)
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
- Configuration: Mic with Transmitter
- Compatibility: Anchor Audio AnchorLink 3
- Analog/Digital: Digital
- Frequency Range: 1.9 GHz
- Form Factor: Handheld
- System Operating Range: 300 ft. Line-of-sight
- Microphone Color: Black
- Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
- Package Weight: 0.13 lb
- Box Dimensions (LxWxH): 4.2 x 2.95 x 2.5"
- Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
- Configuration: Transmitter Only
- Compatibility: Anchor Audio AnchorLink 3
- Form Factor: Bodypack
- System Operating Range: 300 ft. Line-of-sight
- Manufacturer Part Number: WBL3
