Anchor Audio 784270 Liberty 3 Hub Connect Set - AnchorLink 3 / AnchorFlex / 2-Pack Collar Wireless Microphones
1x Anchor Audio LIB3TU Liberty 3 Hub
The Anchor Audio Liberty 3 Hub is a portable PA system designed to provide powerful and versatile amplification for crowds of up to 1500 people. Featuring AnchorFlex 3 technology, AnchorLink 3 technology, and an integrated Bluetooth receiver, it is ideal for use in sports venues, educational facilities, and a variety of indoor and outdoor events. AnchorFlex enables wireless connection of up to 1020 companion speakers, with each speaker capable of being placed up to 300 feet from the main unit. AnchorLink supports up to four wireless microphones for added flexibility. With 200W of output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 delivers sound-pressure levels up to 123 dB and a wide frequency range of 40 Hz to 20 kHz, ensuring clear, full-range sound.
1x Anchor Audio LIB3T Liberty 3 Connect PA with AnchorFlex Transceiver
Designed to deliver versatile and powerful amplification to crowds of up to 1500 people, the Anchor Audio LIB3 Liberty 3 Connect is a portable PA system with AnchorFlex 3 technology and integrated Bluetooth streaming, well suited for sports venues, educational facilities, and various indoor and outdoor events.
2x Anchor Audio CM-LINK Collar Microphone
The Anchor Audio CM-LINK is a collar microphone designed for hands-free presentations, ideal for speakers who prefer convenience and mobility. It features a cardioid polar pattern to reduce unwanted feedback, making it an excellent choice for use near speakers. The microphone is equipped with a 3.5mm connector making it compatible with the AnchorLink Series WBL3 bodypack transmitter.

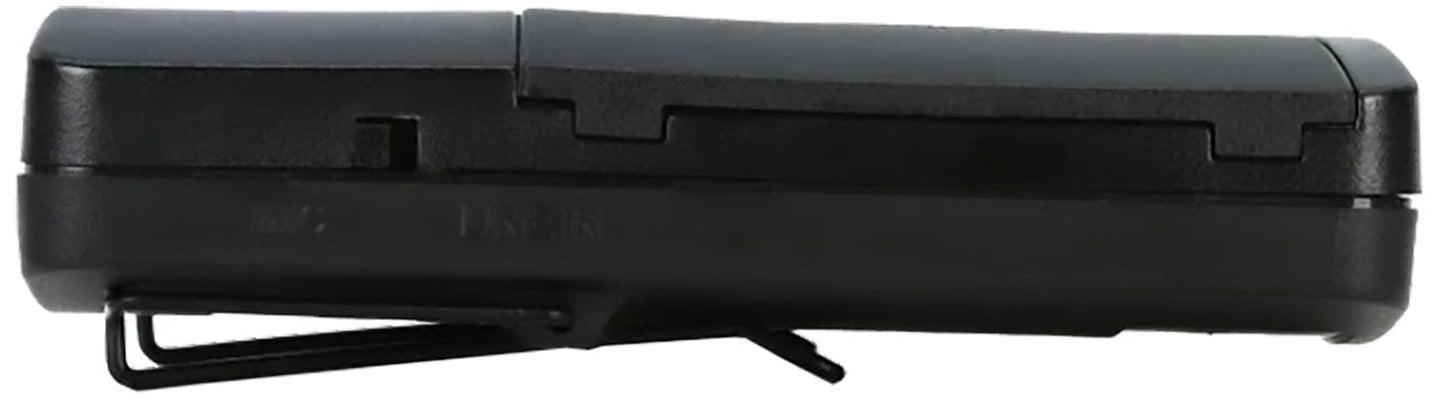

2x Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack
The perfect companion for your Anchor Audio lavalier or headworn mic, the WBL3 is an AnchorLink 3 wireless bodypack transmitter with 16 user-selectable channels. You can link up to four AnchorLink 3 wireless microphones, each with a 300-foot operating range. 6–8 hours of use from two AA batteries that power this portable, easy-to-use unit. You'll also value the WBL3's expansive 20Hz to 20kHz frequency response.
Features:
- Anchor Audio LIB3TU Liberty 3 Hub:
- AnchorLink 3 and Anchor Flex Technology
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount for Speaker Stands
- Telescopic Handle and Wheels
- Built-In Bluetooth Receiver
- 200W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer and 2-Band Equalizer
- Built-In 7h Rechargeable Batteries
- XLR, 1/4" & 3.5mm Inputs, 1/4" Output
- Anchor Audio LIB3T Liberty 3 Connect PA:
- AnchorFlex Connect Multiple Speakers
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount for Speaker Stands
- Telescopic Handle and Wheels
- Built-In Bluetooth Streaming
- 200W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer and 2-Band Equalizer
- Built-In Rechargeable Batteries
- XLR, 1/4" and 3.5mm Inputs, 1/4" Output
- Anchor Audio CM-LINK Collar Microphone:
- For hands-free presentations
- Cardioid polar pattern for minimizing feedback
- 3.5mm connector for easy connection
- Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
- Bodypack transmitter with 16 user-selectable channels
- Can link up to 4 AnchorLink 3 wireless mics
- Operating range of 300 feet
- 6–8 hours of use from 2 AA batteries
- Expansive 20Hz–20kHz frequency response
Specifications:
- Anchor Audio LIB3TU Liberty 3 Hub:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Line Input
- 1x 1/4" TRS Balanced Line Output
- Frequency Response: 40 Hz to 20 kHz ±3 dB
- Maximum SPL: 123 dB
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Phantom Power: +34 V
- Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
- Approximate Battery Life: 7 Hours
- Battery Charging Time: 5 Hours
- Internal Battery Capacity: 10.2 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Current Consumption: 2 A
- AC Power I/O: 1x IEC
- Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
- Mounting: 1 x Pole Socket
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Audio I/O:
- USB I/O: 1x USB-A (Device Charging)
- Bluetooth: Yes
- Performance:
- I/O Impedance:
- Wireless Connectivity: Bluetooth, Wi-Fi
- Max Wireless Range: 300' / 91.4 m (Line of Sight)
- Anchor Audio LIB3T Liberty 3 Connect PA:
- Frequency Response: 40 Hz to 20 kHz ±3 dB
- Maximum SPL: 123 dB
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Phantom Power: +34 V
- Audio I/O:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Line Input
- 1x 1/4" TRS Balanced Line Output
- USB I/O: 1x USB-A (Device Charging)
- Mobile App Compatible: No
- Wireless Connectivity: Bluetooth, Wi-Fi
- Max Wireless Range: 300' / 91.4 m (Line of Sight)
- Bluetooth: Yes
- Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
- Approximate Battery Life: 7 Hours
- Battery Charging Time: 5 Hours
- Internal Battery Capacity: 10.2 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Current Consumption: 2 A
- AC Power I/O: 1x IEC
- Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
- Mounting: 1 x Pole Socket
- Environmental Resistance: No
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- Enclosure Type: Speaker (Bass-Reflex)
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Anchor Audio CM-LINK Collar Microphone:
- Polar Pattern: Cardioid
- Connection: 3.5mm plug
- Operating Voltage: 2 to 10V
- Cable Length: 1.22m
- Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
- Configuration: Transmitter Only
- Compatibility: Anchor Audio AnchorLink 3
- Form Factor: Bodypack
- System Operating Range: 300 ft. Line-of-sight
- Manufacturer Part Number: WBL3
- AnchorLink 3 and Anchor Flex Technology
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount for Speaker Stands
- Telescopic Handle and Wheels
- Built-In Bluetooth Receiver
- 200W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer and 2-Band Equalizer
- Built-In 7h Rechargeable Batteries
- XLR, 1/4" & 3.5mm Inputs, 1/4" Output
- AnchorFlex Connect Multiple Speakers
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount for Speaker Stands
- Telescopic Handle and Wheels
- Built-In Bluetooth Streaming
- 200W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer and 2-Band Equalizer
- Built-In Rechargeable Batteries
- XLR, 1/4" and 3.5mm Inputs, 1/4" Output
- For hands-free presentations
- Cardioid polar pattern for minimizing feedback
- 3.5mm connector for easy connection
- Bodypack transmitter with 16 user-selectable channels
- Can link up to 4 AnchorLink 3 wireless mics
- Operating range of 300 feet
- 6–8 hours of use from 2 AA batteries
- Expansive 20Hz–20kHz frequency response
- Anchor Audio LIB3TU Liberty 3 Hub:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Line Input
- 1x 1/4" TRS Balanced Line Output
- Frequency Response: 40 Hz to 20 kHz ±3 dB
- Maximum SPL: 123 dB
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Phantom Power: +34 V
- Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
- Approximate Battery Life: 7 Hours
- Battery Charging Time: 5 Hours
- Internal Battery Capacity: 10.2 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Current Consumption: 2 A
- AC Power I/O: 1x IEC
- Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
- Mounting: 1 x Pole Socket
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Audio I/O:
- USB I/O: 1x USB-A (Device Charging)
- Bluetooth: Yes
- Performance:
- I/O Impedance:
- Wireless Connectivity: Bluetooth, Wi-Fi
- Max Wireless Range: 300' / 91.4 m (Line of Sight)
- Anchor Audio LIB3T Liberty 3 Connect PA:
- Frequency Response: 40 Hz to 20 kHz ±3 dB
- Maximum SPL: 123 dB
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Phantom Power: +34 V
- Audio I/O:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Line Input
- 1x 1/4" TRS Balanced Line Output
- USB I/O: 1x USB-A (Device Charging)
- Mobile App Compatible: No
- Wireless Connectivity: Bluetooth, Wi-Fi
- Max Wireless Range: 300' / 91.4 m (Line of Sight)
- Bluetooth: Yes
- Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
- Approximate Battery Life: 7 Hours
- Battery Charging Time: 5 Hours
- Internal Battery Capacity: 10.2 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Current Consumption: 2 A
- AC Power I/O: 1x IEC
- Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
- Mounting: 1 x Pole Socket
- Environmental Resistance: No
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- Enclosure Type: Speaker (Bass-Reflex)
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Anchor Audio CM-LINK Collar Microphone:
- Polar Pattern: Cardioid
- Connection: 3.5mm plug
- Operating Voltage: 2 to 10V
- Cable Length: 1.22m
- Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
- Configuration: Transmitter Only
- Compatibility: Anchor Audio AnchorLink 3
- Form Factor: Bodypack
- System Operating Range: 300 ft. Line-of-sight
- Manufacturer Part Number: WBL3
