Anchor Audio 783460 Liberty 3 Hub Pair - AnchorLink 3 / AnchorFlex / 4x Lapel Wireless Mics

Anchor Audio 783460 Liberty 3 Hub Pair - AnchorLink 3 / AnchorFlex / 4-Pack Lapel Wireless Microphones

2x Anchor Audio LIB3TU Liberty 3 Hub

The Anchor Audio Liberty 3 Hub is a portable PA system designed to provide powerful and versatile amplification for crowds of up to 1500 people. Featuring AnchorFlex 3 technology, AnchorLink 3 technology, and an integrated Bluetooth receiver, it is ideal for use in sports venues, educational facilities, and a variety of indoor and outdoor events. AnchorFlex enables wireless connection of up to 1020 companion speakers, with each speaker capable of being placed up to 300 feet from the main unit. AnchorLink supports up to four wireless microphones for added flexibility. With 200W of output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 delivers sound-pressure levels up to 123 dB and a wide frequency range of 40 Hz to 20 kHz, ensuring clear, full-range sound.

4x Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector

The LM-LINK is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a 3.5 mm connector plug.

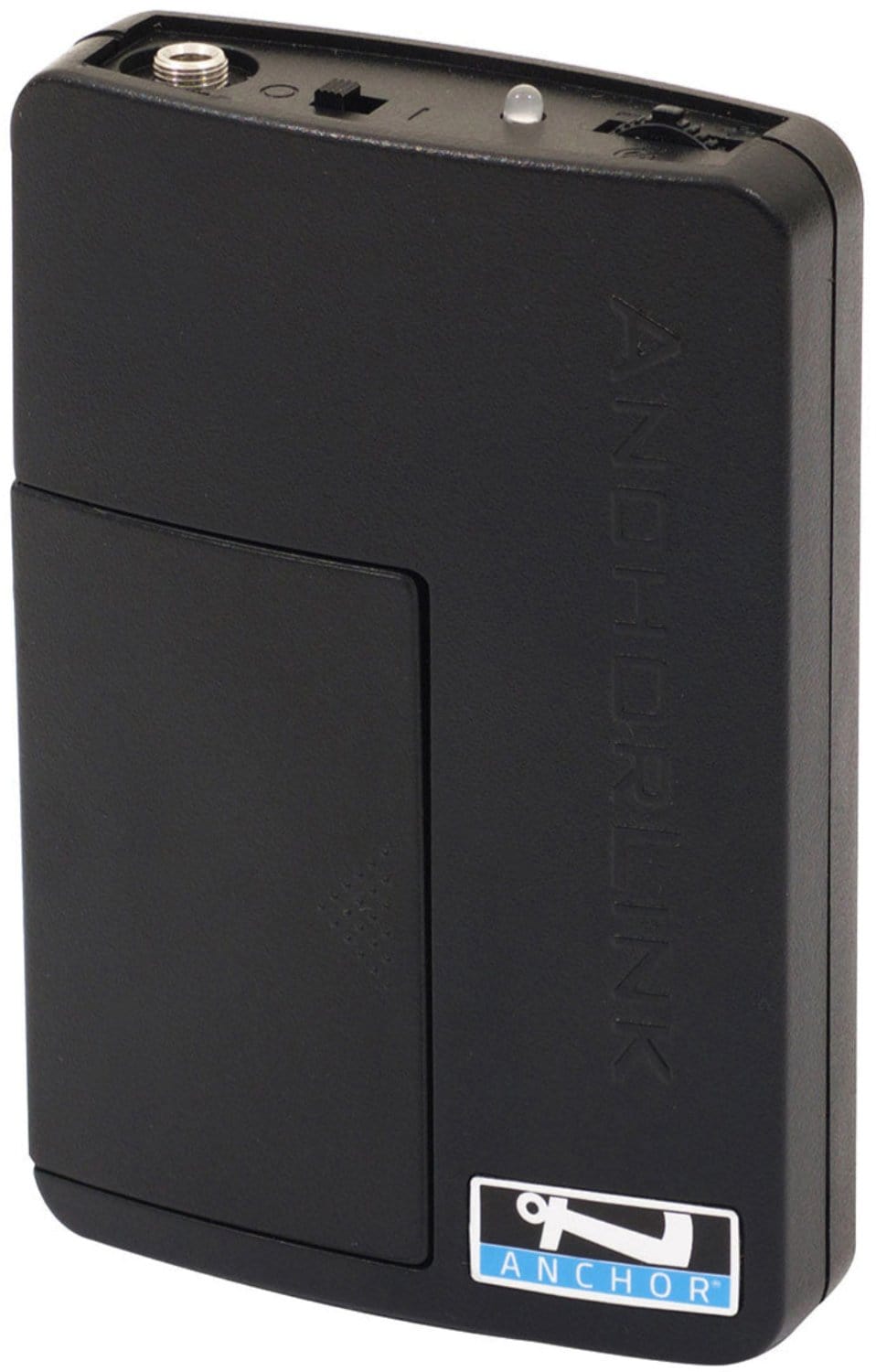

4x Anchor Audio WBL3 Wireless Bodypack Transmitter

The WBL3 wireless bodypack transmitter is an excellent match for your Anchor Audio lavalier or headworn microphone. With 16 user-selectable channels and the ability to link up to four AnchorLink 3 wireless mics, it offers a 300-foot operating range for versatile use. Powered by two AA batteries, the WBL3 delivers 6–8 hours of continuous operation. Its 20Hz to 20kHz frequency response ensures clear, high-quality sound, all within a compact, easy-to-use design.

Features:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • AnchorLink 3 and Anchor Flex Technology
  • Reaches Crowds of up to 1500 People
  • Integrated Pole Mount for Speaker Stands
  • Telescopic Handle and Wheels
  • Built-In Bluetooth Receiver
  • 200W of Rated Output Power
  • 10" Woofer & Ceramic Compression Driver
  • Integrated Mixer and 2-Band Equalizer
  • Built-In 7h Rechargeable Batteries
  • XLR, 1/4" & 3.5mm Inputs, 1/4" Output
• Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
  • For Hands-Free Presentations
  • Clips to Clothing

  • Cardioid Polar Pattern
  • 3.5mm Connector
• Anchor Audio WBL3 Wireless Bodypack Transmitter:
  • Bodypack transmitter featuring 16 selectable channels
  • Supports linking with up to 4 AnchorLink 3 wireless microphones
  • Offers a wide operating range of up to 300 feet
  • Provides 6–8 hours of operation powered by two AA batteries
  • Wide frequency response range of 20Hz–20kHz for clear audio
  • Compatible with microphones that have a 3.5mm connector

Specifications:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • Speaker Configuration: 1x 2-Way Loudspeaker
  • Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
  • Amplifier Power Rating: 200 W
  • HF Driver: 1x Compression Driver
  • LF Driver: 1x 10" / 25.4 cm Woofer
  • Audio I/O:
    • 2x Combo XLR-1/4" TRS Balanced Mic Input
    • 1x 1/4" TS Unbalanced Line Input
    • 1x 1/8" / 3.5 mm TRS Line Input
    • 1x 1/4" TRS Balanced Line Output
  • USB I/O: 1x USB-A (Device Charging)
  • Bluetooth: Yes
  • Speaker Configuration: 1x 2-Way Loudspeaker
  • Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
  • Amplifier Power Rating: 200 W
  • Enclosure Type: Speaker (Bass-Reflex)
  • HF Driver: 1x Compression Driver (Ceramic Magnet)
  • LF Driver: 1x 10" / 25.4 cm Woofer
  • Performance:
    • Frequency Response: 40 Hz to 20 kHz ±3 dB
    • Maximum SPL: 123 dB
  • I/O Impedance:
    • Hi-Z Input: 10 Kilohms
    • Low-Z Input: 1 Kilohms
    • Line Output: 600 Ohms
  • Phantom Power: +34 V
  • USB I/O: 1x USB-A (Device Charging)
  • Wireless Connectivity: Bluetooth, Wi-Fi
  • Max Wireless Range: 300' / 91.4 m (Line of Sight)
  • Battery:
    • Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
    • Approximate Battery Life: 7 Hours
    • Battery Charging Time: 5 Hours
    • Internal Battery Capacity: 10.2 Ah
  • Power:
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
    • Current Consumption: 2 A
    • AC Power I/O: 1x IEC
  • Physical:
    • Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
    • Mounting: 1 x Pole Socket
    • Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
    • Weight: 44 lb / 20 kg
• Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
  • Polar Pattern: Cardioid
  • Connector: 1/8" / 3.5 mm
  • Package Weight: 0.13 lb
  • Box Dimensions (LxWxH): 4.2 x 2.95 x 2.5"
• Anchor Audio WBL3 Wireless Bodypack Transmitter:
  • Form Factor: Bodypack
  • Configuration: Transmitter Only
  • Compatibility: Anchor Audio AnchorLink 3
  • System: Operating Range: 300 ft. Line-of-sight
