Anchor Audio 783450 Liberty 3 Hub Pair - AnchorLink 3 / AnchorFlex / 4-Pack Headband Wireless Microphones
2x Anchor Audio LIB3TU Liberty 3 Hub
The Anchor Audio Liberty 3 Hub is a portable PA system designed to provide powerful and versatile amplification for crowds of up to 1500 people. Featuring AnchorFlex 3 technology, AnchorLink 3 technology, and an integrated Bluetooth receiver, it is ideal for use in sports venues, educational facilities, and a variety of indoor and outdoor events. AnchorFlex enables wireless connection of up to 1020 companion speakers, with each speaker capable of being placed up to 300 feet from the main unit. AnchorLink supports up to four wireless microphones for added flexibility. With 200W of output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 delivers sound-pressure levels up to 123 dB and a wide frequency range of 40 Hz to 20 kHz, ensuring clear, full-range sound.
4x Anchor Audio HBM-LINK Headband Microphone
The Anchor Audio HBM-LINK is a headset microphone, perfect for speakers who prefer the hands-free convenience of a wearable mic. It comes with a 3.5mm connector, making it compatible with the AnchorLink Series WBL3 bodypack transmitter. Featuring a cardioid polar pattern, it is designed to reduce unwanted feedback when used close to a speaker, ensuring clear and focused audio.

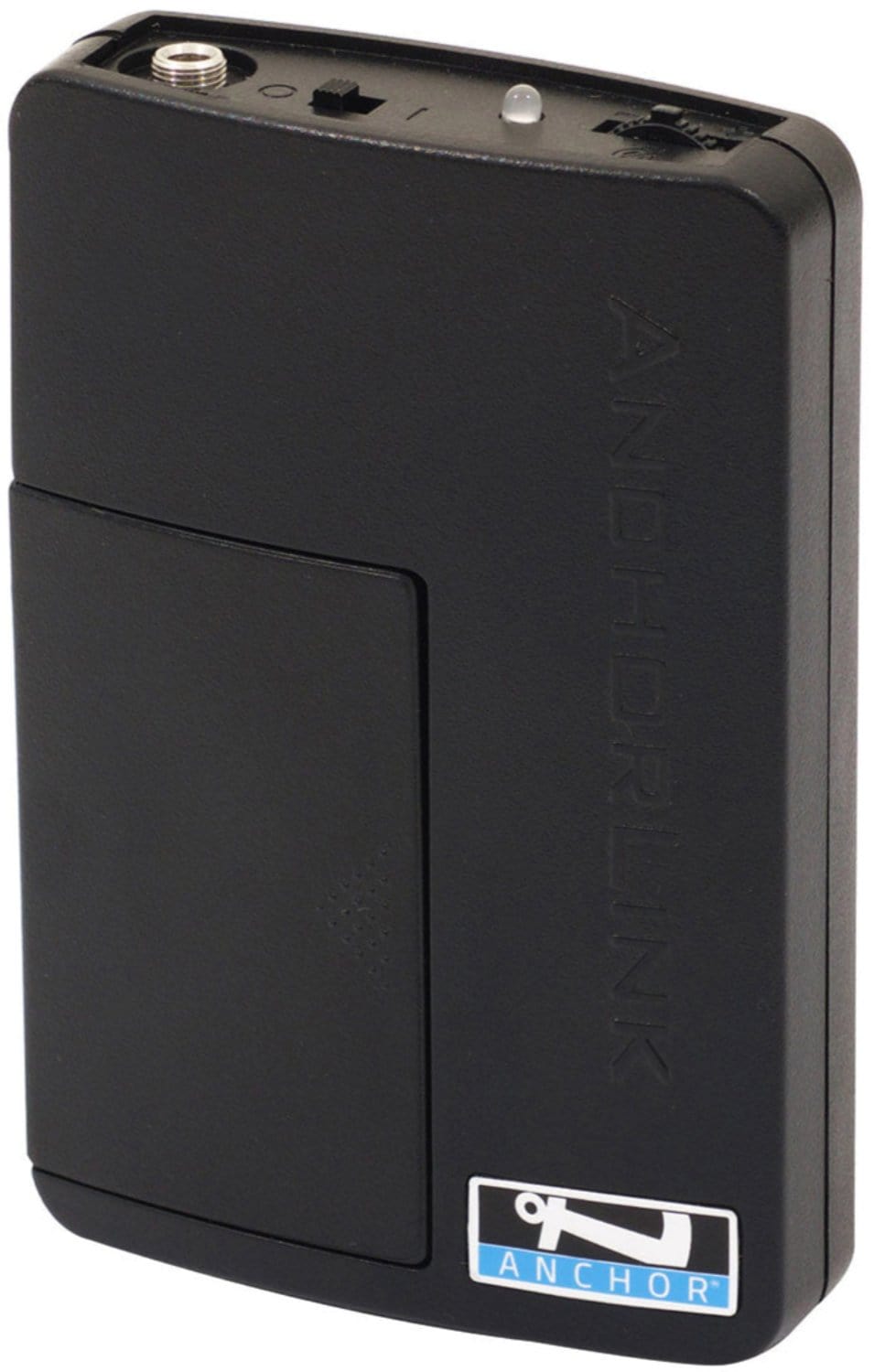

4x Anchor Audio WBL3 Wireless Bodypack Transmitter
The WBL3 wireless bodypack transmitter is an excellent match for your Anchor Audio lavalier or headworn microphone. With 16 user-selectable channels and the ability to link up to four AnchorLink 3 wireless mics, it offers a 300-foot operating range for versatile use. Powered by two AA batteries, the WBL3 delivers 6–8 hours of continuous operation. Its 20Hz to 20kHz frequency response ensures clear, high-quality sound, all within a compact, easy-to-use design.
Features:
- Anchor Audio LIB3TU Liberty 3 Hub:
- AnchorLink 3 and Anchor Flex Technology
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount for Speaker Stands
- Telescopic Handle and Wheels
- Built-In Bluetooth Receiver
- 200W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer and 2-Band Equalizer
- Built-In 7h Rechargeable Batteries
- XLR, 1/4" & 3.5mm Inputs, 1/4" Output
- Anchor Audio HBM-LINK Headband Microphone:
- For Hands-Free Presentations
- Cardioid Polar Pattern
- 3.5mm Connector
- Anchor Audio WBL3 Wireless Bodypack Transmitter:
- Bodypack transmitter featuring 16 selectable channels
- Supports linking with up to 4 AnchorLink 3 wireless microphones
- Offers a wide operating range of up to 300 feet
- Provides 6–8 hours of operation powered by two AA batteries
- Wide frequency response range of 20Hz–20kHz for clear audio
- Compatible with microphones that have a 3.5mm connector
Specifications:
- Anchor Audio LIB3TU Liberty 3 Hub:
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Audio I/O:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Line Input
- 1x 1/4" TRS Balanced Line Output
- USB I/O: 1x USB-A (Device Charging)
- Bluetooth: Yes
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- Enclosure Type: Speaker (Bass-Reflex)
- HF Driver: 1x Compression Driver (Ceramic Magnet)
- LF Driver: 1x 10" / 25.4 cm Woofer
- Performance:
- Frequency Response: 40 Hz to 20 kHz ±3 dB
- Maximum SPL: 123 dB
- I/O Impedance:
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Phantom Power: +34 V
- USB I/O: 1x USB-A (Device Charging)
- Wireless Connectivity: Bluetooth, Wi-Fi
- Max Wireless Range: 300' / 91.4 m (Line of Sight)
- Battery:
- Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
- Approximate Battery Life: 7 Hours
- Battery Charging Time: 5 Hours
- Internal Battery Capacity: 10.2 Ah
- Power:
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Current Consumption: 2 A
- AC Power I/O: 1x IEC
- Physical:
- Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
- Mounting: 1 x Pole Socket
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Anchor Audio HBM-LINK Headband Microphone:
- Polar Pattern: Cardioid
- Frequency Response: 100 Hz to 18 kHz
- Sensitivity: -84 dB ±3 dB
- Connector: 1/8" / 3.5 mm
- Cable Length: 4.0' / 1.2 m
- Package Weight: 0.35 lb
- Box Dimensions (LxWxH): 7.15 x 5.75 x 2.45"
- Anchor Audio WBL3 Wireless Bodypack Transmitter:
- Form Factor: Bodypack
- Configuration: Transmitter Only
- Compatibility: Anchor Audio AnchorLink 3
- System: Operating Range: 300 ft. Line-of-sight
- AnchorLink 3 and Anchor Flex Technology
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount for Speaker Stands
- Telescopic Handle and Wheels
- Built-In Bluetooth Receiver
- 200W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer and 2-Band Equalizer
- Built-In 7h Rechargeable Batteries
- XLR, 1/4" & 3.5mm Inputs, 1/4" Output
- For Hands-Free Presentations
- Cardioid Polar Pattern
- 3.5mm Connector
- Bodypack transmitter featuring 16 selectable channels
- Supports linking with up to 4 AnchorLink 3 wireless microphones
- Offers a wide operating range of up to 300 feet
- Provides 6–8 hours of operation powered by two AA batteries
- Wide frequency response range of 20Hz–20kHz for clear audio
- Compatible with microphones that have a 3.5mm connector
- Anchor Audio LIB3TU Liberty 3 Hub:
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Audio I/O:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Line Input
- 1x 1/4" TRS Balanced Line Output
- USB I/O: 1x USB-A (Device Charging)
- Bluetooth: Yes
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- Enclosure Type: Speaker (Bass-Reflex)
- HF Driver: 1x Compression Driver (Ceramic Magnet)
- LF Driver: 1x 10" / 25.4 cm Woofer
- Performance:
- Frequency Response: 40 Hz to 20 kHz ±3 dB
- Maximum SPL: 123 dB
- I/O Impedance:
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Phantom Power: +34 V
- USB I/O: 1x USB-A (Device Charging)
- Wireless Connectivity: Bluetooth, Wi-Fi
- Max Wireless Range: 300' / 91.4 m (Line of Sight)
- Battery:
- Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
- Approximate Battery Life: 7 Hours
- Battery Charging Time: 5 Hours
- Internal Battery Capacity: 10.2 Ah
- Power:
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Current Consumption: 2 A
- AC Power I/O: 1x IEC
- Physical:
- Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
- Mounting: 1 x Pole Socket
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Anchor Audio HBM-LINK Headband Microphone:
- Polar Pattern: Cardioid
- Frequency Response: 100 Hz to 18 kHz
- Sensitivity: -84 dB ±3 dB
- Connector: 1/8" / 3.5 mm
- Cable Length: 4.0' / 1.2 m
- Package Weight: 0.35 lb
- Box Dimensions (LxWxH): 7.15 x 5.75 x 2.45"
- Anchor Audio WBL3 Wireless Bodypack Transmitter:
- Form Factor: Bodypack
- Configuration: Transmitter Only
- Compatibility: Anchor Audio AnchorLink 3
- System: Operating Range: 300 ft. Line-of-sight
