Anchor Audio 783435 Liberty 3 Hub Pair - AnchorLink 3 / AnchorFlex / 2-Pack Handheld / 2-Pack Collar Microphones
2x Anchor Audio LIB3TU Liberty 3 Hub
The Anchor Audio Liberty 3 Hub is a portable PA system designed to provide powerful and versatile amplification for crowds of up to 1500 people. Featuring AnchorFlex 3 technology, AnchorLink 3 technology, and an integrated Bluetooth receiver, it is ideal for use in sports venues, educational facilities, and a variety of indoor and outdoor events. AnchorFlex enables wireless connection of up to 1020 companion speakers, with each speaker capable of being placed up to 300 feet from the main unit. AnchorLink supports up to four wireless microphones for added flexibility. With 200W of output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 delivers sound-pressure levels up to 123 dB and a wide frequency range of 40 Hz to 20 kHz, ensuring clear, full-range sound.
2x Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone
The WHL3 is an AnchorLink 3 wireless handheld transmitter featuring 16 user-selectable channels. It allows you to link up to four microphones, each offering a range of up to 300 feet. Powered by two AA batteries, the WHL3 provides 6–8 hours of continuous use. With a frequency response of 20Hz to 20kHz, it ensures high-quality audio, and includes convenient volume and mute controls for easy and efficient operation.
2x Anchor Audio CM-LINK Cardioid Collar Microphone
The CM-LINK is a collar microphone element that can be easily hidden underneath a collared shirt. It has a flexible design for microphone angle adjustment. The collar microphone has a 3.5 mm connector plug.

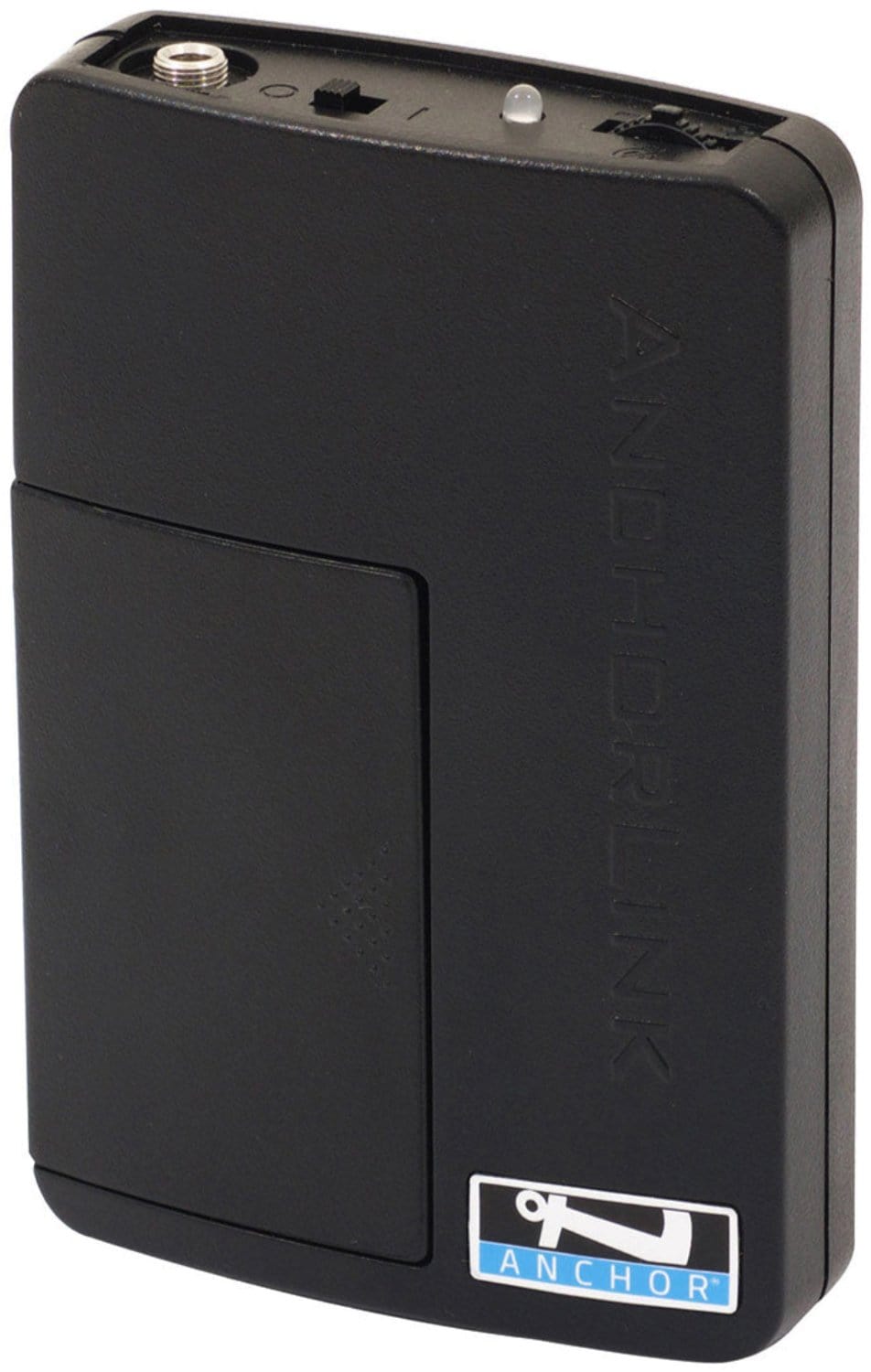

2x Anchor Audio WBL3 Wireless Bodypack Transmitter
The WBL3 wireless bodypack transmitter is an excellent match for your Anchor Audio lavalier or headworn microphone. With 16 user-selectable channels and the ability to link up to four AnchorLink 3 wireless mics, it offers a 300-foot operating range for versatile use. Powered by two AA batteries, the WBL3 delivers 6–8 hours of continuous operation. Its 20Hz to 20kHz frequency response ensures clear, high-quality sound, all within a compact, easy-to-use design.
Features:
- Anchor Audio LIB3TU Liberty 3 Hub:
- AnchorLink 3 and Anchor Flex Technology
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount for Speaker Stands
- Telescopic Handle and Wheels
- Built-In Bluetooth Receiver
- 200W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer and 2-Band Equalizer
- Built-In 7h Rechargeable Batteries
- XLR, 1/4" & 3.5mm Inputs, 1/4" Output
- Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
- Channels: 16 user-selectable channels
- Linking: Connect up to 4 AnchorLink 3 wireless mics
- Range: 300 feet operating range
- Battery Life: 6–8 hours with 2 AA batteries
- Frequency Response: 20Hz–20kHz
- Controls: Volume and mute control
- Anchor Audio CM-LINK Cardioid Collar Microphone:
- Discreet mic design
- Easily hides under your shirt collar
- Flexible construction for easy angle adjustment
- 3.5 mm connector plug for broad compatibility
- Cardioid polar pattern reduces feedback near speakers
- Ideal for professional presentations, conferences, and public speaking
- Ensures clear, hands-free audio without compromising on style
- Works with any transmitter that uses a 3.5 mm connector
- Includes foam windscreen for immediate use
- Anchor Audio WBL3 Wireless Bodypack Transmitter:
- Bodypack transmitter featuring 16 selectable channels
- Supports linking with up to 4 AnchorLink 3 wireless microphones
- Offers a wide operating range of up to 300 feet
- Provides 6–8 hours of operation powered by two AA batteries
- Wide frequency response range of 20Hz–20kHz for clear audio
- Compatible with microphones that have a 3.5mm connector
Specifications:
- Anchor Audio LIB3TU Liberty 3 Hub:
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Audio I/O:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Line Input
- 1x 1/4" TRS Balanced Line Output
- USB I/O: 1x USB-A (Device Charging)
- Bluetooth: Yes
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- Enclosure Type: Speaker (Bass-Reflex)
- HF Driver: 1x Compression Driver (Ceramic Magnet)
- LF Driver: 1x 10" / 25.4 cm Woofer
- Performance:
- Frequency Response: 40 Hz to 20 kHz ±3 dB
- Maximum SPL: 123 dB
- I/O Impedance:
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Phantom Power: +34 V
- USB I/O: 1x USB-A (Device Charging)
- Wireless Connectivity: Bluetooth, Wi-Fi
- Max Wireless Range: 300' / 91.4 m (Line of Sight)
- Battery:
- Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
- Approximate Battery Life: 7 Hours
- Battery Charging Time: 5 Hours
- Internal Battery Capacity: 10.2 Ah
- Power:
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Current Consumption: 2 A
- AC Power I/O: 1x IEC
- Physical:
- Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
- Mounting: 1 x Pole Socket
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
- Configuration: Mic with Transmitter
- Compatibility: Anchor Audio AnchorLink 3
- Analog/Digital: Digital
- Frequency Range: 1.9 GHz
- Form Factor: Handheld
- System Operating Range: 300 ft. Line-of-sight
- Microphone Color: Black
- Anchor Audio CM-LINK Cardioid Collar Microphone:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
- Package Weight: 0.47 lb
- Box Dimensions (LxWxH): 8.35 x 6.55 x 2.5"
- Anchor Audio WBL3 Wireless Bodypack Transmitter:
- Form Factor: Bodypack
- Configuration: Transmitter Only
- Compatibility: Anchor Audio AnchorLink 3
- System: Operating Range: 300 ft. Line-of-sight
