Anchor Audio 783260 Liberty 3 Hub Pair - AnchorLink 3 / AnchorFlex / 2x Lapel Wireless Microphones
2x Anchor Audio LIB3TU Liberty 3 Hub
The Anchor Audio Liberty 3 Hub is a portable PA system designed to provide powerful and versatile amplification for crowds of up to 1500 people. Featuring AnchorFlex 3 technology, AnchorLink 3 technology, and an integrated Bluetooth receiver, it is ideal for use in sports venues, educational facilities, and a variety of indoor and outdoor events. AnchorFlex enables wireless connection of up to 1020 companion speakers, with each speaker capable of being placed up to 300 feet from the main unit. AnchorLink supports up to four wireless microphones for added flexibility. With 200W of output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 delivers sound-pressure levels up to 123 dB and a wide frequency range of 40 Hz to 20 kHz, ensuring clear, full-range sound.
2x Anchor Audio Lapel Microphone Element
The Anchor Audio LM-LINK is a lavalier microphone designed for speakers who prefer the hands-free convenience of a wearable mic. It includes a 3.5mm connector for compatibility with the AnchorLink Series WBL3 bodypack transmitter. Featuring a cardioid polar pattern, the LM-LINK is engineered to minimize unwanted feedback when positioned near a speaker. Additionally, it comes with a clip and a foam windscreen for added convenience and versatility.

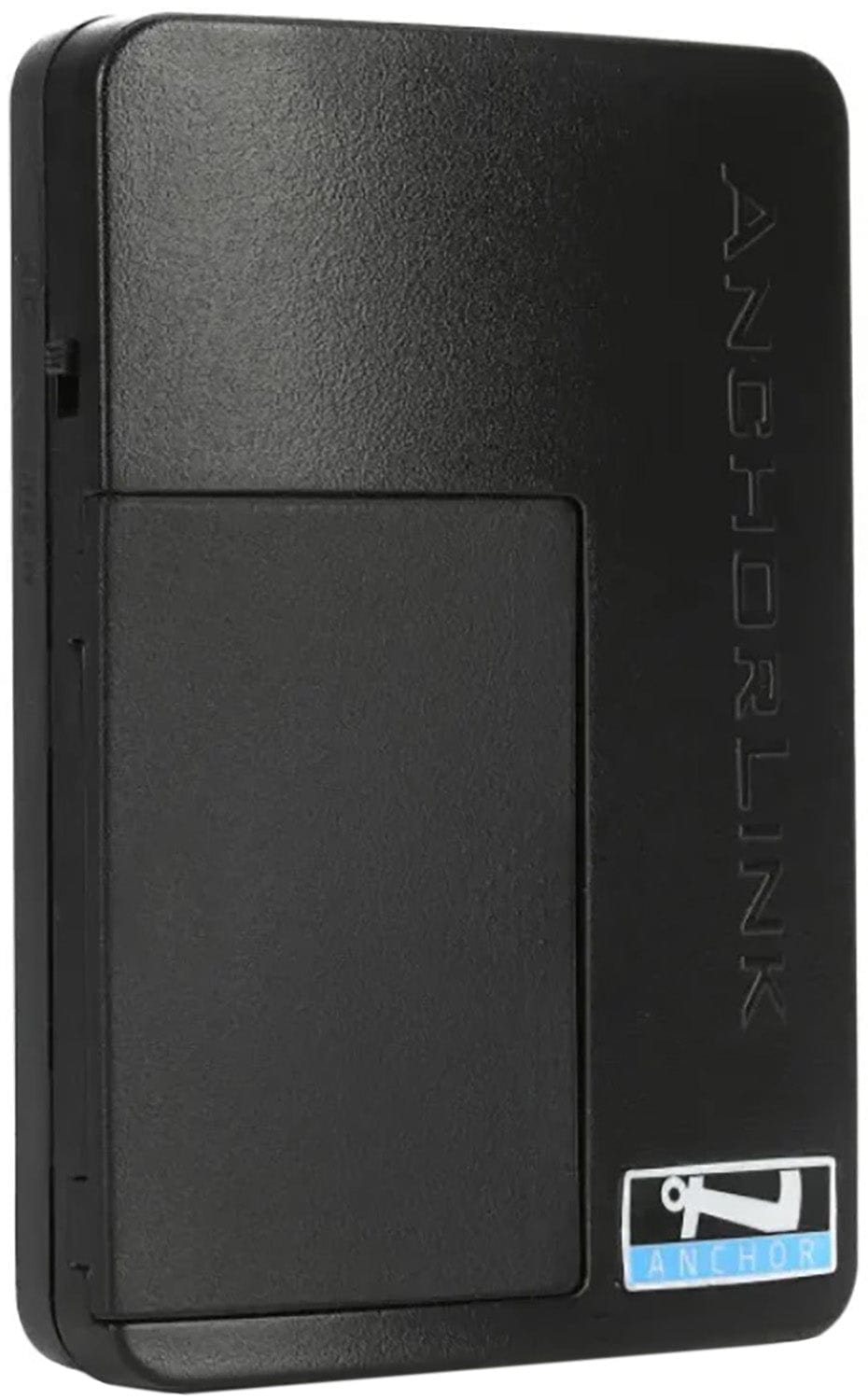

2x Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack
The perfect companion for your Anchor Audio lavalier or headworn mic, the WBL3 is an AnchorLink 3 wireless bodypack transmitter with 16 user-selectable channels. You can link up to four AnchorLink 3 wireless microphones, each with a 300-foot operating range. At Sweetwater, we were impressed by the 6–8 hours of use from two AA batteries that power this portable, easy-to-use unit. You'll also value the WBL3's expansive 20Hz to 20kHz frequency response.
Features:
- Anchor Audio LIB3TU Liberty 3 Hub:
- AnchorLink 3 and Anchor Flex Technology
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount for Speaker Stands
- Telescopic Handle and Wheels
- Built-In Bluetooth Receiver
- 200W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer and 2-Band Equalizer
- Built-In 7h Rechargeable Batteries
- XLR, 1/4" & 3.5mm Inputs, 1/4" Output
- Anchor Audio Lapel Microphone Element:
- For Hands-Free Presentations
- Clips to Clothing
- Cardioid Polar Pattern
- 3.5mm Connector
- Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
- Bodypack transmitter with 16 user-selectable channels
- You can link up to 4 AnchorLink 3 wireless mics
- Generous operating range of 300 feet
- Achieve 6–8 hours of use from 2 AA batteries
- Expansive 20Hz–20kHz frequency response
- Requires a microphone with a 3.5mm connector
Specifications:
- Anchor Audio LIB3TU Liberty 3 Hub:
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Audio I/O: 2x Combo XLR-1/4" TRS Balanced Mic Input, 1x 1/4" TS Unbalanced Line Input, 1x 1/8" / 3.5 mm TRS Line Input, 1x 1/4" TRS Balanced Line Output
- USB I/O: 1x USB-A (Device Charging)
- Bluetooth: Yes
- Enclosure Type: Speaker (Bass-Reflex)
- Frequency Response: 40 Hz to 20 kHz ±3 dB
- Maximum SPL: 123 dB
- Wireless Connectivity: Bluetooth, Wi-Fi
- Max Wireless Range: 300' / 91.4 m (Line of Sight)
- Battery Life: 7 Hours
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Anchor Audio Lapel Microphone Element:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
- Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
- Configuration: Transmitter Only
- Compatibility: Anchor Audio AnchorLink 3
- Form Factor: Bodypack
- System Operating Range: 300 ft. Line-of-sight
- Manufacturer Part Number: WBL3
