Anchor Audio 781470 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / 4x Collar Wireless Mics

Anchor Audio 781470 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / 4x Collar Wireless Microphones

1x Anchor Audio LIB3TU Liberty 3 Hub

The Anchor Audio Liberty 3 Hub is designed for powerful amplification, catering to audiences of up to 1500 people. With AnchorFlex 3 and AnchorLink 3 technologies, it offers an integrated Bluetooth receiver, making it suitable for various events. This system supports wireless connections with multiple companion speakers placed up to 300 feet away, and can handle up to four wireless microphones for added convenience. With a robust 200W output, it delivers a sound pressure level of 123 dB and a frequency range of 40 Hz to 20 kHz.

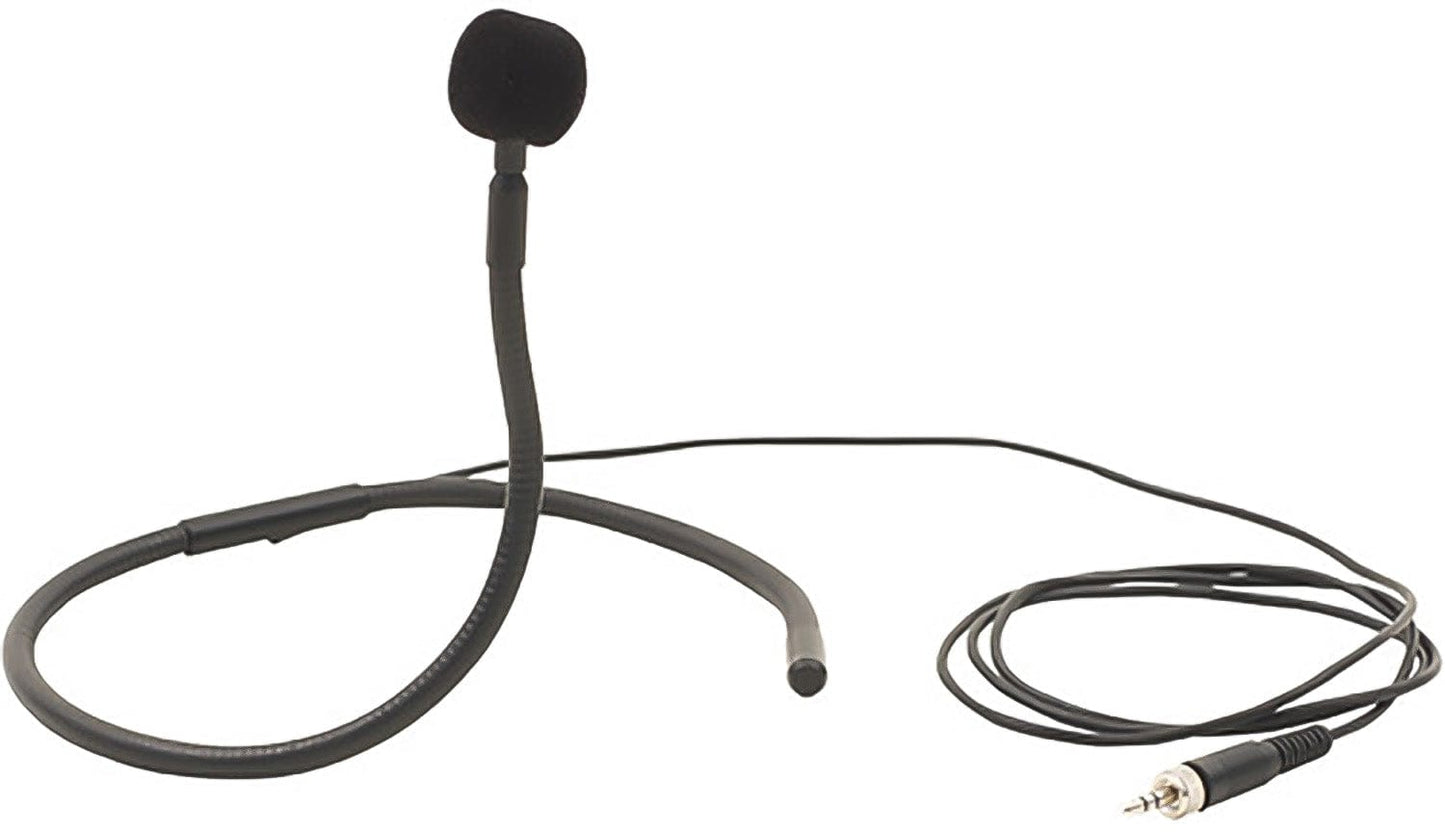

4x CM-LINK - Collar Microphone with 3.5 mm plug

The CM-LINK is a collar microphone element that can be easily hidden underneath a collared shirt. It has a flexible design for microphone angle adjustment. The collar microphone has a 3.5 mm connector plug.

4x AnchorLink 3 Wireless Beltpack Transmitter

The AnchorLink 3 Wireless Beltpack Transmitter is only compatible with the new Anchor Audio Series 3 Technology Systems. The bodypack transmitter includes 16 user-selectable channels and supports linking up to four AnchorLink 3 wireless microphones, each with a 300-foot range. Powered by two AA batteries, it provides 6–8 hours of use.

Features:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • AnchorLink 3 and Anchor Flex Technology
  • Reaches Crowds of up to 1500 People
  • Integrated Pole Mount for Speaker Stands
  • Telescopic Handle and Wheels
  • Built-In Bluetooth Receiver
  • 200W of Rated Output Power
  • 10" Woofer & Ceramic Compression Driver
  • Integrated Mixer and 2-Band Equalizer
  • Built-In 7h Rechargeable Batteries
  • XLR, 1/4" & 3.5mm Inputs, 1/4" Output
• CM-LINK:
  • For Hands-Free Presentations

  • Cardioid Polar Pattern
  • 3.5mm Connector
• WBL3 - AnchorLink 3 Wireless Beltpack Transmitter:
  • Bodypack transmitter with 16 user-selectable channels
  • Link up to 4 AnchorLink 3 wireless mics
  • 300-foot operating range
  • 6–8 hours of use from 2 AA batteries
  • Expansive 20Hz–20kHz frequency response

Specifications:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • Portable PA System:
    • Speaker Configuration: 1x 2-way loudspeaker
    • Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
    • Amplifier Power Rating: 200 W
  • Speakers:
    • Enclosure Type: Bass-reflex
    • HF Driver: 1x compression driver
    • LF Driver: 1x 10" / 25.4 cm woofer
    • Magnet: HF Driver: Ceramic
  • Performance:
    • Frequency Response: 40 Hz to 20 kHz ±3 dB
    • Maximum SPL: 123 dB
    • I/O Impedance: Hi-Z Input: 10 kilohms, Low-Z Input: 1 kilohms, Line Output: 600 ohms
  • Connectivity:
    • Audio I/O: 2x combo XLR-1/4" TRS balanced mic input, 1x 1/4" TS unbalanced line input, 1x 1/8" / 3.5 mm TRS line input, 1x 1/4" TRS balanced line output
    • Phantom Power: +34 V
    • USB I/O: 1x USB-A (Device Charging)
    • Mobile App Compatible: No
    • Wireless Connectivity: Bluetooth, Wi-Fi
    • Max Wireless Range: 300' / 91.4 m (line of sight)
    • Bluetooth: Yes
  • Power:
    • Battery Type: 2x built-in rechargeable 12.8 V lithium-ion
    • Approximate Battery Life: 7 hours
    • Battery Charging Time: 5 hours
    • Internal Battery Capacity: 10.2 Ah
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
    • Current Consumption: 2 A
    • AC Power I/O: 1x IEC
  • Physical:
    • Transport Options: 1x telescopic handle (top), 2x wheels (bottom)
    • Mounting: 1x pole socket
    • Environmental Resistance: No
    • Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
    • Weight: 44 lb / 20 kg
• CM-LINK:
  • Polar Pattern: Cardioid
  • Connector: 1/8" / 3.5 mm
• WBL3 - AnchorLink 3 Wireless Beltpack Transmitter:
  • Configuration: Transmitter with Headset
  • Compatibility: Anchor Audio AnchorLink 3
  • Transmitter Frequency Range: 1.9 GHz
  • Form Factor: Bodypack
  • System: Operating Range: 300 ft. Line-of-sight
  • Microphone Color: Black
