Anchor Audio 781450 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / 4x Headband Wireless Mics

Anchor Audio 781450 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / 4x Headband Wireless Microphones

1x Anchor Audio LIB3TU Liberty 3 Hub

The Anchor Audio Liberty 3 Hub is designed for powerful amplification, catering to audiences of up to 1500 people. With AnchorFlex 3 and AnchorLink 3 technologies, it offers an integrated Bluetooth receiver, making it suitable for various events. This system supports wireless connections with multiple companion speakers placed up to 300 feet away, and can handle up to four wireless microphones for added convenience. With a robust 200W output, it delivers a sound pressure level of 123 dB and a frequency range of 40 Hz to 20 kHz.

4x Anchor Audio HBM-LINK Headband Microphone

The Anchor Audio HBM-LINK is a headset microphone, perfect for speakers who prefer the hands-free convenience of a wearable mic. It comes with a 3.5mm connector, making it compatible with the AnchorLink Series WBL3 bodypack transmitter. Featuring a cardioid polar pattern, it is designed to reduce unwanted feedback when used close to a speaker, ensuring clear and focused audio.

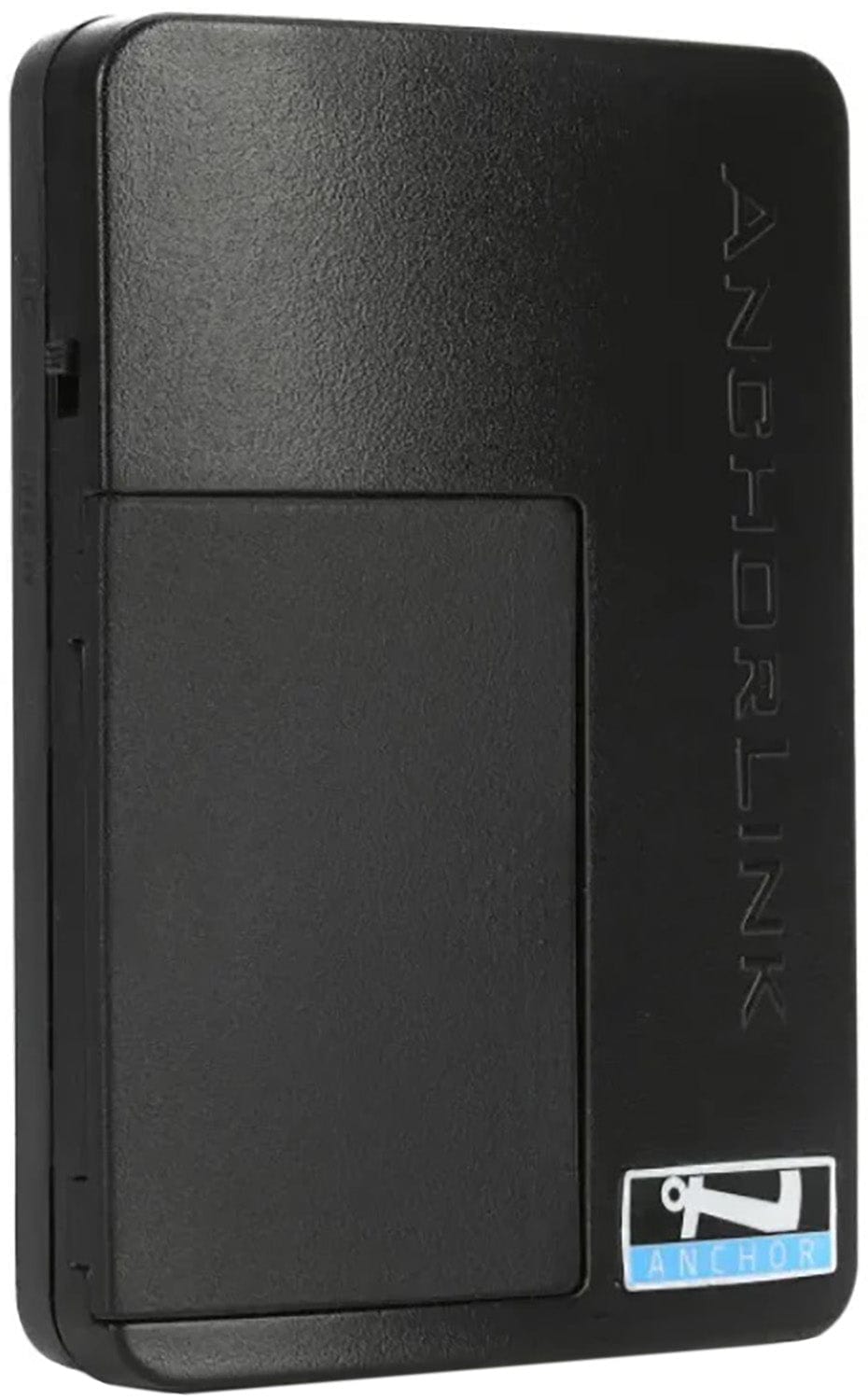

4x Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack

The perfect companion for your Anchor Audio lavalier or headworn mic, the WBL3 is an AnchorLink 3 wireless bodypack transmitter with 16 user-selectable channels. You can link up to four AnchorLink 3 wireless microphones, each with a 300-foot operating range. 6–8 hours of use from two AA batteries that power this portable, easy-to-use unit. You'll also value the WBL3's expansive 20Hz to 20kHz frequency response.

Features:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • AnchorLink 3 and Anchor Flex Technology
  • Reaches Crowds of up to 1500 People
  • Integrated Pole Mount for Speaker Stands
  • Telescopic Handle and Wheels
  • Built-In Bluetooth Receiver
  • 200W of Rated Output Power
  • 10" Woofer & Ceramic Compression Driver
  • Integrated Mixer and 2-Band Equalizer
  • Built-In 7h Rechargeable Batteries
  • XLR, 1/4" & 3.5mm Inputs, 1/4" Output
• HBM-LINK - Headband Microphone with 3.5mm plug:
  • For hands-free presentations

  • Cardioid polar pattern
  • 3.5mm connector
• WBL3 - AnchorLink 3 Wireless Beltpack Transmitter:
  • Bodypack transmitter with 16 user-selectable channels
  • Link up to 4 AnchorLink 3 wireless mics
  • 300-foot operating range
  • 6–8 hours of use from 2 AA batteries
  • Expansive 20Hz–20kHz frequency response

Specifications:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • Portable PA System:
    • Speaker Configuration: 1x 2-way loudspeaker
    • Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
    • Amplifier Power Rating: 200 W
  • Speakers:
    • Enclosure Type: Bass-reflex
    • HF Driver: 1x compression driver
    • LF Driver: 1x 10" / 25.4 cm woofer
    • Magnet: HF Driver: Ceramic
  • Performance:
    • Frequency Response: 40 Hz to 20 kHz ±3 dB
    • Maximum SPL: 123 dB
    • I/O Impedance: Hi-Z Input: 10 kilohms, Low-Z Input: 1 kilohms, Line Output: 600 ohms
  • Connectivity:
    • Audio I/O: 2x combo XLR-1/4" TRS balanced mic input, 1x 1/4" TS unbalanced line input, 1x 1/8" / 3.5 mm TRS line input, 1x 1/4" TRS balanced line output
    • Phantom Power: +34 V
    • USB I/O: 1x USB-A (Device Charging)
    • Mobile App Compatible: No
    • Wireless Connectivity: Bluetooth, Wi-Fi
    • Max Wireless Range: 300' / 91.4 m (line of sight)
    • Bluetooth: Yes
  • Power:
    • Battery Type: 2x built-in rechargeable 12.8 V lithium-ion
    • Approximate Battery Life: 7 hours
    • Battery Charging Time: 5 hours
    • Internal Battery Capacity: 10.2 Ah
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
    • Current Consumption: 2 A
    • AC Power I/O: 1x IEC
  • Physical:
    • Transport Options: 1x telescopic handle (top), 2x wheels (bottom)
    • Mounting: 1x pole socket
    • Environmental Resistance: No
    • Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
    • Weight: 44 lb / 20 kg
• HBM-LINK - Headband Microphone with 3.5mm plug:
  • Polar pattern: Cardioid
  • Frequency response: 100 Hz to 18 kHz
  • Sensitivity: -84 dB ±3 dB
  • Connector: 1/8" / 3.5 mm
  • Cable length: 4.0' / 1.2 m
• WBL3 - AnchorLink 3 Wireless Beltpack Transmitter:
  • Configuration: Transmitter with Headset
  • Compatibility: Anchor Audio AnchorLink 3
  • Transmitter Frequency Range: 1.9 GHz
  • Form Factor: Bodypack
  • System: Operating Range: 300 ft. Line-of-sight
  • Microphone Color: Black
