Anchor Audio 781260 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / 2x Lapel Wireless Mics

Anchor Audio 781260 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / 2-Pack Lapel Wireless Microphones

1x Anchor Audio LIB3TU Liberty 3 Hub

The Anchor Audio Liberty 3 Hub is a portable PA system designed to provide powerful and versatile amplification for crowds of up to 1500 people. Featuring AnchorFlex 3 technology, AnchorLink 3 technology, and an integrated Bluetooth receiver, it is ideal for use in sports venues, educational facilities, and a variety of indoor and outdoor events. AnchorFlex enables wireless connection of up to 1020 companion speakers, with each speaker capable of being placed up to 300 feet from the main unit. AnchorLink supports up to four wireless microphones for added flexibility. With 200W of output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 delivers sound-pressure levels up to 123 dB and a wide frequency range of 40 Hz to 20 kHz, ensuring clear, full-range sound.

2x Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector

The LM-LINK is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a 3.5 mm connector plug.

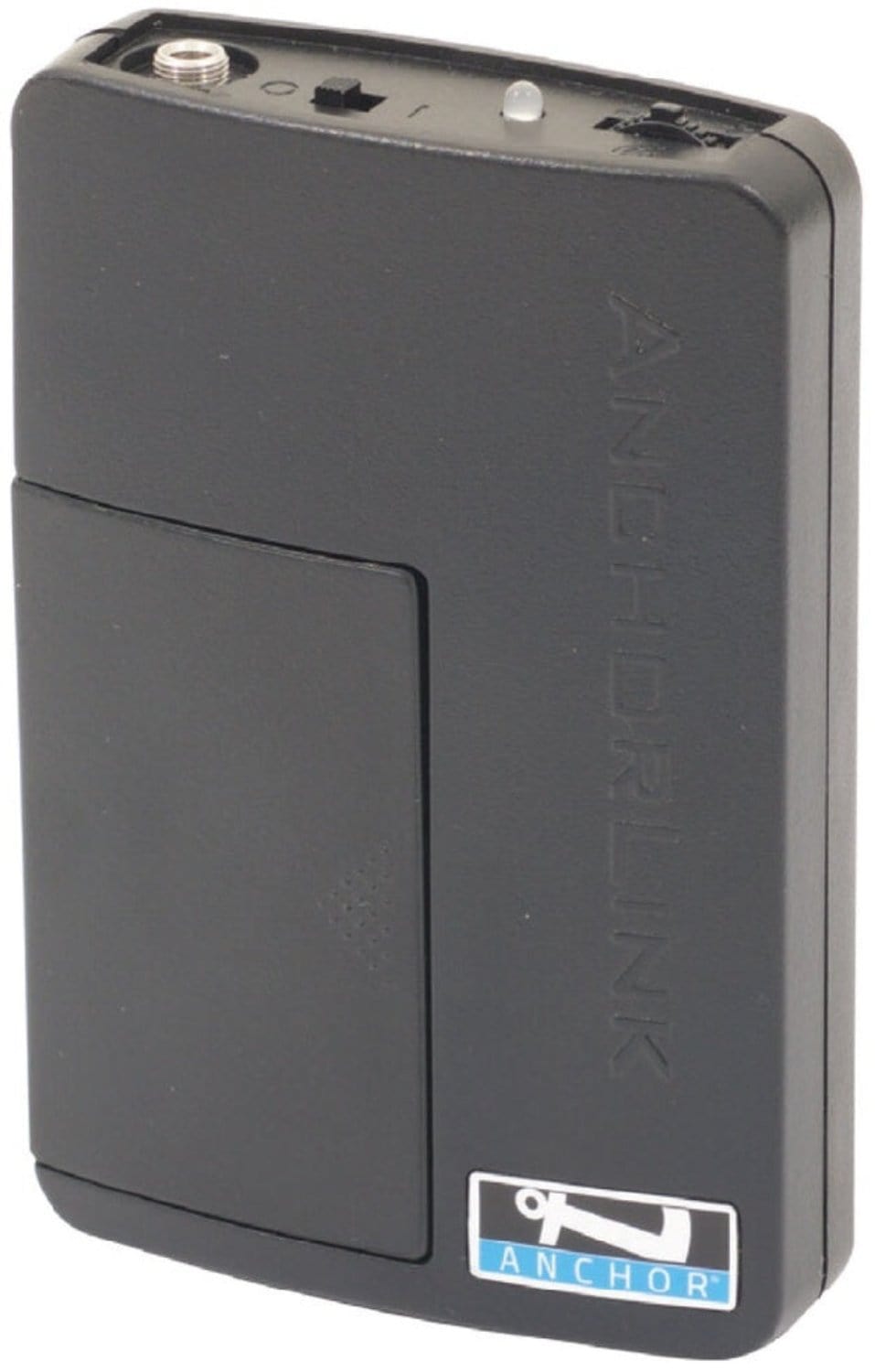

2x Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack

The perfect companion for your Anchor Audio lavalier or headworn mic, the WBL3 is an AnchorLink 3 wireless bodypack transmitter with 16 user-selectable channels. You can link up to four AnchorLink 3 wireless microphones, each with a 300-foot operating range. 6–8 hours of use from two AA batteries that power this portable, easy-to-use unit. You'll also value the WBL3's expansive 20Hz to 20kHz frequency response.

Features:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • AnchorLink 3 and Anchor Flex Technology
  • Reaches Crowds of up to 1500 People
  • Integrated Pole Mount for Speaker Stands
  • Telescopic Handle and Wheels
  • Built-In Bluetooth Receiver
  • 200W of Rated Output Power
  • 10" Woofer & Ceramic Compression Driver
  • Integrated Mixer and 2-Band Equalizer
  • Built-In 7h Rechargeable Batteries
  • XLR, 1/4" & 3.5mm Inputs, 1/4" Output
• Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
  • For Hands-Free Presentations
  • Clips to Clothing

  • Cardioid Polar Pattern
  • 3.5mm Connector
• Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
  • Bodypack transmitter with 16 user-selectable channels
  • Can link up to 4 AnchorLink 3 wireless mics
  • Operating range of 300 feet
  • 6–8 hours of use from 2 AA batteries
  • Expansive 20Hz–20kHz frequency response

Specifications:

• Anchor Audio LIB3TU Liberty 3 Hub:
  • 2x Combo XLR-1/4" TRS Balanced Mic Input
  • 1x 1/4" TS Unbalanced Line Input
  • 1x 1/8" / 3.5 mm TRS Line Input
  • 1x 1/4" TRS Balanced Line Output
  • Frequency Response: 40 Hz to 20 kHz ±3 dB
  • Maximum SPL: 123 dB
  • Hi-Z Input: 10 Kilohms
  • Low-Z Input: 1 Kilohms
  • Line Output: 600 Ohms
  • Phantom Power: +34 V
  • Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
  • Approximate Battery Life: 7 Hours
  • Battery Charging Time: 5 Hours
  • Internal Battery Capacity: 10.2 Ah
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
  • Current Consumption: 2 A
  • AC Power I/O: 1x IEC
  • Transport Options: 1x Telescopic Handle (Top), 2x Wheels (Bottom)
  • Mounting: 1 x Pole Socket
  • Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
  • Weight: 44 lb / 20 kg
  • Speaker Configuration: 1x 2-Way Loudspeaker
  • Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
  • Amplifier Power Rating: 200 W
  • HF Driver: 1x Compression Driver
  • LF Driver: 1x 10" / 25.4 cm Woofer
  • Audio I/O:
  • USB I/O: 1x USB-A (Device Charging)
  • Bluetooth: Yes
  • Performance:
  • I/O Impedance:
  • Wireless Connectivity: Bluetooth, Wi-Fi
  • Max Wireless Range: 300' / 91.4 m (Line of Sight)
• Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
  • Polar Pattern: Cardioid
  • Connector: 1/8" / 3.5 mm
  • Package Weight: 0.13 lb
  • Box Dimensions (LxWxH): 4.2 x 2.95 x 2.5"
• Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
  • Configuration: Transmitter Only
  • Compatibility: Anchor Audio AnchorLink 3
  • Form Factor: Bodypack
  • System Operating Range: 300 ft. Line-of-sight
  • Manufacturer Part Number: WBL3
