Anchor Audio 781150 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / Headband Wireless Microphone
1x Anchor Audio Liberty 3 Link Portable PA System
Designed to deliver versatile and powerful amplification to crowds of up to 1500 people, the Anchor Audio LIB3 Liberty 3 Link is a portable PA system with AnchorLink 3 technology and an integrated Bluetooth receiver, well suited for sports venues, educational facilities, and various indoor and outdoor events. AnchorLink 3 allows you to connect up to four wireless microphones with a range of up to 300'. With 200W of rated output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 is able to reproduce sound-pressure levels up to 123 dB with a wide frequency range of 40 Hz to 20 kHz for full-range sound.
1x Anchor Audio HBM-LINK Headband Microphone
The Anchor Audio HBM-LINK is a headset microphone, perfect for speakers who prefer the hands-free convenience of a wearable mic. It comes with a 3.5mm connector, making it compatible with the AnchorLink Series WBL3 bodypack transmitter. Featuring a cardioid polar pattern, it is designed to reduce unwanted feedback when used close to a speaker, ensuring clear and focused audio.

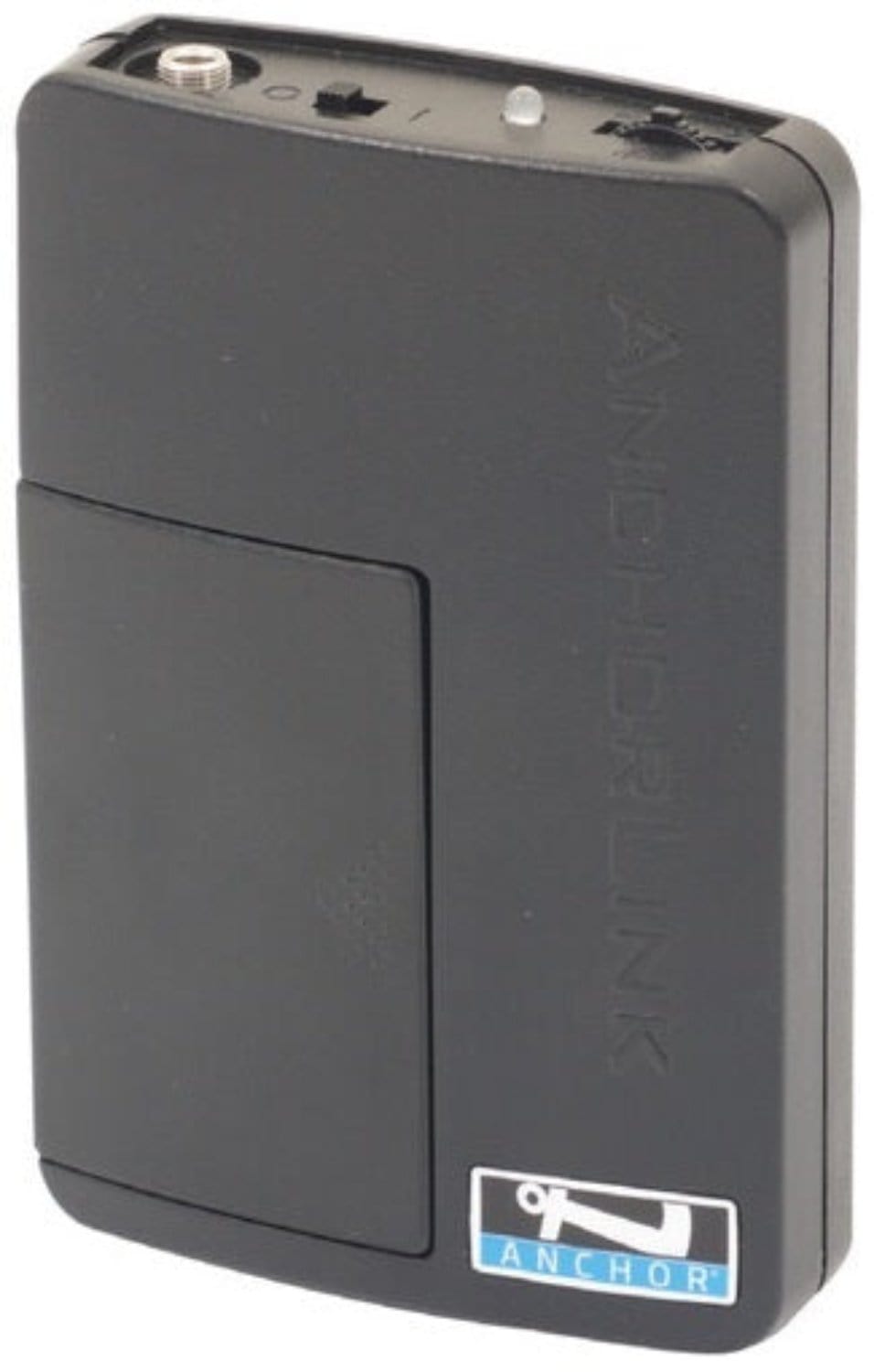

1x Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack
The perfect companion for your Anchor Audio lavalier or headworn mic, the WBL3 is an AnchorLink 3 wireless bodypack transmitter with 16 user-selectable channels. You can link up to four AnchorLink 3 wireless microphones, each with a 300-foot operating range. The WBL3 offers 6–8 hours of use from two AA batteries and has a wide 20Hz to 20kHz frequency response, making it a portable and easy-to-use solution for professional presentations.
Features:
- Anchor Audio Liberty 3 Link Portable PA System:
- AnchorLink 3 supports 4 wireless mics
- Reaches crowds of up to 1500 people
- Integrated pole mount for speaker stands
- Telescopic handle and wheels
- Built-in Bluetooth receiver
- 200W of rated output power
- 10" woofer & ceramic compression driver
- Integrated mixer and 2-band equalizer
- Built-in rechargeable batteries
- XLR, 1/4" and 3.5mm inputs, 1/4" output
- Anchor Audio HBM-LINK Headband Microphone:
- For hands-free presentations
- Cardioid polar pattern
- 3.5mm connector
- Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
- Bodypack transmitter with 16 user-selectable channels
- You can link up to 4 AnchorLink 3 wireless mics
- Generous operating range of 300 feet
- Achieve 6–8 hours of use from 2 AA batteries
- Expansive 20Hz–20kHz frequency response
- Requires a microphone with a 3.5mm connector
Specifications:
- Anchor Audio Liberty 3 Link Portable PA System:
- Speaker configuration: 1x 2-way loudspeaker
- Number of input channels: 3 (3 x mono, 0 x stereo)
- Amplifier power rating: 200 W
- HF driver: 1x compression driver
- LF driver: 1x 10" / 25.4 cm woofer
- Audio I/O:
- 2x combo XLR-1/4" TRS balanced mic input
- 1x 1/4" TS unbalanced line input
- 1x 1/8" / 3.5 mm TRS line input
- 1x 1/4" TRS balanced line output
- USB I/O: 1x USB-A (device charging)
- Bluetooth: Yes
- Power: 2x built-in rechargeable 12.8 V lithium-ion batteries
- Approximate battery life: 7 hours
- Battery charging time: 5 hours
- Internal battery capacity: 10.2 Ah
- AC input power: 100 to 240 VAC, 50 / 60 Hz
- Current consumption: 2 A
- AC power I/O: 1x IEC
- Transport options: 1x telescopic handle (top), 2x wheels (bottom)
- Mounting: 1x pole socket
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Anchor Audio HBM-LINK Headband Microphone:
- Polar pattern: Cardioid
- Frequency response: 100 Hz to 18 kHz
- Sensitivity: -84 dB ±3 dB
- Connector: 1/8" / 3.5 mm
- Cable length: 4.0' / 1.2 m
- Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
- Configuration: Transmitter only
- Compatibility: Anchor Audio AnchorLink 3
- Form factor: Bodypack
- System operating range: 300 ft. line-of-sight
- Manufacturer part number: WBL3
- AnchorLink 3 supports 4 wireless mics
- Reaches crowds of up to 1500 people
- Integrated pole mount for speaker stands
- Telescopic handle and wheels
- Built-in Bluetooth receiver
- 200W of rated output power
- 10" woofer & ceramic compression driver
- Integrated mixer and 2-band equalizer
- Built-in rechargeable batteries
- XLR, 1/4" and 3.5mm inputs, 1/4" output
- For hands-free presentations
- Cardioid polar pattern
- 3.5mm connector
- Bodypack transmitter with 16 user-selectable channels
- You can link up to 4 AnchorLink 3 wireless mics
- Generous operating range of 300 feet
- Achieve 6–8 hours of use from 2 AA batteries
- Expansive 20Hz–20kHz frequency response
- Requires a microphone with a 3.5mm connector
- Anchor Audio Liberty 3 Link Portable PA System:
- Speaker configuration: 1x 2-way loudspeaker
- Number of input channels: 3 (3 x mono, 0 x stereo)
- Amplifier power rating: 200 W
- HF driver: 1x compression driver
- LF driver: 1x 10" / 25.4 cm woofer
- Audio I/O:
- 2x combo XLR-1/4" TRS balanced mic input
- 1x 1/4" TS unbalanced line input
- 1x 1/8" / 3.5 mm TRS line input
- 1x 1/4" TRS balanced line output
- USB I/O: 1x USB-A (device charging)
- Bluetooth: Yes
- Power: 2x built-in rechargeable 12.8 V lithium-ion batteries
- Approximate battery life: 7 hours
- Battery charging time: 5 hours
- Internal battery capacity: 10.2 Ah
- AC input power: 100 to 240 VAC, 50 / 60 Hz
- Current consumption: 2 A
- AC power I/O: 1x IEC
- Transport options: 1x telescopic handle (top), 2x wheels (bottom)
- Mounting: 1x pole socket
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Anchor Audio HBM-LINK Headband Microphone:
- Polar pattern: Cardioid
- Frequency response: 100 Hz to 18 kHz
- Sensitivity: -84 dB ±3 dB
- Connector: 1/8" / 3.5 mm
- Cable length: 4.0' / 1.2 m
- Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
- Configuration: Transmitter only
- Compatibility: Anchor Audio AnchorLink 3
- Form factor: Bodypack
- System operating range: 300 ft. line-of-sight
- Manufacturer part number: WBL3
