Anchor Audio 781100 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / Handheld Wireless Microphone

Anchor Audio 781100 Liberty 3 Hub System - AnchorLink 3 / AnchorFlex / Handheld Wireless Microphone

1x Anchor Audio Liberty 3 Link Portable PA System

Designed to deliver versatile and powerful amplification to crowds of up to 1500 people, the Anchor Audio LIB3 Liberty 3 Link is a portable PA system with AnchorLink 3 technology and an integrated Bluetooth receiver, well suited for sports venues, educational facilities, and various indoor and outdoor events. AnchorLink 3 allows you to connect up to four wireless microphones with a range of up to 300'. With 200W of rated output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 is able to reproduce sound-pressure levels up to 123 dB with a wide frequency range of 40 Hz to 20 kHz for full-range sound.

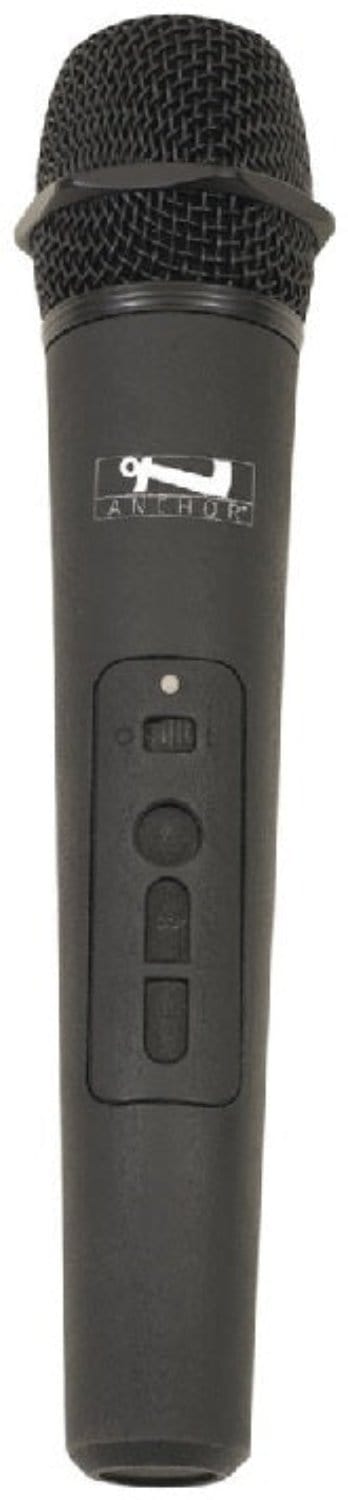

1x Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone

The WHL3 is an AnchorLink 3 wireless handheld transmitter featuring 16 user-selectable channels. It allows you to link up to four microphones, each offering a range of up to 300 feet. Powered by two AA batteries, the WHL3 provides 6–8 hours of continuous use. With a frequency response of 20Hz to 20kHz, it ensures high-quality audio and includes convenient volume and mute controls for easy and efficient operation.

Features:

• Anchor Audio Liberty 3 Link Portable PA System:
  • AnchorLink 3 supports 4 wireless mics
  • Reaches crowds of up to 1500 people
  • Integrated pole mount for speaker stands
  • Telescopic handle and wheels
  • Built-in Bluetooth receiver
  • 200W of rated output power
  • 10" woofer & ceramic compression driver
  • Integrated mixer and 2-band equalizer
  • Built-in rechargeable batteries
  • XLR, 1/4" and 3.5mm inputs, 1/4" output
• Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
  • Configuration: Mic with transmitter
  • Compatibility: Anchor Audio AnchorLink 3
  • Analog/Digital: Digital
  • Frequency range: 1.9 GHz
  • Form factor: Handheld
  • System operating range: 300 ft. line-of-sight
  • Microphone color: Black

Specifications:

• Anchor Audio Liberty 3 Link Portable PA System:
  • Speaker configuration: 1x 2-way loudspeaker
  • Number of input channels: 3 (3 x mono, 0 x stereo)
  • Amplifier power rating: 200 W
  • HF driver: 1x compression driver
  • LF driver: 1x 10" / 25.4 cm woofer
  • Audio I/O:
    • 2x combo XLR-1/4" TRS balanced mic input
    • 1x 1/4" TS unbalanced line input
    • 1x 1/8" / 3.5 mm TRS line input
    • 1x 1/4" TRS balanced line output
  • USB I/O: 1x USB-A (device charging)
  • Bluetooth: Yes
  • Power: 2x built-in rechargeable 12.8 V lithium-ion batteries
  • Approximate battery life: 7 hours
  • Battery charging time: 5 hours
  • Internal battery capacity: 10.2 Ah
  • AC input power: 100 to 240 VAC, 50 / 60 Hz
  • Current consumption: 2 A
  • AC power I/O: 1x IEC
  • Transport options: 1x telescopic handle (top), 2x wheels (bottom)
  • Mounting: 1 x pole socket
  • Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
  • Weight: 44 lb / 20 kg
• Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
  • Configuration: Transmitter only
  • Compatibility: Anchor Audio AnchorLink 3
  • Form factor: Bodypack
  • System operating range: 300 ft. line-of-sight
  • Manufacturer part number: WBL3
