Anchor Audio 771400 Liberty 3 Link System - AnchorLink 3 / 4x Handheld Wireless Microphones

Anchor Audio 771400 Liberty 3 Link System - AnchorLink 3 / 4-Pack Handheld Wireless Microphones

1x Anchor Audio LIB3U Liberty 3 Link Battery Powered PA System

Designed to deliver versatile and powerful amplification to crowds of up to 1500 people, the Anchor Audio LIB3U Liberty 3 Link is a portable PA system with AnchorLink 3 technology and an integrated Bluetooth receiver, well suited for sports venues, educational facilities, and various indoor and outdoor events. AnchorLink 3 allows you to connect up to four wireless microphones with a range of up to 300'. With 200W of rated output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 is able to reproduce sound-pressure levels up to 123 dB with a wide frequency range of 40 Hz to 20 kHz for full-range sound.

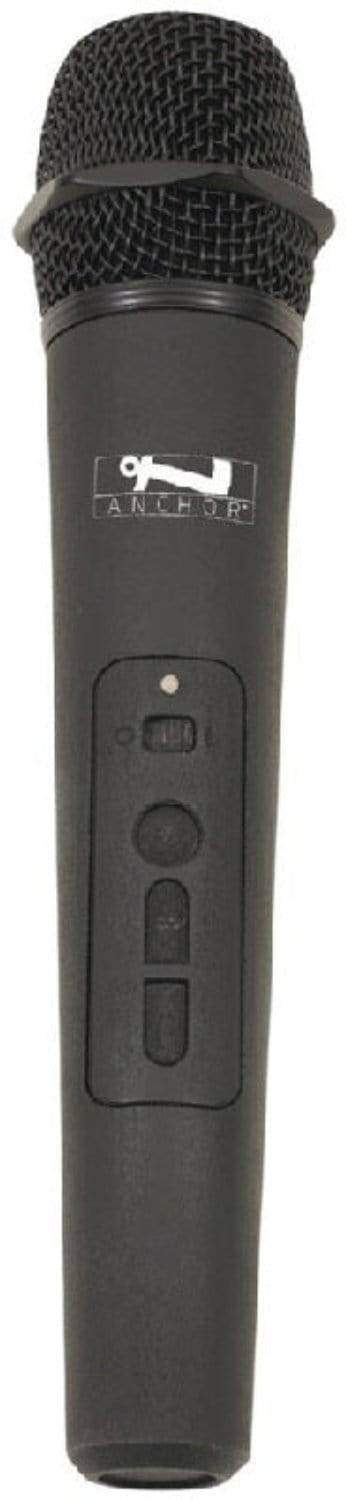

4x Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone

The WHL3 is an AnchorLink 3 wireless handheld transmitter featuring 16 user-selectable channels. It allows you to link up to four microphones, each offering a range of up to 300 feet. Powered by two AA batteries, the WHL3 provides 6–8 hours of continuous use. With a frequency response of 20Hz to 20kHz, it ensures high-quality audio, and includes convenient volume and mute controls for easy and efficient operation.

Features:

• Anchor Audio LIB3U Liberty 3 Link Battery Powered PA System:
  • Weather-resistant
  • AnchorDSP signal processing
  • 7 hours of playtime
  • Connect up to 1000 units
  • 10" Neo woofer
  • Ceramic compression driver
  • 2x10-amp lithium-ion batteries
  • Fast recharge
  • Flush mount grille
  • Dual trays for phone storage and built-in handle
  • USB charging port
  • Inside cover storage for four mics
  • PowerPack adds 33% more playtime
  • Heavy-duty latches and removable black cover
  • Heavy-duty telescoping handle
  • Built-in side handles
  • Rugged wheels
  • Sturdy rubber feet for noise/vibration dampering
• Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
  • Channels: 16 user-selectable channels
  • Linking: Connect up to 4 AnchorLink 3 wireless mics
  • Range: 300 feet operating range
  • Battery Life: 6–8 hours with 2 AA batteries
  • Frequency Response: 20Hz–20kHz
  • Controls: Volume and mute control

Specifications:

• Anchor Audio LIB3U Liberty 3 Link Battery Powered PA System:
  • Portable PA System:
    • Speaker Configuration: 1x 2-Way Loudspeaker
    • Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
    • Amplifier Power Rating: 200 W
  • Speakers:
    • Enclosure Type:
      • Speaker Type: Bass-Reflex
    • HF Driver: 1x Compression Driver
    • LF Driver: 1x 10" / 25.4 cm Woofer
    • Enclosure Type:
      • HF Driver: Ceramic
  • Performance:
    • Frequency Response: 40 Hz to 20 kHz ±3 dB
    • Maximum SPL: 123 dB
    • I/O Impedance:
      • Hi-Z Input: 10 Kilohms
      • Low-Z Input: 1 Kilohms
      • Line Output: 600 Ohms
  • Connectivity:
    • Audio I/O:
      • 2x Combo XLR-1/4" TRS Balanced Mic Input
      • 1x 1/4" TS Unbalanced Line Input
      • 1x 1/8" / 3.5 mm TRS Line Input
      • 1x 1/4" TRS Balanced Line Output
    • Phantom Power: +34 V
    • USB I/O: 1x USB-A (Device Charging)
    • Mobile App Compatible: No
    • Wireless Connectivity: Bluetooth, Wi-Fi
    • Max Wireless Range: 300' / 91.4 m (Line of Sight)
    • Bluetooth: Yes
  • Power:
    • Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
    • Approximate Battery Life: 7 Hours
    • Battery Charging Time: 5 Hours
    • Internal Battery Capacity: 10.2 Ah
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
    • Current Consumption: 2 A
    • AC Power I/O: 1x IEC
  • Physical:
    • Transport Options:
      • 1x Telescopic Handle (Top)
      • 2x Wheels (Bottom)
    • Mounting: 1x Pole Socket
    • Environmental Resistance: No
    • Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
    • Weight: 44 lb / 20 kg
  • Packaging Info:
    • Package Weight: 54.5 lb
    • Box Dimensions (LxWxH): 29 x 18 x 17"
• Anchor Audio WHL3 AnchorLink 3 Wireless Handheld Microphone:
  • Configuration: Mic with Transmitter
  • Compatibility: Anchor Audio AnchorLink 3
  • Analog/Digital: Digital
  • Frequency Range: 1.9 GHz
  • Form Factor: Handheld
  • System Operating Range: 300 ft. Line-of-sight
  • Microphone Color: Black
