Anchor Audio 771170 Liberty 3 Link System - AnchorLink 3 / Collar Wireless Microphone
1x Anchor Audio LIB3U Liberty 3 Link Portable PA System
Designed to deliver versatile and powerful amplification to crowds of up to 1500 people, the Anchor Audio LIB3 Liberty 3 Link is a portable PA system with AnchorLink 3 technology and an integrated Bluetooth receiver, well suited for sports venues, educational facilities, and various indoor and outdoor events. AnchorLink 3 allows you to connect up to four wireless microphones with a range of up to 300'. With 200W of rated output power driving a 10" woofer and a ceramic compression driver, the Liberty 3 is able to reproduce sound-pressure levels up to 123 dB with a wide frequency range of 40 Hz to 20 kHz for full-range sound.
1x Anchor Audio CM-LINK Collar Microphone
The Anchor Audio CM-LINK is a collar microphone designed for hands-free presentations, ideal for speakers who prefer convenience and mobility. It features a cardioid polar pattern to reduce unwanted feedback, making it an excellent choice for use near speakers. The microphone is equipped with a 3.5mm connector and is compatible with the AnchorLink Series WBL3 bodypack transmitter.

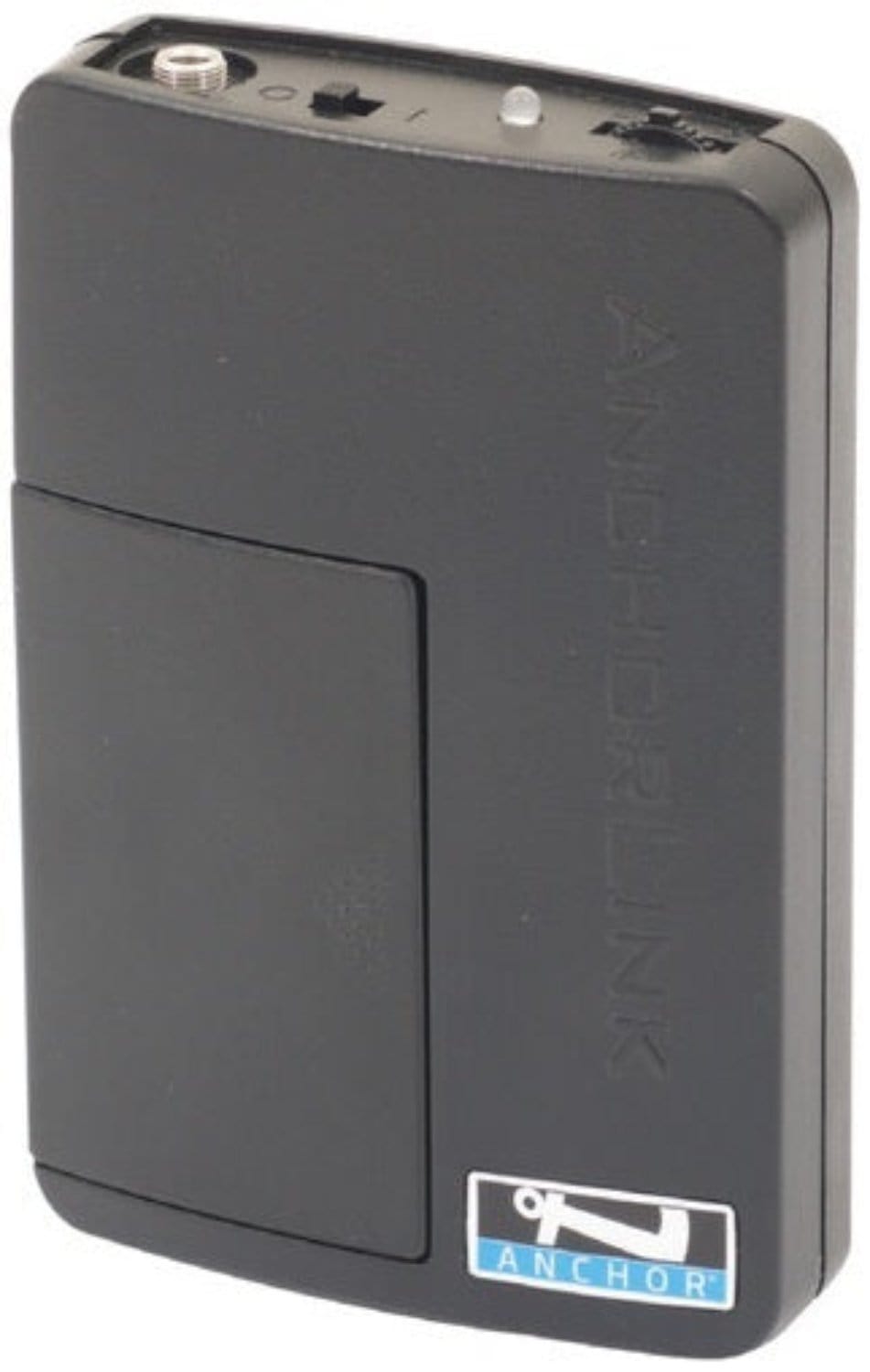

1x Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack
The perfect companion for your Anchor Audio lavalier or headworn mic, the WBL3 is an AnchorLink 3 wireless bodypack transmitter with 16 user-selectable channels. You can link up to four AnchorLink 3 wireless microphones, each with a 300-foot operating range. The WBL3 offers 6–8 hours of use from two AA batteries, making it a portable and easy-to-use unit. It also features an expansive 20Hz to 20kHz frequency response for high-quality sound.
Features:
-
Anchor Audio LIB3U Liberty 3 Link Portable PA System:
- AnchorLink 3 Supports 4 Wireless Mics
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount for Speaker Stands
- Telescopic Handle and Wheels
- Built-In Bluetooth Receiver
- 200W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer and 2-Band Equalizer
- Built-In Rechargeable Batteries
- Audio I/O:
- XLR Input
- 1/4" Input
- 3.5mm Input
- 1/4" Output
-
Anchor Audio CM-LINK Collar Microphone:
- For hands-free presentations
- Cardioid polar pattern for minimizing feedback
- 3.5mm connector for easy connection
-
Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
- Bodypack transmitter with 16 user-selectable channels
- Link up to 4 AnchorLink 3 wireless mics
- Generous operating range of 300 feet
- Achieve 6–8 hours of use from 2 AA batteries
- Expansive 20Hz–20kHz frequency response
- Requires a microphone with a 3.5mm connector
Specifications:
- Anchor Audio LIB3U Liberty 3 Link Portable PA System:
- Speaker Configuration: 1x 2-Way Loudspeaker
- Number of Input Channels: 3 (3 x Mono, 0 x Stereo)
- Amplifier Power Rating: 200 W
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Audio I/O:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Line Input
- 1x 1/4" TRS Balanced Line Output
- Bluetooth: Yes
- Battery Type: 2x Built-In Rechargeable 12.8 V Lithium-Ion
- Approximate Battery Life: 7 Hours
- Battery Charging Time: 5 Hours
- Internal Battery Capacity: 10.2 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Current Consumption: 2 A
- AC Power I/O: 1x IEC
- Transport Options:
- 1x Telescopic Handle (Top)
- 2x Wheels (Bottom)
- Mounting: 1 x Pole Socket
- Dimensions: 22 x 14.5 x 14" / 55.9 x 36.8 x 35.6 cm
- Weight: 44 lb / 20 kg
- Packaging Info:
- Package Weight: 54.5 lb
- Box Dimensions (LxWxH): 29 x 18 x 17"
- Anchor Audio CM-LINK Collar Microphone:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
- Anchor Audio WBL3 AnchorLink 3 Wireless Beltpack:
- Configuration: Transmitter Only
- Compatibility: Anchor Audio AnchorLink 3
- Form Factor: Bodypack
- System Operating Range: 300 ft. Line-of-sight
- Manufacturer Part Number: WBL3
