Anchor Audio 760430 Liberty 2 Pair LIB2-AIR X4 - Anchor-Air / 2x Handheld / 2x Lapel Wireless Microphones
1x Anchor Audio LIB2-XU4 Liberty 2 Portable PA System with Bluetooth, AIR Transmitter & Two Dual Mic Receivers
The Anchor Audio LIB2-XU4 Liberty 2 Portable PA System combines powerful sound with user-friendly features, making it perfect for both indoor and outdoor events. Equipped with Bluetooth, an AIR wireless transmitter, and two dual wireless microphone receivers, this system offers versatile connectivity for any setup. With 125W of rated output power driving a 10" woofer and a ceramic compression driver, the Liberty 2 delivers a robust 117 dB SPL, making it ideal for crowds of up to 1500 people.
Designed for sports venues, educational facilities, and a wide range of events, the Liberty 2 provides reliable and powerful amplification, ensuring clear and impactful sound coverage.
1x Anchor Audio LIB2-AIR Liberty 2 AIR Wireless Companion Speaker
Made in the USA, the Anchor Audio LIB2-AIR is a Liberty 2 wireless companion speaker designed to expand the coverage of your Liberty 2 PA system. Capable of handling 125W of power and producing 117 dB SPL through a 10" woofer and a ceramic compression driver, it delivers robust amplification for crowds of up to 1500 people. Ideal for sports venues, educational facilities, and various indoor and outdoor events, the LIB2-AIR ensures clear and powerful sound distribution.
The speaker features two operational modes: AIR for active operation with a wireless source, and Wired for passive operation with a wired source, offering versatile setup options to suit any event.
2x Anchor Audio WH-LINK Wireless Handheld Microphones
The WH-LINK is a wireless handheld microphone with a sleek and lightweight design. It operates on the 1.9 GHz frequency. The WH-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries.
The WH-LINK handheld microphone is used with the AnchorLink series.
2x Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector
The LM-LINK is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a 3.5 mm connector plug.
For a handsfree, wireless experience, use it with a beltpack transmitter such as the WB-LINK.
2x Anchor Audio WB-LINK Wireless Beltpack Transmitter
The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.
For a handsfree, wireless experience, the WB-LINK can be used with microphone elements such as the HBM-LINK, CM-LINK, EM-LINK, and LM-LINK.

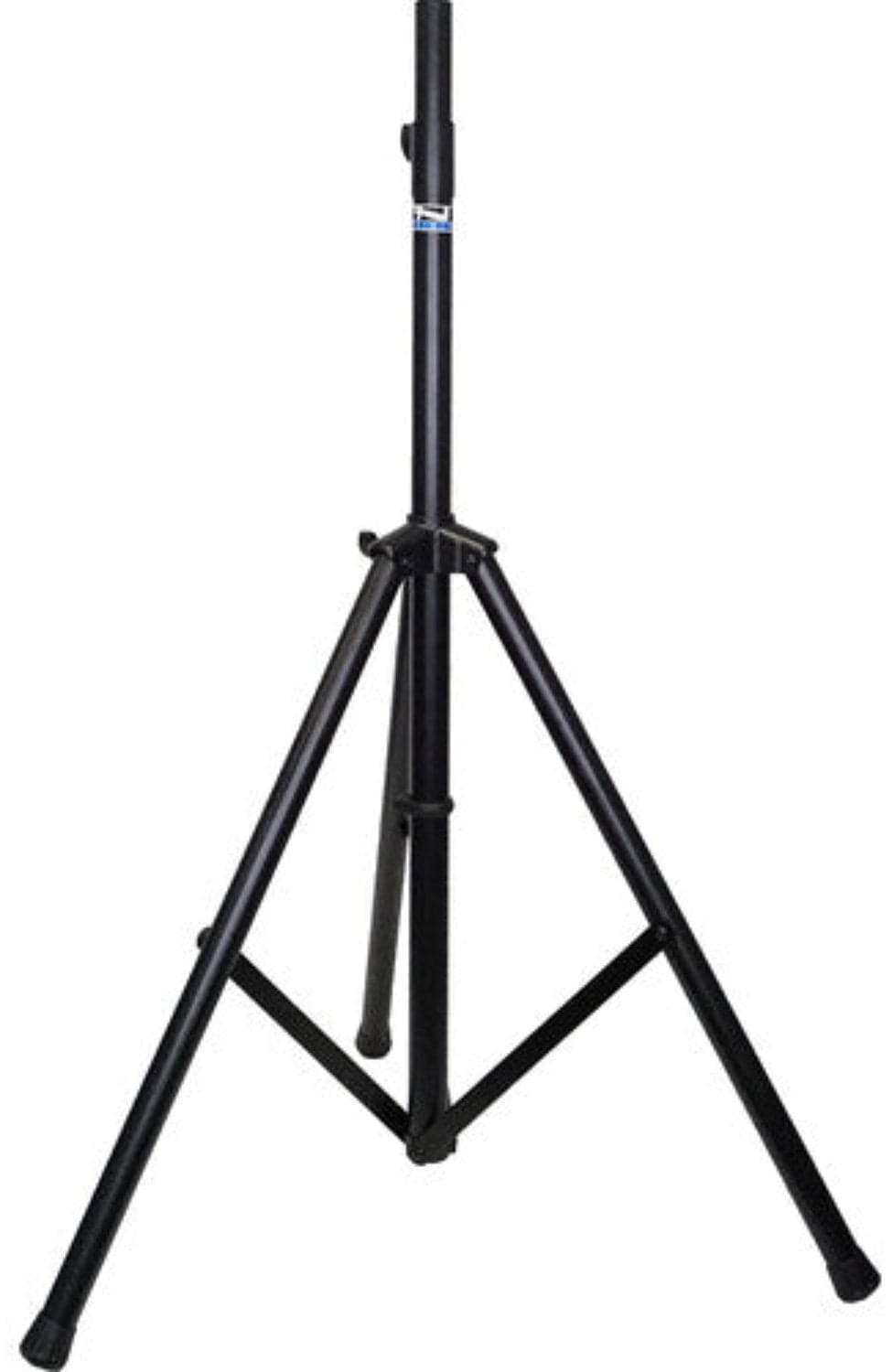

2x Anchor Audio SS-550 Heavy-Duty Speaker Stand
The Anchor SS-550 is a heavy-duty brushed aluminum speaker stand with a 1.5" diameter pole for use with Anchor Audio portable sound systems and portable PA systems. It comes in black, and it has an adjustable height and leg width. This speaker stand is compatible with Anchor's Liberty 2, Go Getter 2, and MegaVox 2 portable PA systems.
Features:
- LIB2-XU4:
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount & Carry Handle
- Built-In Bluetooth Receiver
- AIR Wireless Transmitter
- Two Dual Wireless Mic Receivers
- 125W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer & 2-Band Equalizer
- Built-In Rechargeable Batteries
- XLR, 1/4" & 3.5mm Inputs, 1/4" Output
- LIB2-AIR:
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount & Carry Handle
- Passive/Wired & Active/Wireless Modes
- Built-In AIR Wireless Receiver
- Volume & 2-Band EQ for Wireless Receiver
- 10" Woofer & Ceramic Compression Driver
- 4-Pole Neutrik speakON Input
- Built-In Rechargeable Batteries
- Battery Status Meter
- Made in the USA
- Anchor Audio WH-LINK Wireless Handheld Microphone:
- Classic Wireless Handheld Microphone
- For AnchorLink-Equipped PA Systems
- Volume and Mute Controls
- One-Time Pair Function
- Up to 8 Hours of Operation
- 1.9 GHz Wireless Frequency Range
- Automatic Frequency Hopping
- Lightweight Design
- Powered via 2 x AA Batteries
- Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
- For Hands-Free Presentations
- Clips to Clothing
- Use with WB-LINK Beltpack Transmitter
- Cardioid Polar Pattern
- 3.5mm Connector
- Anchor Audio WB-LINK Wireless Beltpack Transmitter:
- For AnchorLink-Equipped PA Systems
- 3.5mm Mic Input Connector
- Accepts Lavalier and Headset Mics
- Volume and Mute Controls
- One-Time Pair Function
- Up to 8 Hours of Operation
- 1.9 GHz Wireless Frequency Range
- Automatic Frequency Hopping
- Powered via 2 x AA Batteries
- Includes Belt Clip
- Anchor Audio SS-550 Heavy-Duty Speaker Stand:
- Heavy-duty construction for enhanced durability
- Adjustable height for versatile speaker placement
- Supports a wide range of speaker models
- Lightweight design for easy transport
- Stable tripod base for secure setup
- Compatible with most Anchor Audio speakers
- Easy to set up and collapse for quick storage
Specifications:
- LIB2-XU4:
- Portable PA System:
- Amplifier Power Rating:
- 125 W (AC Power)
- 100 W (Battery Power)
- Speakers:
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Magnet: HF Driver: Ceramic
- Performance:
- Frequency Response: 60 Hz to 15 kHz ±3 dB
- Maximum SPL: 117 dB
- Input Sensitivity
- Lo-Z Mic Input: -52 dBV / 2.5 mVrms
- Hi-Z Mic Input: -43 dBV / 7.5 mVrms
- Aux Input: -14 dBV / 200 mVrms
- I/O Impedance:
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Connectivity:
- Audio I/O:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Line Input
- 1x 1/4" TRS Balanced Line Output
- 1x speakON NL4 Speaker Output
- Phantom Power: +12 V
- Wireless:
- Wireless Transmission: 1.9 GHz
- Max Wireless Range: RF Wireless: 300' / 91.4 m (Line of Sight)
- RF Frequency Band: 902 to 928 MHz
- Bluetooth Power Class: 1
- Power:
- Battery Type: 2x Built-In Rechargeable 12 V Lithium-Ion
- Approximate Battery Life: 8 Hours
- Internal Battery Capacity: 7 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Power Consumption: 250 W (Max)
- Physical:
- Environmental Resistance: No
- Dimensions: 23 x 14 x 11.5" / 58.4 x 35.6 x 29.2 cm
- Weight: 28 lb / 12.7 kg
- LIB2-AIR:
- Portable PA System:
- Speaker Configuration:
- 1x 2-Way Loudspeaker
- Amplifier Power Rating:
- 125 W (AC Power)
- 100 W (Battery Power)
- Speakers:
- Enclosure Type: Bass-Reflex
- HF Driver: 1x Ceramic Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Signal Processing:
- EQ
- 1x HF Shelf
- 1x LF Shelf
- Effects: No
- Performance:
- Frequency Response: 60 Hz to 15 kHz ±3 dB
- Maximum SPL: 117 dB
- Connectivity:
- Audio I/O: 1x speakON NL4 Speaker Input
- USB I/O: No
- Wireless Connectivity: Proprietary Wireless, Speaker Link
- Wireless:
- Max Wireless Range: Speaker Link: 300' / 91.4 m (Line of Sight)
- RF Frequency Band: 902 to 928 MHz
- Form Factor: Receiver: Built-In
- Antenna: 2x Rod (Rear-Mount)
- Power:
- Battery Type: 2x Built-In Rechargeable 12 V Lithium-Ion
- Approximate Battery Life: 6 to 8 Hours
- Internal Battery Capacity: 7 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Power Consumption: 250 W (Max)
- AC Power I/O: 1x IEC
- Physical:
- Transport Options: 1x Handle (Top)
- Mounting: 1 x Pole Socket (Bottom)
- Environmental Resistance: No
- Dimensions: 23 x 14 x 11.5" / 58.42 x 35.56 x 29.21 cm
- Weight: 27 lb / 12.25 kg
- Anchor Audio WH-LINK Wireless Handheld Microphone:
- Frequency Band: 1.9 GHz
- Wireless Range: 300' / 91 m, line of sight
- Controls:
- Volume
- Mute
- Power:
- 2 x AA batteries
- Operates up to 8 hours
- Packaging Info:
- Package Weight: 0.76 lb
- Box Dimensions (LxWxH): 10.45 x 3.15 x 2.3"
- Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
- Package Weight: 0.13 lb
- Box Dimensions (LxWxH): 4.2 x 2.95 x 2.5"
- Anchor Audio WB-LINK Wireless Beltpack Transmitter:
- Frequency Band: 1.9 GHz
- Wireless Range: 300' / 91 m, line of sight
- Input Connector: 1/8" / 3.5 mm
- Controls:
- Volume
- Mute
- Power:
- 2 x AA batteries
- Operates up to 8 hours
- Packaging Info:
- Package Weight: 0.35 lb
- Box Dimensions (LxWxH): 5.85 x 4.2 x 1.2"
- Anchor Audio SS-550 Heavy-Duty Speaker Stand:
- Type: Speaker Stand
- Load Capacity: 75 lb / 34 kg
- Stand Height: 38 to 70" / 96.5 to 177.8 cm
- Package Weight: 7.5 lb
- Box Dimensions (LxWxH): 43.2 x 6 x 6"
