Anchor Audio 760160 Liberty 2 Pair LIB2-AIR X1 - Anchor-Air / Lapel Wireless Microphone
1x Anchor Audio LIB2-XU2 Liberty 2 Portable PA System
The Anchor Audio LIB2-XU2 is a Liberty 2 portable PA system with Bluetooth, an AIR wireless transmitter, and a dual wireless microphone receiver. With 125W of rated output power driving a 10" woofer and a ceramic compression driver to produce 117 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 1500 people in sports venues, educational facilities, and various indoor and outdoor events.
1x Anchor Audio LIB2-AIR Liberty 2 AIR Wireless Companion Speaker
The Anchor Audio LIB2-AIR is a Liberty 2 wireless companion speaker designed to extend the coverage area of your Liberty 2 PA system. Able to handle 125W of power and produce 117 dB SPL through a 10" woofer and a ceramic compression driver, it delivers powerful amplification for crowds of up to 1500 people in sports venues, educational facilities, and various indoor and outdoor events. It features two modes, AIR for active operation with a wireless source, and Wired for passive operation with a wired source.
1x Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector
The LM-LINK is a lapel microphone element with a small profile, so it can be easily hidden when wearing dark clothing. It securely clips to clothing just below the mouth, however, keep in mind that when you turn your head, the mic will not turn with you. The lapel microphone has a 3.5 mm connector plug.
For a handsfree, wireless experience, use it with a beltpack transmitter such as the WB-LINK.

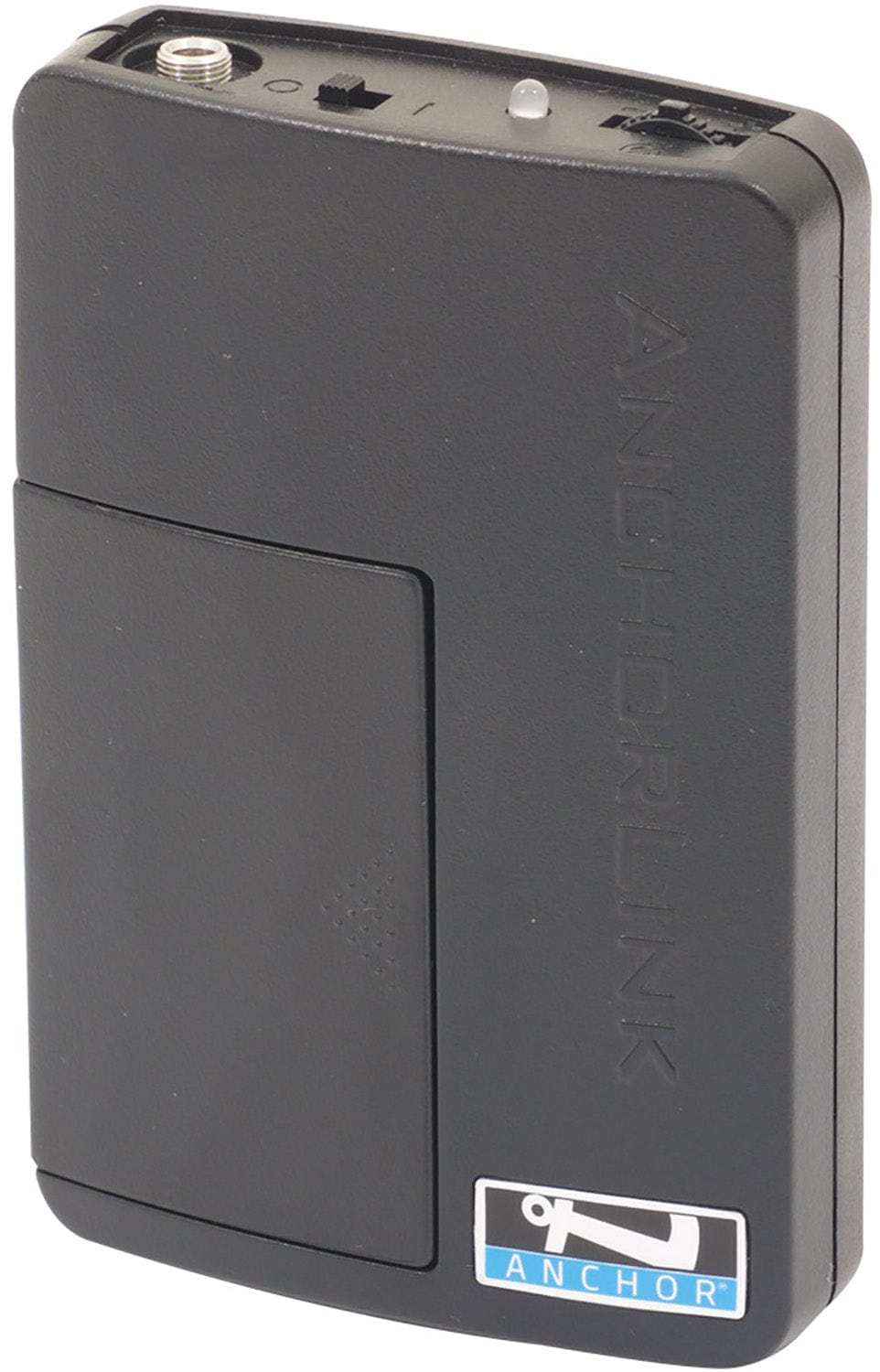

1x Anchor Audio WB-LINK Wireless Beltpack Transmitter
The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.
For a handsfree, wireless experience, the WB-LINK can be used with microphone elements such as the HBM-LINK, CM-LINK, EM-LINK, and LM-LINK.
2x Anchor Audio SS-550 Heavy-Duty Speaker Stand
The Anchor SS-550 is a heavy-duty brushed aluminum speaker stand with a 1.5" diameter pole for use with Anchor Audio portable sound systems and portable PA systems. It comes in black, and it has an adjustable height and leg width. This speaker stand is compatible with Anchor's Liberty 2, Go Getter 2, and MegaVox 2 portable PA systems.
Features:
- Anchor Audio LIB2-XU2 Liberty 2 Portable PA System:
- Reaches crowds up to 1,500+
- 117 dB of clear sound
- 125W AC / 100W DC mode
- Connect up to two wireless mics
- 1.9 GHz wireless frequency
- Anchor AIR transmitter
- Built-in Class 1 Bluetooth
- Built-in rechargeable Lithium Ion batteries operates 6 - 8 hours on a single charge
- One 10" woofer
- One ceramic compression driver
- Anchor Audio LIB2-AIR Liberty 2 AIR Wireless Companion Speaker:
- Can be paired with a LIB2 or LIB2-X series to reach 3,000+
- 117 dB of clear sound
- 125W AC mode / 100W DC mode
- Built-in AIR wireless receiver
- Wirelessly connects to Liberty transmitter (LIB2-X series)
- 300'+ AIR wireless range
- Alternate wired and wireless companion mode
- Built-in rechargeable Lithium Ion battery operates 6-8 hours on a single charge
- One 10" woofer
- One ceramic compression driver
- Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
- For Hands-Free Presentations
- Clips to Clothing
- Use with WB-LINK Beltpack Transmitter
- Cardioid Polar Pattern
- 3.5mm Connector
- Anchor Audio WB-LINK Wireless Beltpack Transmitter:
- For AnchorLink-Equipped PA Systems
- 3.5mm Mic Input Connector
- Accepts Lavalier and Headset Mics
- Volume and Mute Controls
- One-Time Pair Function
- Up to 8 Hours of Operation
- 1.9 GHz Wireless Frequency Range
- Automatic Frequency Hopping
- Powered via 2 x AA Batteries
- Includes Belt Clip
- Anchor Audio SS-550 Heavy-Duty Speaker Stand:
- Heavy-duty construction for enhanced durability
- Adjustable height for versatile speaker placement
- Supports a wide range of speaker models
- Lightweight design for easy transport
- Stable tripod base for secure setup
- Compatible with most Anchor Audio speakers
- Easy to set up and collapse for quick storage
Specifications:
- Anchor Audio LIB2-XU2 Liberty 2 Portable PA System:
- Rated Power Output: 200W AC/DC RMS
- Max SPL @ Rated Power: 117 dB @ 1m
- Frequency Response: 60 Hz to 15 kHz ± 3 dB
- Speaker: 10" woofer, ceramic compression driver
- Microphone Wireless Frequency: 1.9 GHz DECT
- Microphone Wireless Range: 300'+ line of sight
- Mic Inputs:
- Lo-Z, balanced, XLR & 1/4"
- 34V DC condenser mic (phantom) power
- Hi-Z (10 kΩ), unbalanced, 1/4" phone
- Line Inputs:
- Balanced mono, 1/4"
- Unbalanced stereo, 3.5mm
- Line Output (post fader): Isolated, 600 Ω, 1/4"
- Speaker Output: 4-pole Neutrik Speakon jack
- Sensitivity for Rated Output:
- Lo-Z Microphone: -52 dBV (2.5 mVrms)
- Hi-Z Microphone: -43 dBV (7.5 mVrms)
- Auxiliary (line): -14 dBV (200 mVrms)
- Anchor AIR Specifications:
- AIR Frequency Range: 902-928 MHz
- AIR Wireless Range: 300'+ line of sight
- AC Power Requirements: 100-240 VAC, 50/60 Hz, 250 W max
- Battery: Two 12V LFP rechargeable batteries, 7.5 AH
- Dimensions (H x W x D): 23" x 14" x 11.5" (58.4 x 35.6 x 29.26cm)
- Weight: 28 lbs (12.7 kg)
- Anchor Audio LIB2-AIR Liberty 2 AIR Wireless Companion Speaker:
- Portable PA System:
- Speaker Configuration: 1x 2-Way Loudspeaker
- Amplifier Power Rating: 125 W (AC Power), 100 W (Battery Power)
- Speakers:
- Enclosure Type: Bass-Reflex
- HF Driver: 1x Ceramic Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Signal Processing:
- EQ: 1x HF Shelf, 1x LF Shelf
- Effects: No
- Performance:
- Frequency Response: 60 Hz to 15 kHz ±3 dB
- Maximum SPL: 117 dB
- Connectivity:
- Audio I/O: 1x speakON NL4 Speaker Input
- USB I/O: No
- Wireless Connectivity: Proprietary Wireless, Speaker Link
- Wireless:
- Max Wireless Range: Speaker Link 300' / 91.4 m (Line of Sight)
- RF Frequency Band: 902 to 928 MHz
- Form Factor: Receiver Built-In
- Antenna: 2x Rod (Rear-Mount)
- Power:
- Battery Type: 2x Built-In Rechargeable 12 V Lithium-Ion
- Approximate Battery Life: 6 to 8 Hours
- Internal Battery Capacity: 7 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Power Consumption: 250 W (Max)
- AC Power I/O: 1x IEC
- Physical:
- Transport Options: 1x Handle (Top)
- Mounting: 1x Pole Socket (Bottom)
- Environmental Resistance: No
- Dimensions: 23 x 14 x 11.5" / 58.42 x 35.56 x 29.21 cm
- Weight: 27 lb / 12.25 kg
- Packaging Info:
- Package Weight: 33.5 lb
- Box Dimensions (LxWxH): 24 x 16 x 14"
- Anchor Audio LM-LINK Lapel Microphone with 3.5mm Connector:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
- Package Weight: 0.13 lb
- Box Dimensions (LxWxH): 4.2 x 2.95 x 2.5
- Anchor Audio WB-LINK Wireless Beltpack Transmitter:
- Frequency Band: 1.9 GHz
- Wireless Range: 300' / 91 m, line of sight
- Input Connector: 1/8" / 3.5 mm
- Controls:
- Volume
- Mute
- Power:
- 2 x AA batteries
- Operates up to 8 hours
- Packaging Info:
- Package Weight: 0.35 lb
- Box Dimensions (LxWxH): 5.85 x 4.2 x 1.2"
- Anchor Audio SS-550 Heavy-Duty Speaker Stand:
- Type: Speaker Stand
- Load Capacity: 75 lb / 34 kg
- Stand Height: 38 to 70" / 96.5 to 177.8 cm
- Package Weight: 7.5 lb
- Box Dimensions (LxWxH): 43.2 x 6 x 6"
