Anchor Audio 715429 Liberty 2 System X4 - Anchor-Air / 2x Handheld / 2x Lapel / 2x Headband Mics
1x Anchor Audio LIB2-XU4 Liberty 2 PA with Bluetooth
The Anchor Audio LIB2-XU4 is a Liberty 2 portable PA system with Bluetooth, an AIR wireless transmitter, and two dual wireless microphone receivers. With 125W of rated output power driving a 10" woofer and a ceramic compression driver to produce 117 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 1500 people in sports venues, educational facilities, and various indoor and outdoor events.
2x Anchor Audio WH-LINK Wireless Handheld Microphone
The WH-LINK is a wireless handheld microphone with a sleek and lightweight design. It operates on the 1.9 GHz frequency. The WH-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries.
2x Anchor Audio Lapel Microphone Element for WB-Link
The Anchor Audio LM-LINK is a lavalier microphone designed for speakers who prefer the hands-free convenience of a wearable mic. It includes a 3.5mm connector for compatibility with the AnchorLink Series WB-LINK bodypack transmitter. Featuring a cardioid polar pattern, the LM-LINK is engineered to minimize unwanted feedback when positioned near a speaker. Additionally, it comes with a clip and a foam windscreen for added convenience and versatility.
2x Anchor Audio HBM-LINK Headband Microphone
The Anchor Audio HBM-LINK is a headset microphone, perfect for speakers who prefer the hands-free convenience of a wearable mic. It comes with a 3.5mm connector, making it compatible with the AnchorLink Series WB-LINK bodypack transmitter. Featuring a cardioid polar pattern, it is designed to reduce unwanted feedback when used close to a speaker, ensuring clear and focused audio.

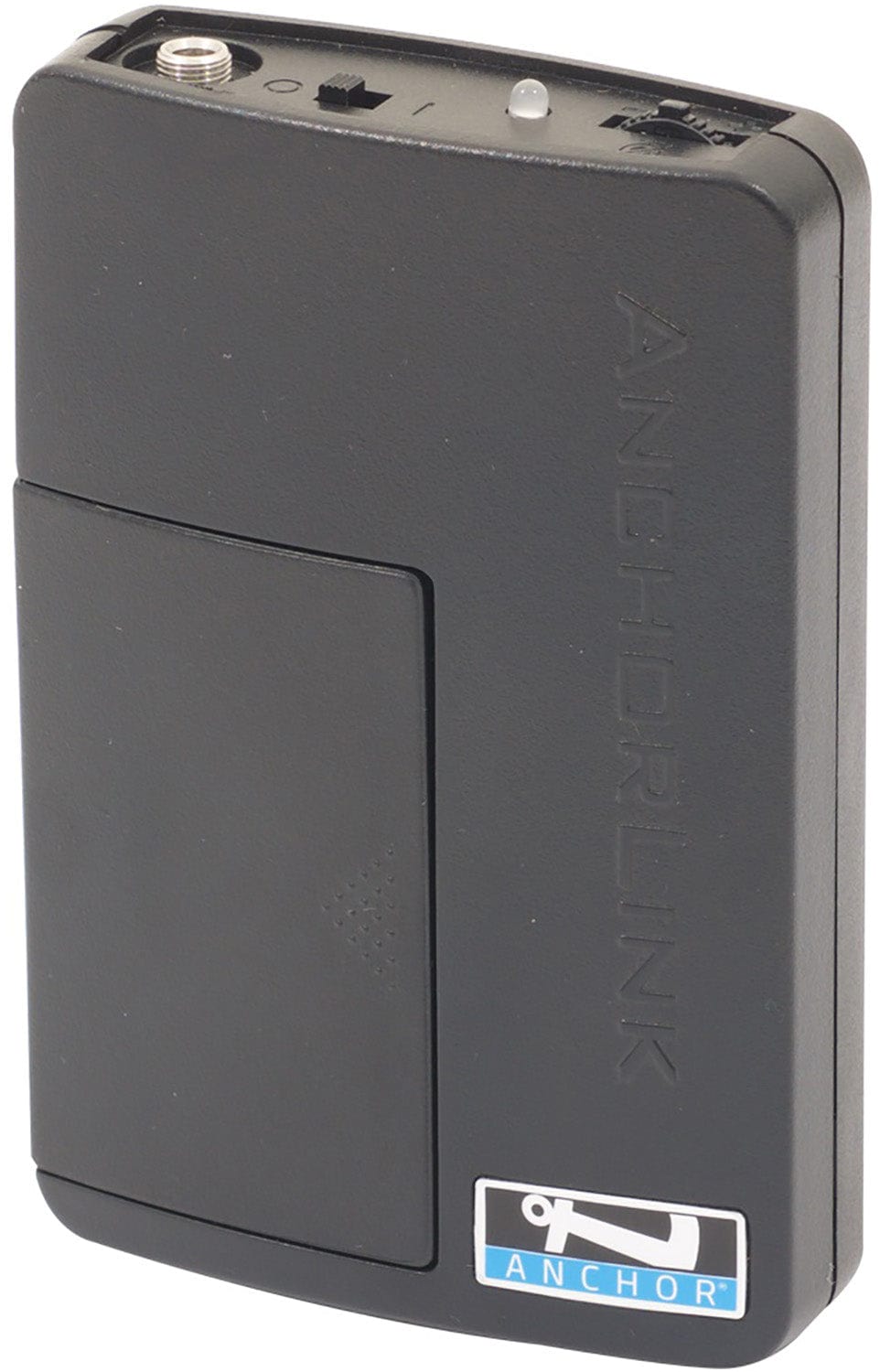

2x Anchor Audio Wireless Belt Pack
The Anchor Audio WB-LINK is a wireless bodypack transmitter designed for use with sound and PA systems that feature AnchorLink Series receivers. Operating in the less-crowded 1.9 GHz frequency range, it utilizes automatic frequency hopping to ensure a clear, interference-free signal with a transmission range of up to 300 feet.
1x Anchor Audio SS-550 Heavy Duty Speaker Stand
The SS-550 Heavy-duty Speaker Stand is specifically designed for the Liberty 3 PA speaker. It features adjustable leg width and height, making it ideal for a wide range of live sound applications. Built for stability and durability, this stand ensures secure and optimal speaker placement in various settings.
Features:
- Anchor Audio LIB2-XU4 Liberty 2 PA with Bluetooth:
- Reaches Crowds of up to 1500 People
- Integrated Pole Mount & Carry Handle
- Built-In Bluetooth Receiver
- AIR Wireless Transmitter
- Two Dual Wireless Mic Receivers
- 125W of Rated Output Power
- 10" Woofer & Ceramic Compression Driver
- Integrated Mixer & 2-Band Equalizer
- Built-In Rechargeable Batteries
- XLR, 1/4" & 3.5mm Inputs, 1/4" Output
- Anchor Audio WH-LINK Wireless Handheld Microphone:
- Classic Wireless Handheld Microphone
- For AnchorLink-Equipped PA Systems
- Volume and Mute Controls
- One-Time Pair Function
- Up to 8 Hours of Operation
- 1.9 GHz Wireless Frequency Range
- Automatic Frequency Hopping
- Lightweight Design
- Powered via 2 x AA Batteries
- Anchor Audio Lapel Microphone Element for WB-Link:
- For Hands-Free Presentations
- Clips to Clothing
- Use with WB-LINK Beltpack Transmitter
- Polar Pattern: Cardioid
- Connector: 3.5mm
- Includes Clip and Foam Windscreen
- Anchor Audio HBM-LINK Headband Microphone:
- For Hands-Free Presentations
- Use with WB-LINK Beltpack Transmitter
- Cardioid Polar Pattern
- 3.5mm Connector
- Anchor Audio Wireless Belt Pack:
- For AnchorLink-Equipped PA Systems
- 3.5mm Mic Input Connector
- Accepts Lavalier and Headset Mics
- Volume and Mute Controls
- One-Time Pair Function
- Up to 8 Hours of Operation
- 1.9 GHz Wireless Frequency Range
- Automatic Frequency Hopping
- Powered via 2 x AA Batteries
- Includes Belt Clip
- Anchor Audio SS-550 Heavy Duty Speaker Stand:
- Rock-solid, roadworthy construction
- Adjustable leg width and height for versatile setup
Specifications:
- Anchor Audio LIB2-XU4 Liberty 2 PA with Bluetooth:
- Portable PA System
- Amplifier Power Rating:
- 125 W (AC Power)
- 100 W (Battery Power)
- Speakers:
- HF Driver: 1x Compression Driver
- LF Driver: 1x 10" / 25.4 cm Woofer
- Magnet: Ceramic
- Performance:
- Frequency Response: 60 Hz to 15 kHz ±3 dB
- Maximum SPL: 117 dB
- Input Sensitivity:
- Lo-Z Mic Input: -52 dBV / 2.5 mVrms
- Hi-Z Mic Input: -43 dBV / 7.5 mVrms
- Aux Input: -14 dBV / 200 mVrms
- I/O Impedance:
- Hi-Z Input: 10 Kilohms
- Low-Z Input: 1 Kilohms
- Line Output: 600 Ohms
- Connectivity:
- Audio I/O:
- 2x Combo XLR-1/4" TRS Balanced Mic Input
- 1x 1/4" TS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Line Input
- 1x 1/4" TRS Balanced Line Output
- 1x speakON NL4 Speaker Output
- Phantom Power: +12 V
- Wireless:
- Wireless Transmission: 1.9 GHz
- Max Wireless Range: 300' / 91.4 m (Line of Sight)
- RF Frequency Band: 902 to 928 MHz
- Bluetooth Power Class: 1
- Power:
- Battery Type: 2x Built-In Rechargeable 12 V Lithium-Ion
- Approximate Battery Life: 8 Hours
- Internal Battery Capacity: 7 Ah
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Power Consumption: 250 W (Max)
- Physical:
- Environmental Resistance: No
- Dimensions: 23 x 14 x 11.5" / 58.4 x 35.6 x 29.2 cm
- Weight: 28 lb / 12.7 kg
- Anchor Audio WH-LINK Wireless Handheld Microphone:
- Frequency Band: 1.9 GHz
- Wireless Range: 300' / 91 m (Line of Sight)
- Controls:
- Volume
- Mute
- Power:
- 2 x AA batteries
- Operates up to 8 hours
- Anchor Audio Lapel Microphone Element for WB-Link:
- Polar Pattern: Cardioid
- Connector: 1/8" / 3.5 mm
- Anchor Audio HBM-LINK Headband Microphone:
- Polar Pattern: Cardioid
- Frequency Response: 100 Hz to 18 kHz
- Sensitivity: -84 dB ±3 dB
- Connector: 1/8" / 3.5 mm
- Cable Length: 4.0' / 1.2 m
- Anchor Audio Wireless Belt Pack:
- Frequency Band: 1.9 GHz
- Wireless Range: 300' / 91 m, line of sight
- Input Connector: 1/8" / 3.5 mm
- Controls:
- Volume
- Mute
- Power:
- 2 x AA batteries
- Operates up to 8 hours
- Anchor Audio SS-550 Heavy Duty Speaker Stand:
- Construction: Heavy-duty, durable build
- Adjustability: Leg width and height
