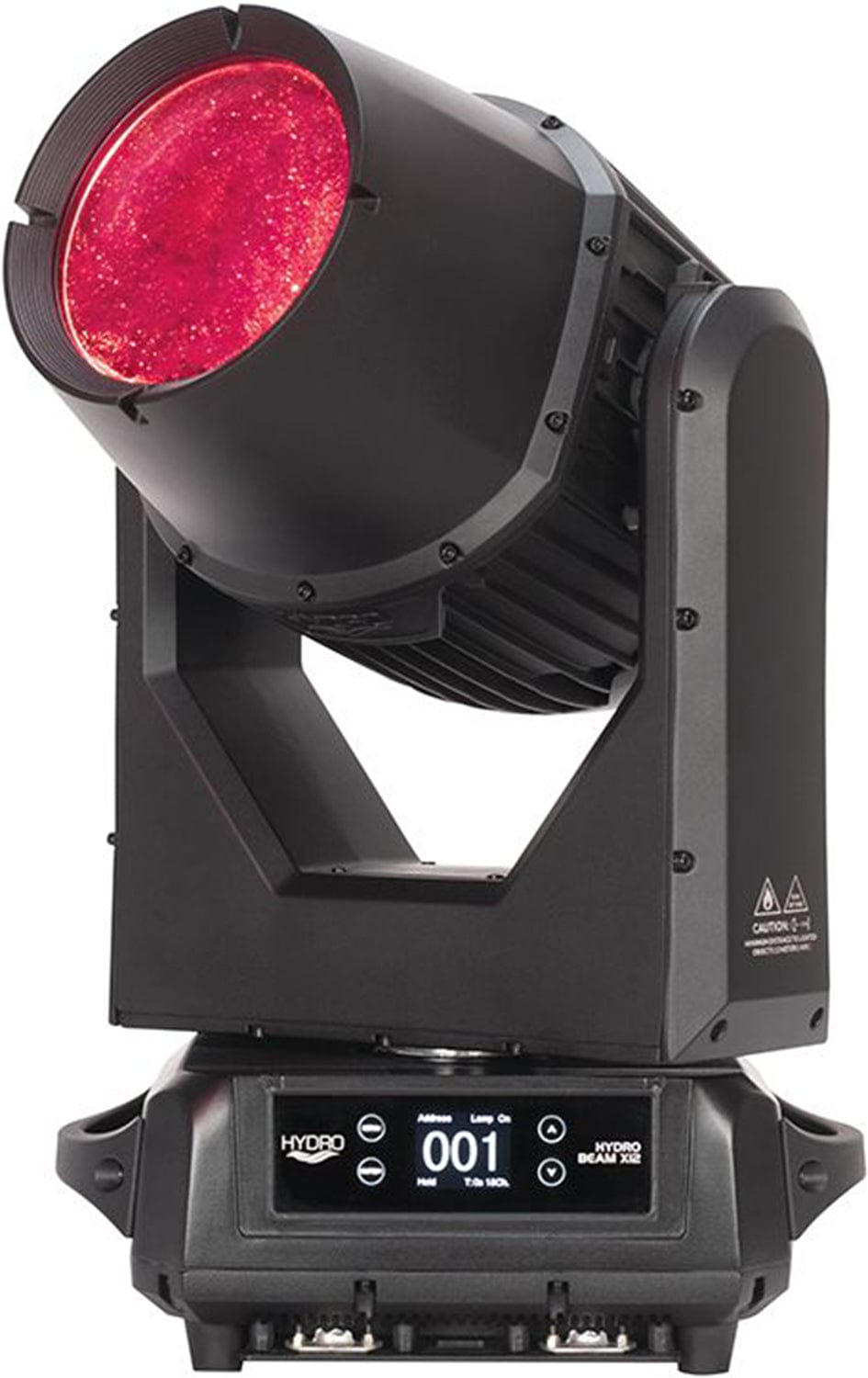

American DJ HYDRO BEAM X12 IP65 260 Watt Discharge Lamp Moving Head Light
Designed to create stunning aerial effects both inside and outdoors, the ADJ Hydro Beam X12 is a powerful and feature-packed moving head beam fixture with an IP65 ‘outdoor’ rating. Harnessing the power of the latest Philips® Platinum 12R LL MSD Discharge Lamp technology, focused through high quality optics, it creates a piercing beam of light with a tight 2-degree beam angle.
Features:
- DMX512 & RDM compatible
- 2° beam angle
- High quality, optical glass lens
- Motorized Focus + 16-bit fine focus
- Frost Filter to create wash effect
- 2 Rotating prisms: 6-facet Linear and 24-facet Circular
- 0-100% smooth dimming
- Various strobe effects with speed control
- USB firmware update port
- Fan cooled
Specifications:
- Light Source:
- Philips, 260W, MSD Platinum 12R LL Discharge Lamp (6,000 hours)
- Color temperature: 7800K
- LUX: 522,000 @10M
- Color Wheel:
- 14 dichroic colors + white
- Includes CTO (3200K), CTB (6000K) & UV
- Split Colors
- Bidirectional color wheel scrolling
- GOBO Wheel:
- 16 static GOBOs + open (4 GOBOs are beam reducers)
- GOBO Shake Effect
- Bidirectional gobo wheel scrolling
- Prisms:
- 6-facet linear and 24-facet circular
- Bidirectional prism rotation for each prism
- Prisms can be overlayed
- Control:
- Configurable via RDM
- Controllable via DMX512
- 2 DMX Channel Modes: 14/18 Channels
- Color LCD display with 4-button function menu
- 5 Dimmer Curves
- 0-100% smooth dimming
- Various strobe effects with speed control
- USB firmware update port
- With Wired Digital Communication Network
- Pan/Tilt:
- Pan: 540 degrees (plus 16-bit fine pan)
- Tilt: 270 degrees (plus 16-bit fine tilt)
- Connections:
- DMX Connections: 5-pin DMX In/Out
- Power Connections: IP65 rated power locking In/Out connections
- Electrical:
- Multi-voltage operation: 100-240V, 50/60Hz
- Max power consumption: 429W (@120V), 422W (@230V)
- Dimensions & Weight:
- Dimension: 14” (L) x 9.4” (W) x 24.2” (H) / 356 x 240 x 615.8mm
- Weight: 48 lbs. / 21.8 kg.
- Light Source:
- Philips, 260W, MSD Platinum 12R LL Discharge Lamp (6,000 hours)
- Color temperature: 7800K
- LUX: 522,000 @10M
- Color Wheel:
- 14 dichroic colors + white
- Includes CTO (3200K), CTB (6000K) & UV
- Split Colors
- Bidirectional color wheel scrolling
- GOBO Wheel:
- 16 static GOBOs + open (4 GOBOs are beam reducers)
- GOBO Shake Effect
- Bidirectional gobo wheel scrolling
- Prisms:
- 6-facet linear and 24-facet circular
- Bidirectional prism rotation for each prism
- Prisms can be overlayed
- Control:
- Configurable via RDM
- Controllable via DMX512
- 2 DMX Channel Modes: 14/18 Channels
- Color LCD display with 4-button function menu
- 5 Dimmer Curves
- 0-100% smooth dimming
- Various strobe effects with speed control
- USB firmware update port
- With Wired Digital Communication Network
- Pan/Tilt:
- Pan: 540 degrees (plus 16-bit fine pan)
- Tilt: 270 degrees (plus 16-bit fine tilt)
- Connections:
- DMX Connections: 5-pin DMX In/Out
- Power Connections: IP65 rated power locking In/Out connections
- Electrical:
- Multi-voltage operation: 100-240V, 50/60Hz
- Max power consumption: 429W (@120V), 422W (@230V)
- Dimensions & Weight:
- Dimension: 14” (L) x 9.4” (W) x 24.2” (H) / 356 x 240 x 615.8mm
- Weight: 48 lbs. / 21.8 kg.
