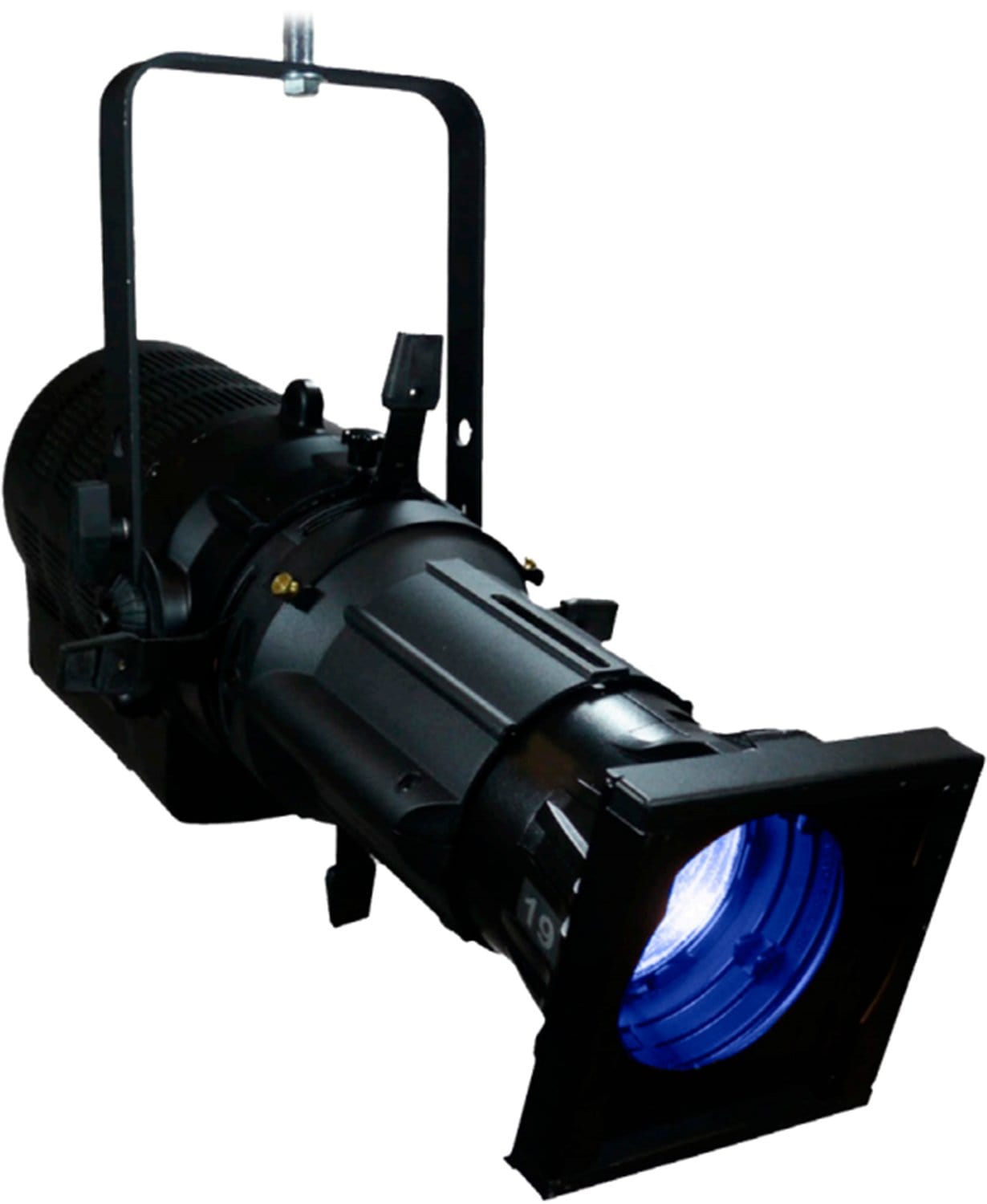

Altman PHX 3 19-Degree LED Profile Spot RGBL Ellipsoidal
The 19° fixed focus PHX 3 LED ellipsoidals are state of the art luminaires in function, style, and efficiency. These ellipsoidals have been designed and engineered with a number of innovative details and features enhancing versatility and efficiency without sacrificing performance. PHX 3 is a 340 Watt (RGBL) Red, Green, Blue, and Lime Profile Spot outputting just over 10,000 Lumens which makes it a true front of house luminaire. A 360° rotating barrel and fully locking shutters help you keep the artistic part of your fixtures’ focus intact with virtually no light leak. The aesthetic appearance and ergonomically designed function controls only add to the appeal of the Phoenix3. These new and innovative options are what makes the PHX LED ellipsoidals ideal for theaters, special events, television studios, or wherever superior, energy efficient lighting performance is required.
Features:
- 360-degree rotating barrel
- >10,000 output lumens BrightAF engine
- Heat resistant Plano-Convex lensing
- Die-cast aluminum and sheet metal fabrication
- Color frame, C-Clamp, soft focus pattern holder, safety cable and 5 foot PowerCON included
- PowerCON in and out for daisy-chaining units - Up to 5 fixtures (20A Max) may be linked
- Available standard in Black or White
- Positive locking double-clutch fixture body
- Wide accessory slot with sliding cover for motorized pattern devices or optional iris
- Yoke made from rigid flat steel with dual locking handles, two mounting positions and indexed tilt angle markings
- DMX512 in/thru via 5-pin XLR connector
- Multiple on-board control options: color fades and strobes
- Console free stand alone Player Mode
- 8-bit or 16-bit virtual dimming engine provides smooth, high quality fades and minimizes color shift during dimming
- User friendly control interface
- Carries standard 5 year plus 1 day Altman Warranty
- 26.55 lbs. (12.02 kg.)
- cETLus listed and CE marked (IP20 Rated for indoor use)
- Assembled in the USA
Specifications:
- Materials: Corrosion-resistant materials and hardware
- Control: DMX/RDM
- Light Engine: 85 RGBL LED Array
- Beam Lumens: >10,000 - See photometrics
- Rated LED Life: Array rating >50,000 hours to L70
- Input Voltage: 100-240 VAC 50/60 Hz
- Watts: 340
- Current Draw: 2.83A at 120VAC / 1.47A at 230VAC
- Quiescent Load: 0.087 AMP (10.54 Watts) @ 120 VAC*, 0.045 AMP (10.54 Watts) @ 240 VAC*, *Fan and display off
- Power Factor: ≥ 0.95
- Power Through: Up to 5 Units at 120VAC*, Up to 10 units at 230 VAC*, * Recommended Power linking of units via powercon connection.
- LED Engine Cooling: Active with progressive output management.
- Environment: 0 - 50°C (32 - 122°F) with humidity of 5-95% non-condensing)
- Weight: 26.55 lbs. (12.04 kgs.)
- Body Color: Black or White
- Compliance: cETLus listed for indoor use and CE marked
- Materials: Corrosion-resistant materials and hardware
- Control: DMX/RDM
- Light Engine: 85 RGBL LED Array
- Beam Lumens: >10,000 - See photometrics
- Rated LED Life: Array rating >50,000 hours to L70
- Input Voltage: 100-240 VAC 50/60 Hz
- Watts: 340
- Current Draw: 2.83A at 120VAC / 1.47A at 230VAC
- Quiescent Load: 0.087 AMP (10.54 Watts) @ 120 VAC*, 0.045 AMP (10.54 Watts) @ 240 VAC*, *Fan and display off
- Power Factor: ≥ 0.95
- Power Through: Up to 5 Units at 120VAC*, Up to 10 units at 230 VAC*, * Recommended Power linking of units via powercon connection.
- LED Engine Cooling: Active with progressive output management.
- Environment: 0 - 50°C (32 - 122°F) with humidity of 5-95% non-condensing)
- Weight: 26.55 lbs. (12.04 kgs.)
- Body Color: Black or White
- Compliance: cETLus listed for indoor use and CE marked
