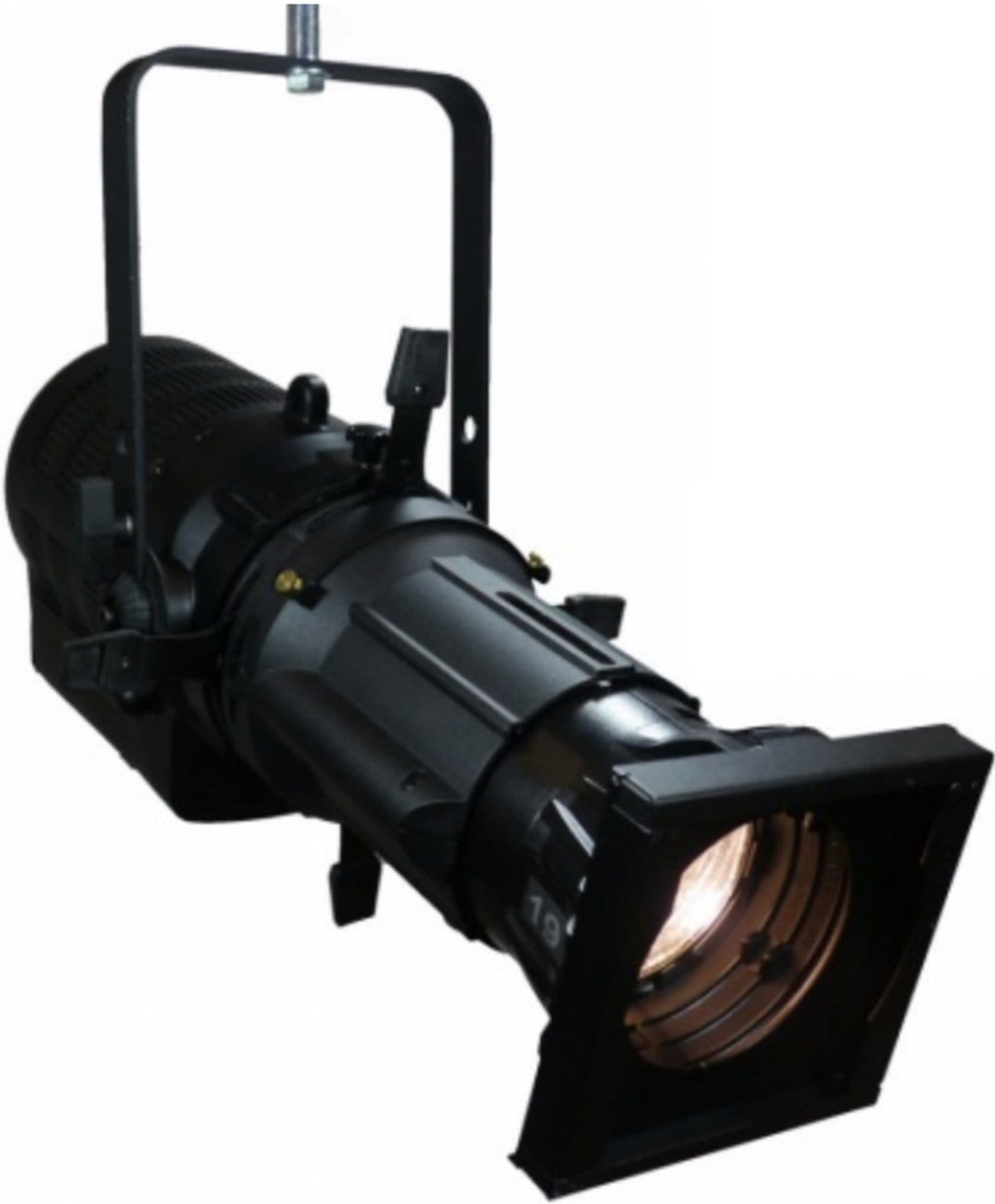

Altman PHX 1 LED Profilespot 10-Degree RGBA Ellipsoidal

Altman PHX 1 LED Profilespot 10-Degree RGBA Ellipsoidal

The 10° fixed focus PHX 1 LED profiles are state of the art luminaires in function, style, and efficiency. These profiles have been designed and engineered with a number of innovative details and features enhancing versatility and efficiency without sacrificing performance. The PHX1 is the only silent and solid-state LED profile specifically made for the production lighting and theatrical market. This makes the PHX1 ideal for use in concert halls, recording studios, small venues or wherever ambient noise is a concern. Fully locking shutters and a 360° rotating barrel help keep the artistic part of your fixture's focus intact and easy to attain, with virtually no light leak. The aesthetic appearance and ergonomically designed function controls only add to the appeal.

Features:

• 360-degree rotating barrel
• Heat resistant Plano-Convex lensing
• Die-cast aluminum and sheet metal fabrication
• Color frame, C-Clamp, soft-focus pattern holder, safety cable and 5 foot PowerCON included
• PowerCON in and out for daisy-chaining units
• Available standard in Black or White
• Positive locking double-clutch fixture body
• Wide accessory slot with sliding cover for motorized pattern devices or optional iris
• Yoke made from rigid flat steel with dual locking handles, two mounting positions and indexed tilt angle markings
• DMX512 in/thru via 5-pin XLR connector
• Multiple on-board control options: color fades and strobes
• Console free stand-alone Player Mode
• 8-bit or 16-bit virtual dimming engine provides smooth, high quality fades and minimizes color shift during dimming
• User-friendly control interface
• 25.5 lbs. (11.56 kg.)
• cETLus listed and CE marked (IP20 Rated for indoor use)
• Assembled in the USA

Specifications:

• Materials: Corrosion-resistant materials and hardware
• Control: DMX/RDM
• Light Engine: Available in RGBA, RGBW, 3000K, 5600K, and 3000K/5600K (Tunable White)
• Beam Lumens: See photometrics
• CRI (3K): 94
• CQS (3k): 92
• TM-30-15 Rf (3k): 91
• TM-30-15 Rg (3k): 98
• Rated LED Life: Array rating >50,000 hours to L70
• Input Voltage: 100-240 VAC 50/60 Hz
• Watts: 150
• Current Draw: 1.25A at 120VAC / 0..65A at 230VAC
• LED Engine Cooling: Convection, solid-state heat sink
• Environment: 0 - 40°C (32 - 104°F) with humidity of 5-95% non-condensing)
• Weight: 25.5 lbs. (12.81 kgs.)
• Body Color: Black or White
• Compliance: cETLus listed for indoor use and CE marked
