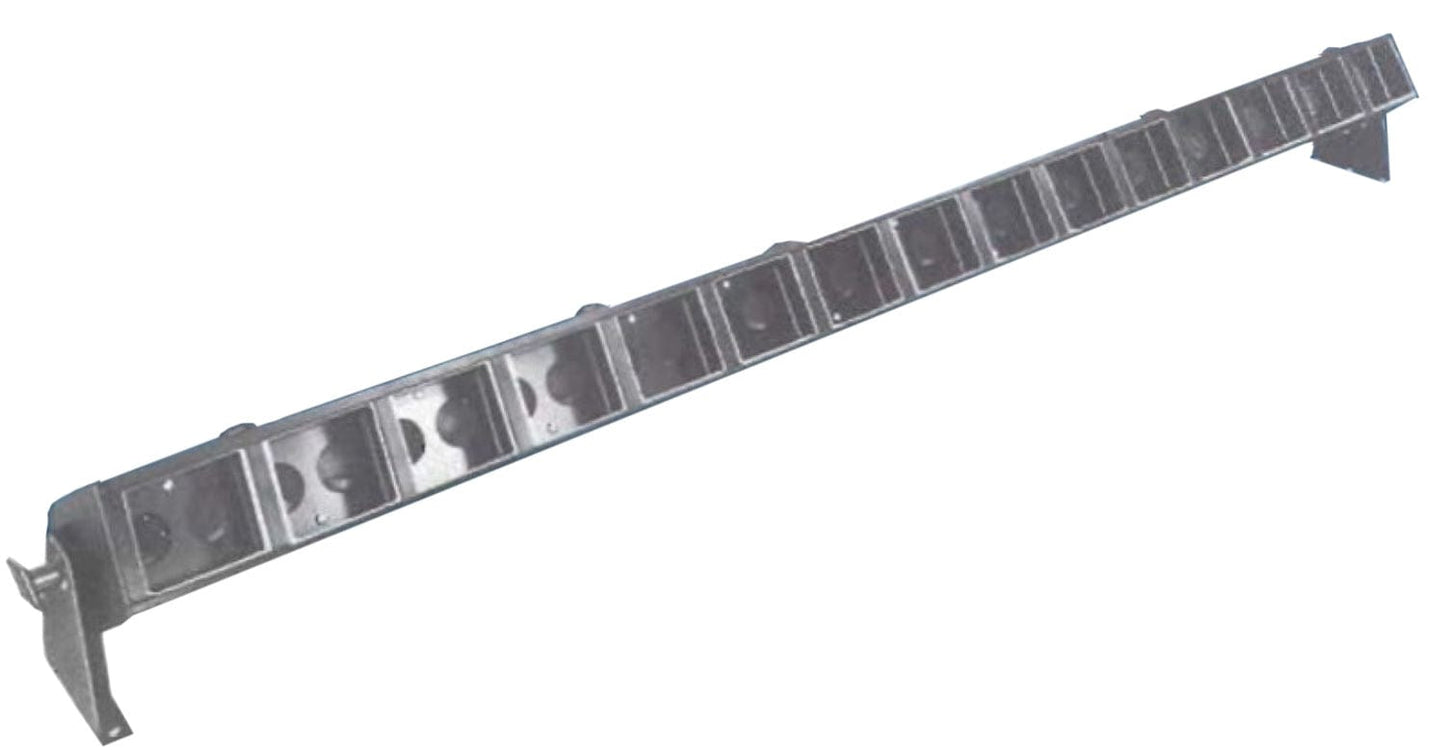

Altman Lighting 30-Lamp Linear Zip Strip Light
The Zip Strip is a U.L. listed multi-lamp striplight using a wide range of 12 volt MR-16 tungsten halogen lamps. This luminaire is manufactured of die-cast, extruded and sheet aluminum in four standard lengths. These lengths are related to the number of color washes desired. Narrow spot, medium and wide flood lamps are efficiently incorporated into the Zip Strip without trapping appreciable light from these lamps. Since 10 lamps operate in series for each color circuit, lamp failure is noted by neon indicator lamps. Spring loaded lamp holders with push-on sockets provide secure positioning of the lamps to hold them in place while touring. This narrow luminaire allows it to be used on closely spaced battens or in tight spaces where a general wash of light from the top, side or bottom is desired
Features:
- Rugged lightweight die-cast, extruded, and sheet aluminum construction
- Spring loaded lamp holder and push-on 2 pin socket
- Neon indicator lamps to identify lamp failure
- Large lamp ports to minimize light trapping
- Compartmented for color separation
- Uses wide variety of MR-16 lamps
- Narrow profile
- Multiple circuit units have 36" feed through lead wires per circuit
- Safety screen provided
- Color frames and safety cable included
- U.L., c.U.L., and CE listed for 750 watts per circuit
- Made in the USA
Specifications:
- Housing: Die-cast extruded, and sheet aluminum construction.
- Materials: Construction employs all corrosion-resistant materials and hardware.
- Socket: GX5.3, with heat shield.
- Rating: 120/240 volts AC/DC operation, 6.3/3.1 amps per circuit, 750 watts per circuit maximum. 75 watt maximum lamps. Note: 240 volt units require special wiring.
- Cable: 36" Teflon and/or silicone-fiberglass leads encased in black fiberglass sleeving. ZS-2, ZS-3, and ZS-4 are feed through wired.
- Access Door: Hinged, can be opened without use of tools.
- Safety Screens: Stainless steel.
- Accessories: Each pair of lamps accepts one color frame.
- Trunnions: Rigid 16 gauge steel, double trunnions for supporting two fixtures optional.
- Finish: Baked black enamel.
- Weight:
- Approx; 15 lbs. (6.8 kg.) for ZS-1.
- Approx; 30 lbs. (13.5 kg.) for ZS-2.
- Approx; 45 lbs. (20.3 kg.) for ZS-3.
- Approx; 60 lbs. (27 kg.) for ZS-4
- Housing: Die-cast extruded, and sheet aluminum construction.
- Materials: Construction employs all corrosion-resistant materials and hardware.
- Socket: GX5.3, with heat shield.
- Rating: 120/240 volts AC/DC operation, 6.3/3.1 amps per circuit, 750 watts per circuit maximum. 75 watt maximum lamps. Note: 240 volt units require special wiring.
- Cable: 36" Teflon and/or silicone-fiberglass leads encased in black fiberglass sleeving. ZS-2, ZS-3, and ZS-4 are feed through wired.
- Access Door: Hinged, can be opened without use of tools.
- Safety Screens: Stainless steel.
- Accessories: Each pair of lamps accepts one color frame.
- Trunnions: Rigid 16 gauge steel, double trunnions for supporting two fixtures optional.
- Finish: Baked black enamel.
- Weight:
- Approx; 15 lbs. (6.8 kg.) for ZS-1.
- Approx; 30 lbs. (13.5 kg.) for ZS-2.
- Approx; 45 lbs. (20.3 kg.) for ZS-3.
- Approx; 60 lbs. (27 kg.) for ZS-4
