The EC-1 EconoCyc Delivers Even Wash (up to 2000 Watts)!
The EconoCyc is a lightweight, compact luminaire designed to provide an even wash of light on cycloramas and backdrops. This lighting instrument can also be used as a multi-purpose flood/fill light for stage and studio lighting applications. The EconoCyc has been designed and engineered with a number of innovative details and features that enhance its versatility, efficiency, and performance. Each compartment has a state of the art, highly polished and peened reflector. Another feature is the adjustable lampholders which allows the luminaire to accept T-3 to T-8 lamps of three different lengths:411/16'' (119 mm), 55/8'' (143 mm), and 69/16'' (167 mm).
The housing has a rugged slide bracket which allows multiple units to be safely locked together, including the Focusing Cyc (Altman catalog number FC-1) and others. The optional non-skid feet are height-adjustable and eliminate the need for floor trunnions for most ground row applications. A wide selection of yokes and other hanging hardware is also available to accommodate virtually all overhead mounting configurations.
Accessories (Included):- SC-36-BK: Safety Cable with Spring Clip
- FC-CF: Black hinged Color Frame (11.5 inch x 10.25 inch)
- 20-2087: Slide Bracket to Interconnect Units
- 300 to 2000-Watt ECONOCYC Ground and Sky Luminaire
- Rugged sheet-aluminum construction
- Broad, even light distribution
- Highly polished and peened reflector with exclusive heat sink to improve longevity
- Asymmetrical distribution for even cyclorama washes

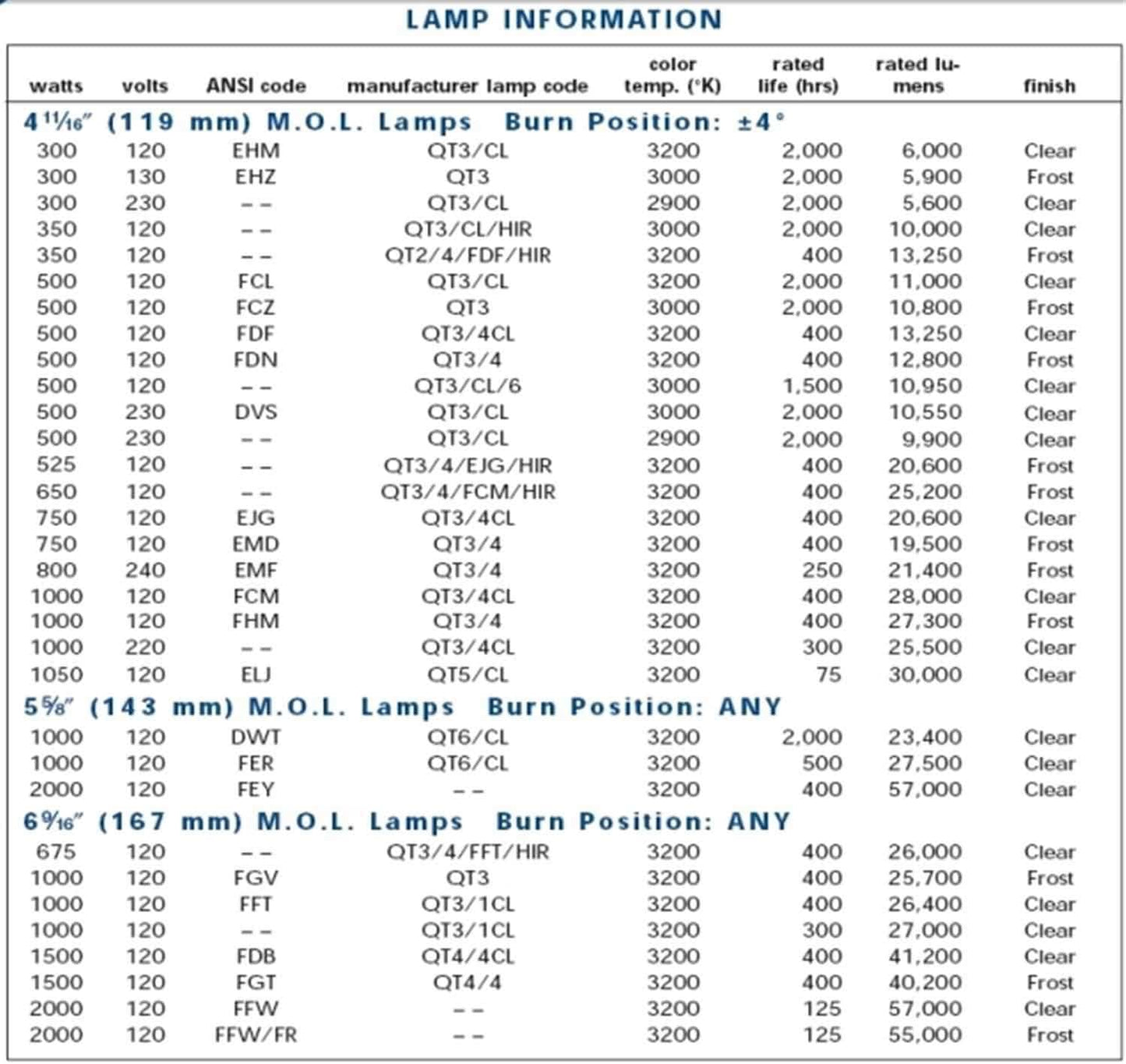

- Adjustable lampholders accepting T-3 to T-8 lamps of 411/16'', 55/8'', and 69/16''
- Strong slide bracket allows interconnection for multiple units in a variety of configurations, including the Focusing Cyc (FC-1) and others
- Multiple mounting and hanging configurations
- Strong, extra fine safety screen provided
- Color frame and safety cable included
- Three 36'' Hi-Temp lead wires
- Up to 25' of Hi-Temp rubber cable optional
- Accepting stripped glass color frames with optional holder
- U.L.-, c.U.L.- and CE-listed for 2000 watts
- Made in the U.S.A.
- FC-SGR Stripped Glass Color Frame Retainer
- 97-0175 Hardware Kit for side-mounting EC-1 to FC-1Y, FC-2Y, FC-3Y, FC-2X2Y,508, FT and CFT
- 510 Malleable Iron Pipe Clamp
- 20-0032 Single Hanging Arm without Pipe Clamp*
- 508 Hanging Arm with Pipe Clamp, pair*
- FT Floor Trunnion, pair*
- CFT Castered Floor Trunnion, pair*
- FC-1Y Single-Cell Yoke with 510 Pipe Clamp*
- FC-2Y Two-Cell Yoke with 510 Pipe Clamp*
- FC-3Y Three-Cell Yoke with 510HD Heavy Duty Pipe Clamp*
- FC-2X2Y Two-over-Two Cell Yoke with 510HD Heavy Duty Pipe Clamp*38-0149 Adjustable Non-Skid Foot (3 required per EC-1)
- 35-0017 Tool-Free Spring Latch to Interconnect Units (male and female)
