Albatros Audio TRUIE16 Distro 5A Press Split Signal Audio Distribution Amplifier

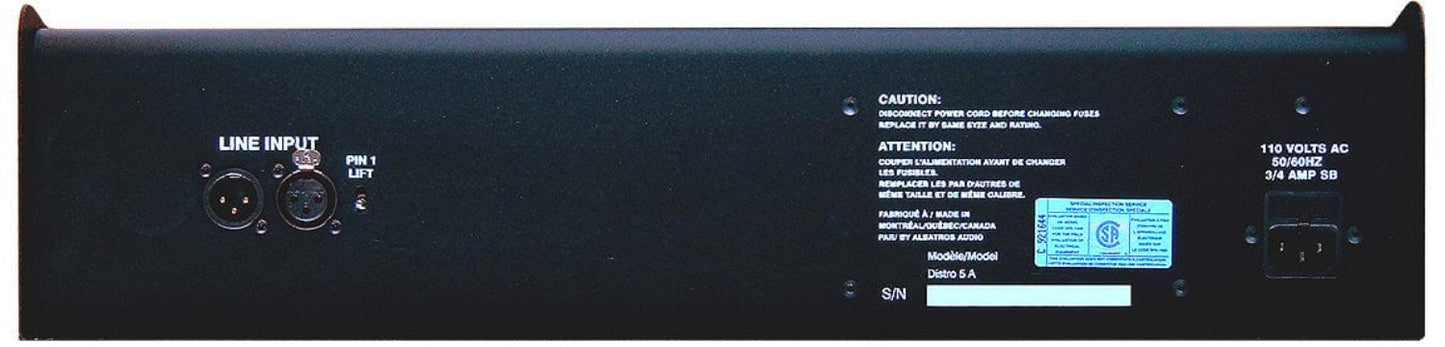

The DISTRO 5A audio distribution amplifier is designed to allow media to plug in and pick up a line-level or mic level sound signal. (See front panel). The source of this signal coming from a line-level mixing desk on the input. (See back panel). So only one microphone is visible in front of the speaker, providing a professional TV presentation.
SPECIFICATIONS
- Inputs
- Connector type XLR M/F
- Line level (max: +20db)
- Impedance 10k ohms
- Gain adjustable
- Pin 1 Lift
- 26 Outputs
- 16 XLR type connectors
- 4 connectors for stereo 1/4 jack
- 4 connectors for stereo 1/8 jack
- 2 RCA type connectors
- Pin 1 Lift on each output (except RCA)
- Impedance 600 ohms
- Level selection: Line + 4db / microphone - 50db
- Maximum level: +20 db
- Headphones: adjustable 1/4 stereo jack connector
- Other features:
- Analog VU indicator and BARGRAPH 10 LED
- Input/output selector for VU and headphones
- Frequency response: 20-20khz +/- 1db
- Pound caliber unit gain
- 16 gauge steel case
- Dimension: 19 X 10.75 inches X 4.5 (rear) X 3.25 (front)
- Universal power supply "Switching" mode (90-240 Volts AC 47-64 Hz)
- Electrical entry block with EMI filter and integrated fuse
- CSA Compliant
