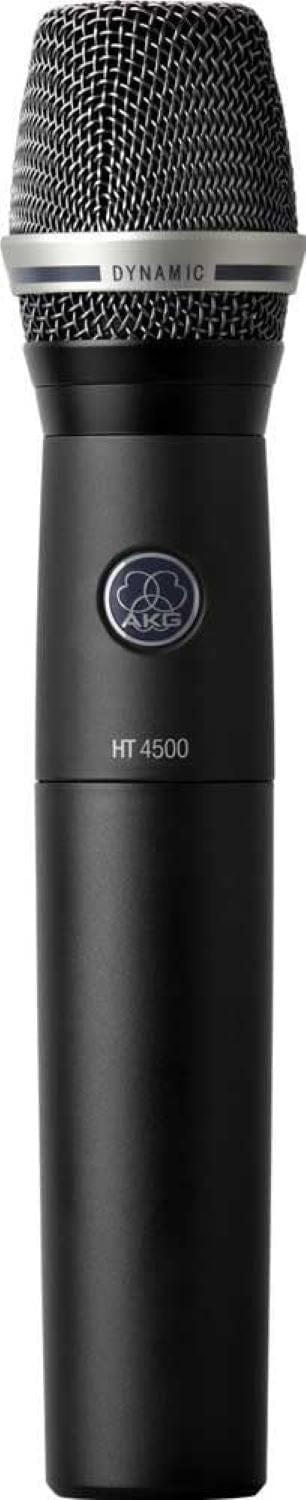

AKG HT4500 Reference Wireless Microphone Handheld Transmitter - Band 7
The HT4500 is an analog reference wireless handheld transmitter that connects to a choice of four different microphones to cover a wide range of applications. The unique dipole-antenna design ensures reliable transmission even when one pole of the antenna is covered completely by the user's hand. The pilot tone continuously sends transmitter data, including mute switch position and remaining battery life to the receiver. The HT4500 offers an extended battery lifetime of 15 hours with two standard AA alkaline batteries. With integrated charging contacts, the optional BP4000 battery pack can be charged inside the transmitter. The readout of its exact battery life in hours is a valuable advantage in wireless applications.
Features:
- Interchangeable microphone heads a variety of premium dynamic and condenser vocal microphones available
- Leading-edge dipole-antenna technology optimum performance even when the antenna is covered
- Up to 50mW transmission power maximum radio signal strength for long-distance applications
- 15 hours of battery life with two standard AA alkaline batteries
- Remaining battery lifetime in hours real-time display of the remaining operating time
Specifications:
- Audio:
- Audio frequency bandwidth: 35 to 20000 Hz
- Signal to Noise: 120 dB-A
- THD at 1 kHz: 0.3 Prozent
- Miscellaneous
- Operating temperature range: -10 to 55 Celsius
- Peak deviation: 48 kHz
- Radio:
- Switching bandwidth: 30 MHz
- Recommended simultaneous channels: 50
- Number of selectable frequencies: 1220 (selectable in 25kHz steps)
- Frequency Selection: Selectable frequency in 25kHz steps
- Wireless channels within device:
- Radio Range: 100m (depending on antenna system)
- Switchable RF Power: no
- Modulation: FM
- Encryption: No encryption
- Diversity: True Diversity
- Pilot Tone: yes
- Transmitter:
- Nominal deviation: 20 kHz kHz
- Radio Output Power (min/max): 10 to 50 mW
- Microphone head versions: C535 WL1
- Interchangeable Microphone Head: yes
- Transmitter Synchronization: Manual
- Battery 1:
- Battery type: LR6 AA alkaline battery
- Number of Batteries: 2
- Operating Time: 15 h
- Battery 2:
- Battery type: HR 6 AA (NiHM) rechargeable battery
- Compatible Charging System: CU4000
- Number of Batteries: 2
- Operating Time: 12 h
- Battery 3:
- Battery type: AKG BP 4000
- Compatible Charging System: CU4000
- Number of Batteries: 1
- Operating Time: 12 h
- Design:
- Body: Metal
- Finish: black
- Dimensions / Weight:
- Height: 247 mm
- Width: 51 mm
- Net Weight: 25 g
