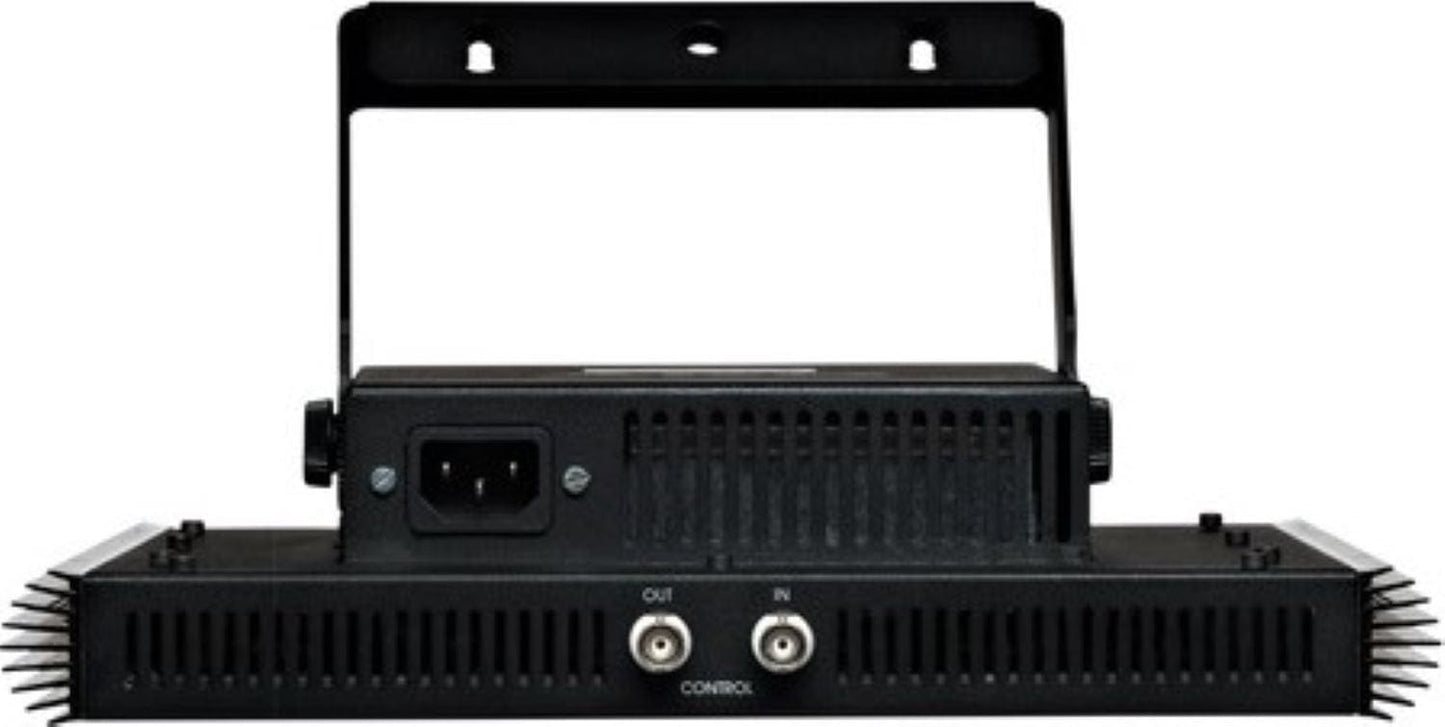

AKG CSX IRT4 10 Channel Infrared Transmitter - Plus or Minus 60-Degrees
The CSX IRT3 and CSX IRT4 are 10 channel infrared transmitter. Using digital PPM signal always all LED´s cover the same area and distance, regardless the number of channels needed in an application ensuring perfect coverage even with changing channel needs. The CSX IRT3 and 4 can be cascaded almost without limit due to a signal refresher built into all transmitters. Even very large areas can be covered. The transmitters are designed in a way that no cooling fans are needed – they act absolute quiet without any noise. Clearly visible LED´s indicate the status from the distance, providing highest security for the technician on site.
The CSX IRT4 is designed for near field use, e.g. in ceilings above the area to be covered. The radiation angle is +/-60° and the working distance up to 35m.
Features:
- Digital Transmission with PPM technology effective audio and radiation quality control – easy to install
- For CS5 or as standalone system works with all kind of analogue inputs
- Elegant Design with Status LED clearly displays the status
- Included signal refresher cascadable to cover large areas
- Mounting bar for wall or ceiling mount
- Two light characteristics – flood and spot light, to work from distance and near field
Specifications:
- System description: Infrared audio distribution system
- Color: Matte black
- Power supply: 100-240 volts (1.5A)
- System cable coax: 50 ohms (5V TTL)
- Wave length: 870nM
- Radiated power: 12,5 watts
- Radiation angle (-6dB): +/- 17° (60°)
- Effective distance: 65m (35m)
- Power consumption: 100 watts
- Switch on transient: max 2.5 A
- Height: 260mm
- Width: 280mm
- Depth: 70mm
- Weight: 4kg
- System description: Infrared audio distribution system
- Color: Matte black
- Power supply: 100-240 volts (1.5A)
- System cable coax: 50 ohms (5V TTL)
- Wave length: 870nM
- Radiated power: 12,5 watts
- Radiation angle (-6dB): +/- 17° (60°)
- Effective distance: 65m (35m)
- Power consumption: 100 watts
- Switch on transient: max 2.5 A
- Height: 260mm
- Width: 280mm
- Depth: 70mm
- Weight: 4kg
