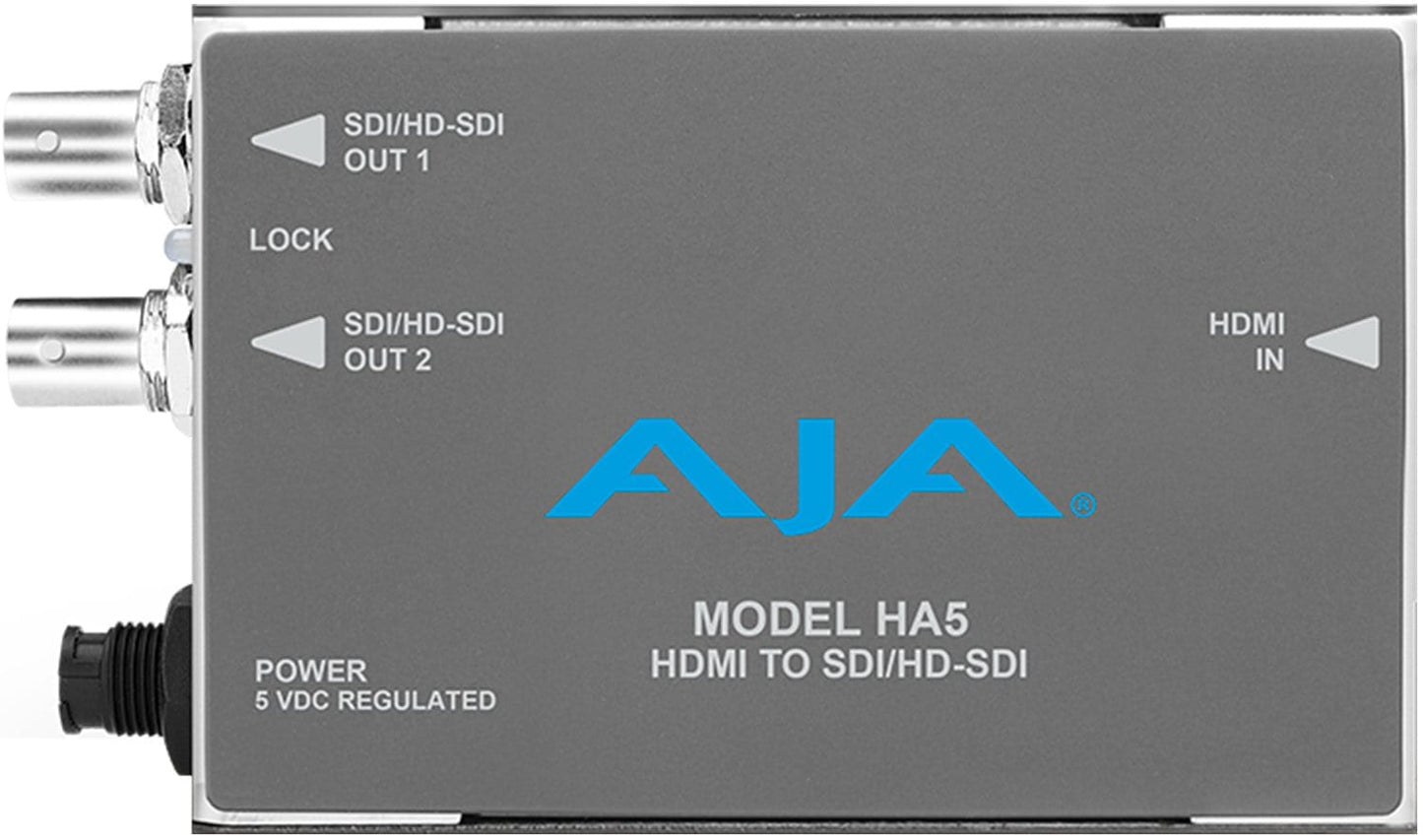

AJA HA5 Mini Video Converter
The HA5 converts HDMI to SDI or HD-SDI. Up to eight channels of HDMI audio are embedded into the SD/HD-SDI output allowing a convenient single cable audio/video connection. The HA5 provides two SD/HD-SDI outputs and supports long HDMI cables on the input. The HA5 is useful for connecting HDMI cameras to SD/HD-SDI equipment.
Features:
- Full HDMI support including embedded audio
- Equalized HDMI input supports long HDMI cables up to 40m
- PLL clock filtering for low jitter SD/HD-SDI outputs
- Lock LED shows type of input source, SD (green) or HD (red)
- HDMI cable included
Specifications:
- Video Formats:
- (HD) 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1080i 50, 59.94, 60
- (HD) 720p 50, 59.94, 60
- (SD) 625i, 525i
- Input: HDMI with embedded audio
- Outputs: SMPTE-259/292/296 SDI/HD-SDI, 2 x BNC
- Size (w x d x h): 4.6" x 2.4" x 1" (117mm x 61mm x 25mm)
- Power: +5VDC Regulated, 4 watts, power supply required (included with purchase)
- Environment
- Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
- Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
