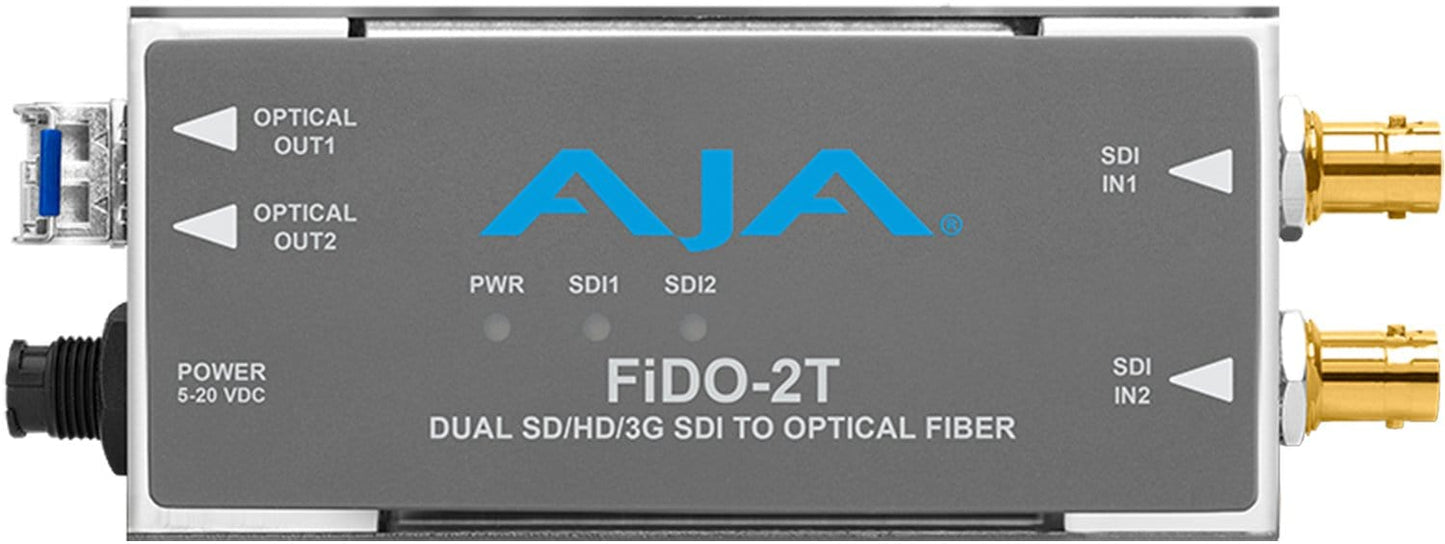

AJA FiDO-2T 2-Channel 3G-SDI to LC Fiber Transmitter

AJA FiDO-2T 2-Channel 3G-SDI to LC Fiber Transmitter

FiDO-2T offers unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) with electrical isolation - useful for eliminating ground loop problems. FiDO converters use a compact, low profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features:

• 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter
• Duplex connection (LC connector)
• Dual, independent 3G/HD/SD-SDI inputs
• Both SDI-to-Fiber paths are completely independent
• Uses 5-20VDC power (DWP-U-R1 universal power supply included)

Specifications:

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Video Input Digital: 2-Channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424
• Video Output Digital:
  • 2-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5dBm (min), 0dBm (max)
  • Extinction Ratio: 7.5dB (Typ)
• Reclock
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked
• Size (w x d x h): 4.6" x 1.71" x 0.85" (117 x 43.5 x 21.6mm)
• Weight: 0.5 lb (0.3 kg)
• Power:
  • 3 watts max
  • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
• Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
