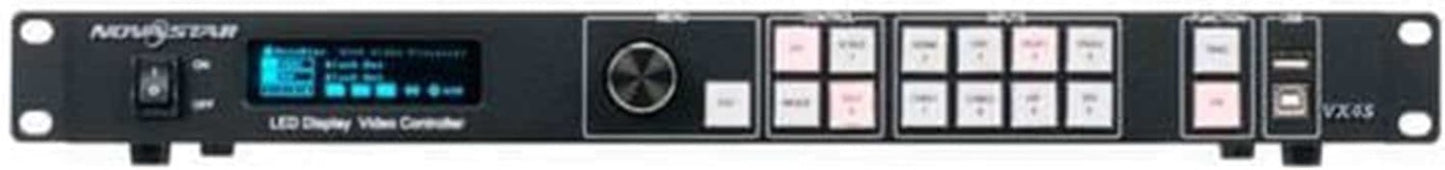

ADJ VX4014 Video Processor
VX4S-N is a professional and user friendly LED display controller and a powerful front end processor that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / SDI, and up to 1920 x 1200p at 60Hz input resolution, includes 4 RJ45 outputs for up to 2.6 million pixels of LED control, and supports Nova's generation point-by-point correction technology. VX4S-N is compatible with all ADJ video panels.
Features:
- User Friendly LED Display Controller
- Powerful Front End Processor
- Up to 1920 x 1200 p at 60Hz Input Resolution
- Multiple Video Signal Format Support
- Generation Point-By-Point Correction Technology
- Cascade Multiple Units Together Via USB
- Rack Mountable Aluminum Enclosure (screws not included)
- Locking IEC Power Input
Specifications
-
Connections
- (1) RJ45 LAN for IP Based Control
- (4) RJ45 Outputs for up to 2.6 million Pixels of LED Control
- (2) USB Type A and (2) USB Type B Ports (1 set on each side)
- (1) 1/8 inch (3.5mm) Audio Input
-
Video Input
- (1) DP / (1) HDMI / (1) VGA / (1) DVI In+Loop / (1) CVBS / (1) 3G-SDI In+Loop Video Output
-
Electrical
- AC 100-240V - 50/60Hz - 0.65A
-
Max Power Consumption
- 16W
-
Connections
- (1) RJ45 LAN for IP Based Control
- (4) RJ45 Outputs for up to 2.6 million Pixels of LED Control
- (2) USB Type A and (2) USB Type B Ports (1 set on each side)
- (1) 1/8 inch (3.5mm) Audio Input
-
Video Input
- (1) DP / (1) HDMI / (1) VGA / (1) DVI In+Loop / (1) CVBS / (1) 3G-SDI In+Loop Video Output
-
Electrical
- AC 100-240V - 50/60Hz - 0.65A
-
Max Power Consumption
- 16W
