ADJ American DJ Profile Panel RGBA LED Color Panel Wash Light

ADJ American DJ Profile Panel RGBA LED Color Panel Wash Light

The ADJ Profile Panel RGBA is a compact indoor LED Color Panel powered by 288 10mm red, green, blue and amber LEDs. It may be used as a standard wash fixture, or run it in its built-in programs or sound active mode to create exciting multi-colored lightshows. With four DMX channel modes and six operational modes users get an unprecedented variety of control over the fixture The Profile Panel RGBA has built in programs, sound mode, master slave mode and a DMX mode.

The Profile Panel RGBA produces a 30-degree beam. A wider wash may be achieved by adding a light shaping filter into the slit on the side of the panel. It comes with a powerCON power cord, UC IR wireless remote and Airstream IR sensor inside the box. Being lightweight and compact in size, this fixture may be set it up anywhere indoors, the dual scissor yoke let you hang the fixture on truss or mount it on a wall. With extremely long life LEDs, low power consumption, and very low heat output, this fixture can all night with no duty cycle - plus little to no heat is emitted onto performers. Great for small performance stages, permanent installations or mobile entertainers.

What makes the Profile Panel RGBA better than the Profile Panel RGB?

• Brighter: Uses 10mm LEDs vs. 5mm LEDs
• More Colors: Uses RGBA (Red, Green, Blue & Amber LEDs vs. RGB only
• powerCON Power: Users can now daisy chain the power from one fixture to the next using the upgraded powerCON In/Out vs. just an IEC input
• Remote Included: Includes the UC IR wireless remote control vs. optional wired remote

Specifications:

• Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs - rated at 100,000 hrs.)
• Very smooth field with rich palettes of color created by mixing the Red, Green, Blue, & Amber LEDs
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Light Shaping Filter slot to widen beam angle (filter size: 210x375mm)
• Beam angle: 30-degrees
• 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs)
• Technical Features:
• Color strobe effect
• 4 DMX channel modes: 4, 7, 9 or 32
• Electronic Dimming: 0 - 100%
• Includes dual scissor yoke to hang on truss and built-in mounting brackets to hang on a wall
• Very low heat output
• Run all night – no duty cycle
• 3-pin DMX In/Out
• powerCON In/Out to Daisy Chain up to 20 fixtures Max @ 120V
• 4-button LED display on rear panel
• 6 Operational modes: Built-in programs, Sound mode, Static Color mode, Auto Run, RGBA Dimmer mode, & DMX mode
• Power Draw: 35W
• Multi-voltage operation: 100-240V, 50/60Hz
• Dimensions (LxWxH): 16.73" x 3.2" x 10.75" / 425x82x275mm
• Weight: 7.8 lbs. / 3.5 kgs.
• Metal black housing

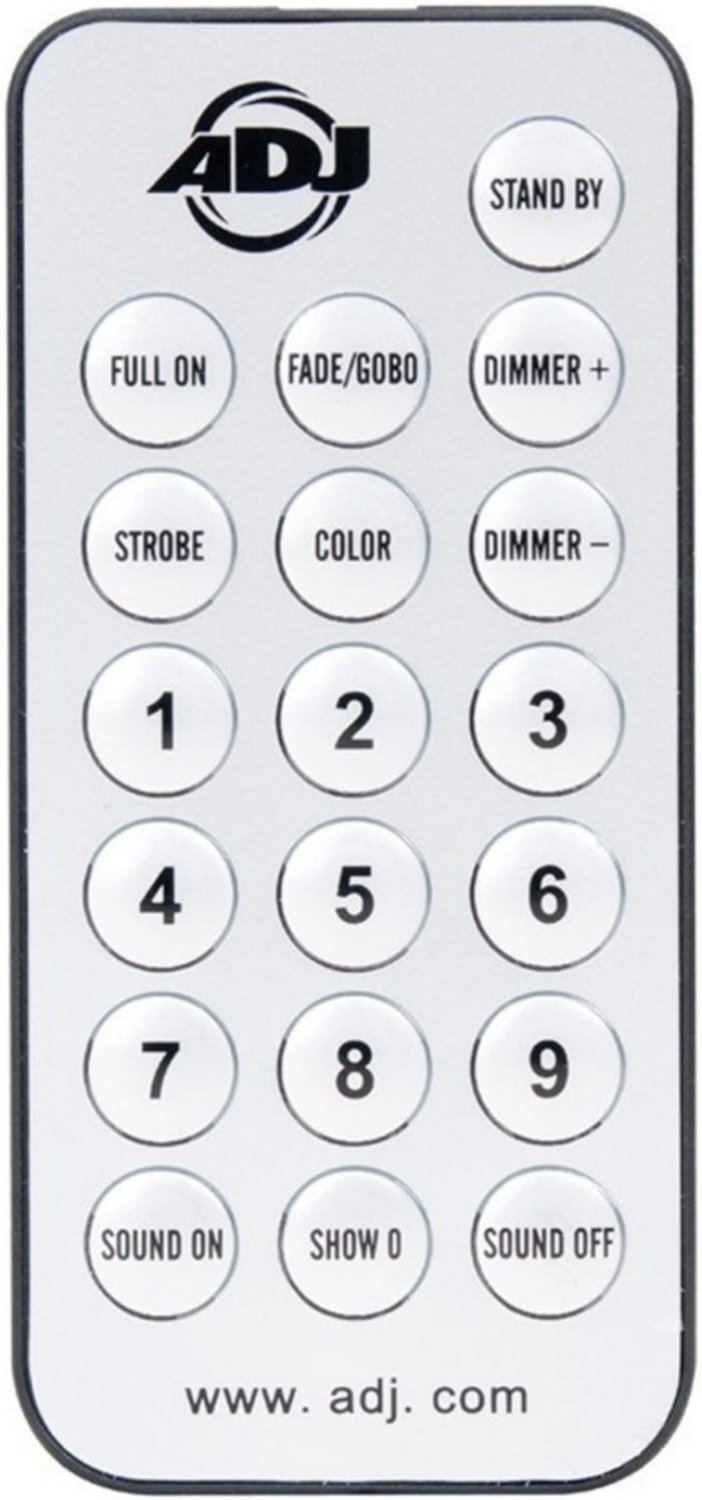

• What’s Included: UC IR wireless remote control, Airstream IR App transmitter (Airstream IR iOS APP compatible), powerCON power cord
